1988 Yamaha Excel III (EC340M) Frame Diagram

← All diagrams

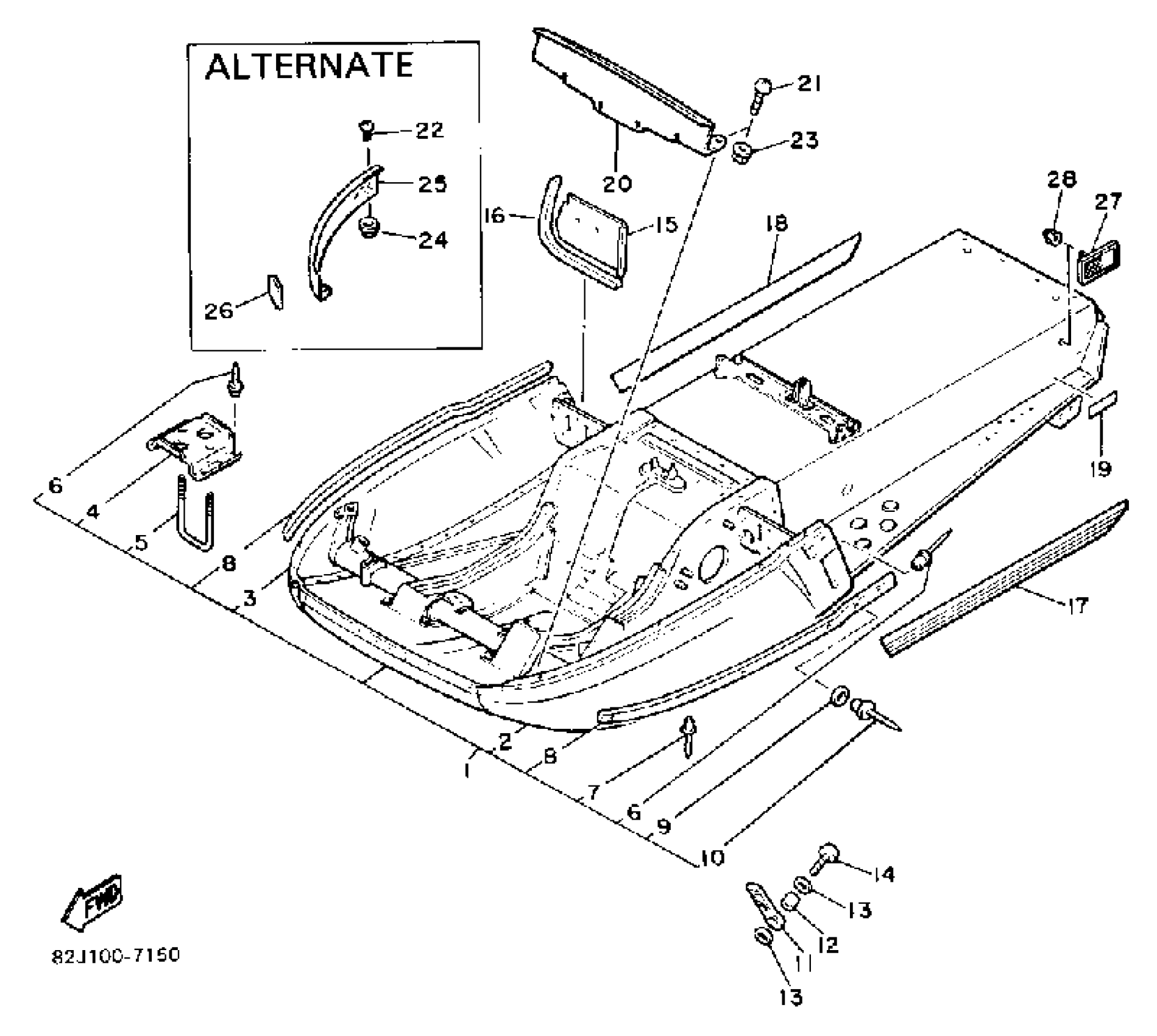

Find the part on the Frame diagram for your 1988 Yamaha Excel III (EC340M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Yamaha Excel III (EC340M) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP

84H-21910-01-00

1
Out of stock

2

. HOOD 1

84H-21982-00-00

1
Out of stock

3

. HOOD 2

84H-21983-00-00

1
Out of stock

4

. BRACKET, BATTERY

8W8-2199G-00-00

1
Out of stock

5

. SCREW, FITTING

8J4-82133-00-00

1
Out of stock

6

RIVET, BLIND (8H4)

90267-48053-00

1

$2.31

In stock

7

RIVET, BLIND (8J5)

90267-48057-00

1
Out of stock

8

. TRIM 1

8W6-2196T-00-00

1
Out of stock

9

WASHER, PLATE (8M6)

90201-047A2-00

1
Out of stock

10

RIVET,BLIND

90267-40080-00

1
Out of stock

11

BODY, LATCH 1

8M6-77171-00-00

1
Out of stock

12

COLLAR (420)

90387-06241-00

1

$6.18

In stock

13

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

14

SCREW, BINDING

98907-06025-00

1

$6.18

In stock

15

COVER 2

8Y2-2198G-00-00

1
Out of stock

16

SHIELD, NOISE

8Y2-2199F-00-00

1
Out of stock

17

EMBLEM 4

84H-77354-00-00

1
Out of stock

18

EMBLEM 5

84H-77355-00-00

1
Out of stock

19

INDICATOR 2

8K2-77742-00-00

1
Out of stock

20

COVER,1

85T-2198F-00-00

1
Out of stock

21

SCREW, BINDING

98907-06012-00

—
Out of stock

22

SCREW, BINDING

98907-06012-00

—
Out of stock

23

NUT, FLANGE(7NB)

95780-06500-00

—

$1.91

In stock

24

NUT, FLANGE(7NB)

95780-06500-00

—

$1.91

In stock

25

PROTECTOR 2

82H-77552-00-00

1
Out of stock

26

PROTECTOR 3

82H-77553-01-00

1
Out of stock

27

REAR REFLECTOR ASSY

3Y6-85130-02-00

1

$22.72

In stock

28

NUT, NYLON

95707-05300-00

—

$2.74

In stock
