1987 Yamaha Excel Iii (EC340L) Track Drive 2 Diagram

← All diagrams

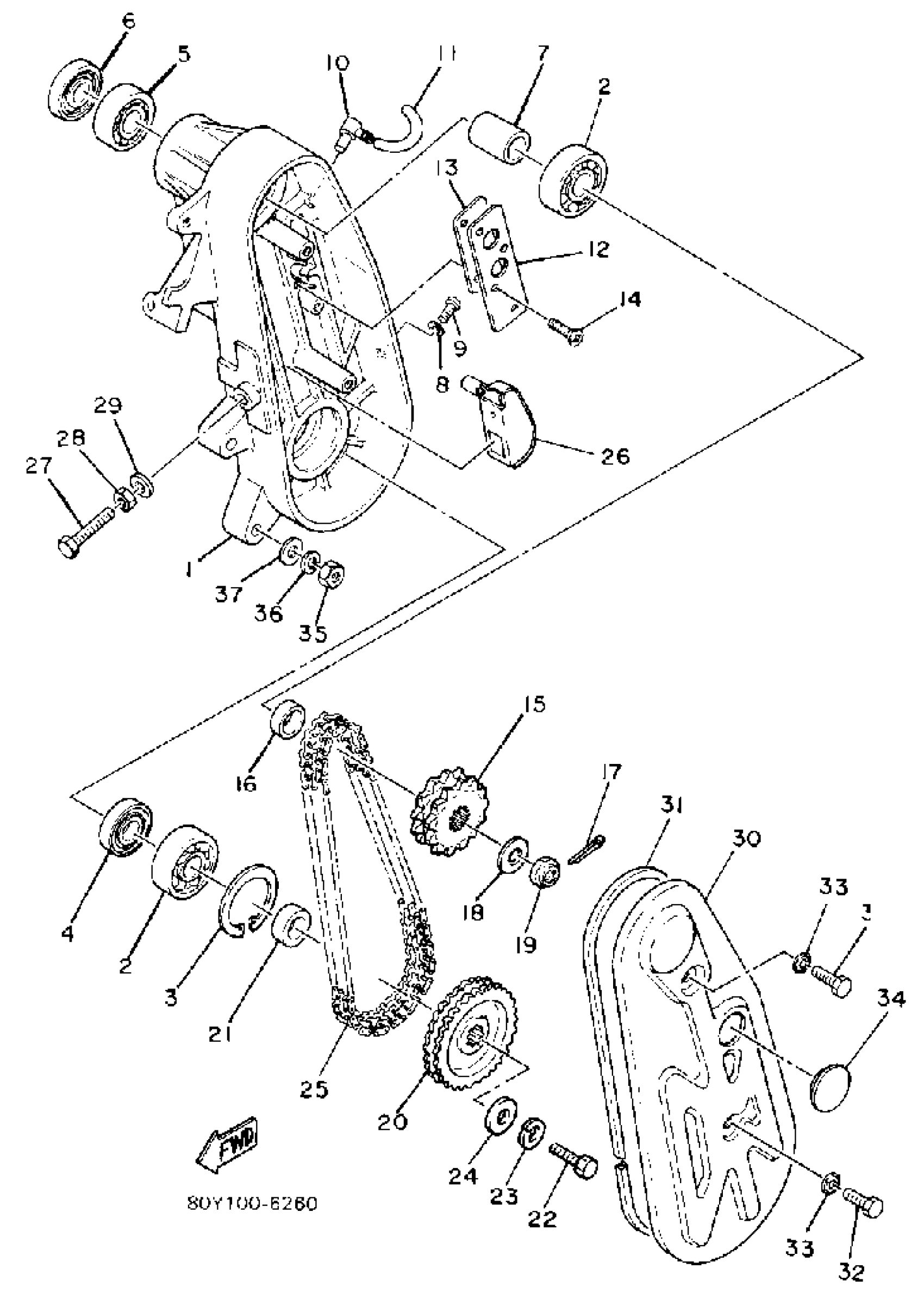

Find the part on the Track Drive 2 diagram for your 1987 Yamaha Excel Iii (EC340L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Yamaha Excel Iii (EC340L) Track Drive 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, CHAIN

8F3-47541-00-00

1
Out of stock

2

BRG,R-B 6304 52MM 144G NT

93306-30407-00

—
Out of stock

3

CIRCLIP(26H)

99009-52500-00

1
Out of stock

4

OIL SEAL(4BA)

93102-20447-00

1
Out of stock

5

BEARING(1GJ)

93306-20458-00

1
Out of stock

6

OIL SEAL (30X47X7-810)

93102-30083-00

1
Out of stock

7

COLLAR

90387-20580-00

1
Out of stock

8

GASKET 838153840000

90430-06016-00

1
Out of stock

9

BOLT,SOCKET

91317-06010-00

1
Out of stock

10

BREATHER

583-15371-00-00

1
Out of stock

11

HOSE (L420)

90445-092K1-00

1
Out of stock

12

PLATE

8G8-47591-00-00

1
Out of stock

13

GASKET

85T-47592-00-00

1
Out of stock

14

SCREW, FLAT

98707-05014-00

1
Out of stock

15

SPROCKET, CHAIN DRIVE (11T)

802-17682-20-00

1
Out of stock

15

SPRKT,CHAIN DR

806-17682-30-00

1
Out of stock

15

SPROCKET, CHAIN DRIVE (12T)

806-17682-20-00

1
Out of stock

15

SPROCKET, CHAIN DRIVE (14T)

806-17682-40-00

1
Out of stock

16

COLLAR

90387-19649-00

1
Out of stock

17

PIN, COTTER(6L5)

91490-25030-00

—
Out of stock

18

WASHER, PLATE (35T)

90201-122H1-00

—
Out of stock

19

NUT, SELF LOCKING (23X)

90185-12119-00

—
Out of stock

20

SPROCKET, CHN DRVN

8G8-47548-10-00

1
Out of stock

20

SPROCKET, CHN DRVN

8G8-47548-20-00

1
Out of stock

20

SPROCKET, CHN DRVN

8G8-47548-30-00

1
Out of stock

21

COLLAR

90387-20155-00

1
Out of stock

22

BOLT, HEXAGON

97017-08025-00

—
Out of stock

23

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

24

WASHER, PLATE (4W3)

90201-086A3-00

—
Out of stock

25

CHAIN 60L

94880-01060-00

1
Out of stock

26

TENSIONER

8G8-47611-00-00

—
Out of stock

27

BOLT, HEXAGON (8F3)

90101-10357-00

—
Out of stock

28

NUT (682)

95380-10700-00

1
Out of stock

29

WASHER SEAL 256111730200

90210-10004-00

—
Out of stock

30

CAP, HOUSING

8F3-47543-00-00

1
Out of stock

31

RING, HOUSING (97302-08020)

8F3-47558-00-00

1
Out of stock

32

BOLT, HEXAGON

97013-08020-00

—
Out of stock

33

WASHER (821)

90210-08002-00

—
Out of stock

34

CAP

148-22315-00-00

—
Out of stock

35

NUT(6L2)

95333-08600-00

—
Out of stock

36

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

37

WASHER, PLAIN

92990-08200-00

1
Out of stock
