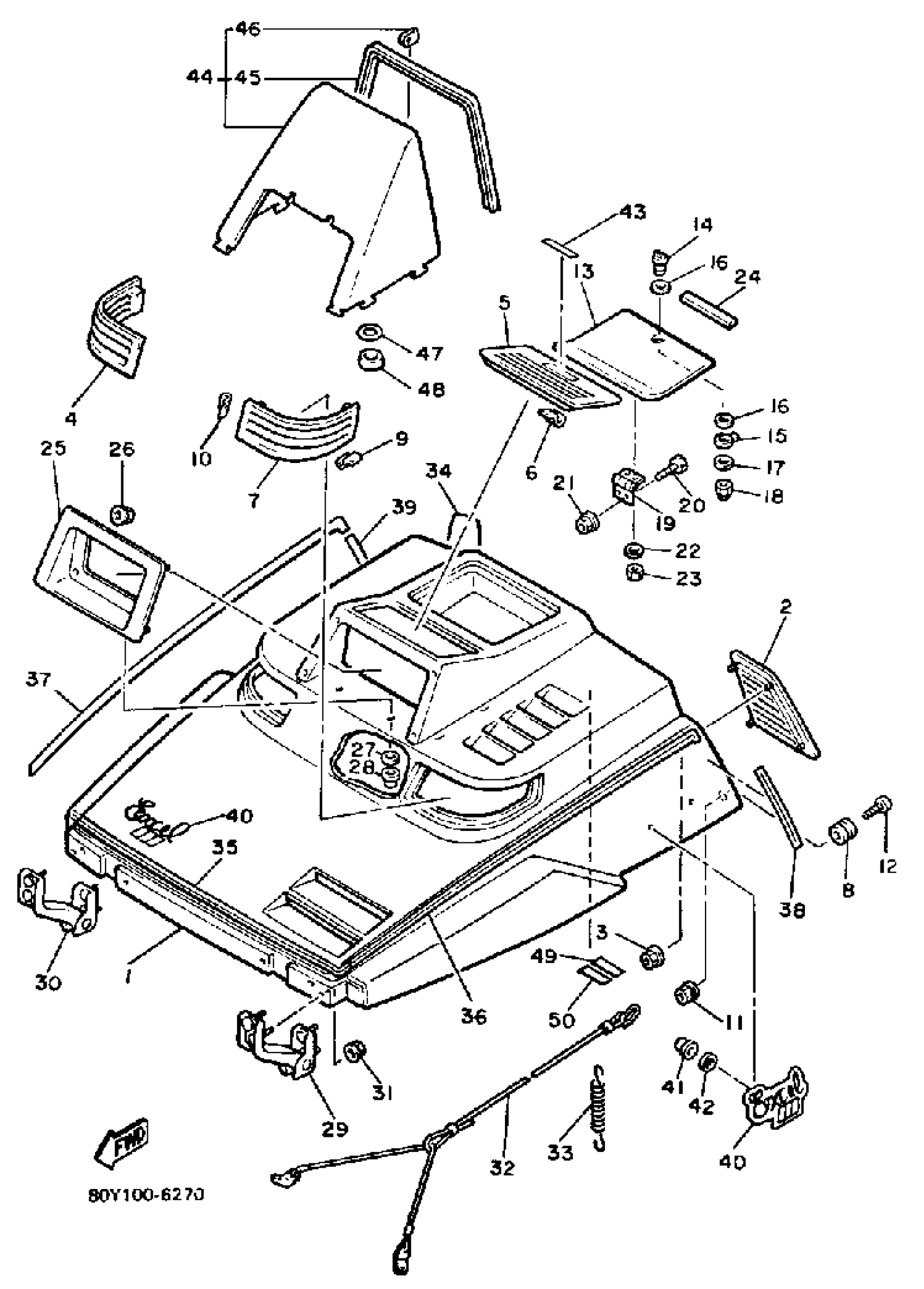

Find the part on the Shroud - Windshield diagram for your 1986 Yamaha Excel III (EC340K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha Excel III (EC340K) Shroud - Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD ASSEMBLY

80Y-W7711-09-00

1
Out of stock

2

LOUVER 1

8Y3-77131-00-00

1
Out of stock

3

NUT, FLANGE(3GM)

95707-05500-00

1

$6.18

In stock

4

LOUVER 3

80Y-77133-00-00

1
Out of stock

5

LOUVER 4

80Y-77134-00-00

1
Out of stock

6

CLIP

90468-05094-00

1
Out of stock

7

LOUVER 5

80Y-77109-00-00

1
Out of stock

8

. HOLDER, LATCH

8M6-77175-00-00

1

$12.72

In stock

9

CLIP

90468-05137-00

1
Out of stock

10

CLIP

90468-05138-00

1
Out of stock

11

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

12

SCREW, BINDING

98907-06030-00

1

$5.94

In stock

13

COVER, LUGGAGE BOX

80Y-77392-00-00

1
Out of stock

14

KNOB

8L9-77324-00-00

1
Out of stock

15

LEVER, ARM FITTING

8K4-77328-00-00

1
Out of stock

16

WASHER, PLAIN(735)

90201-10119-00

—
Out of stock

17

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

18

NUT, NYLON

95707-05300-00

—

$2.74

In stock

19

HINGE ASSEMBLY

8K4-77470-00-00

1
Out of stock

20

BOLT

97006-05014-00

1
Out of stock

21

NUT, FLANGE(3GM)

95707-05500-00

1

$6.18

In stock

22

WASHER, PLAIN LARGE

92907-05200-00

—
Out of stock

23

NUT, CAP

95307-05800-00

—

$5.62

In stock

24

DAMPER 2

8W6-77374-00-00

1
Out of stock

25

BODY, HEADLIGHT

80Y-84311-00-00

1
Out of stock

26

NUT, FLANGE(3GM)

95707-05500-00

1

$6.18

In stock

27

WASHER, PLATE

90201-04027-00

—
Out of stock

28

NUT, SPRING (1L9)

90183-04012-00

—
Out of stock

29

HINGE ASSEMBLY

8W6-77140-00-00

1
Out of stock

30

HINGE ASSEMBLY 2

8W6-7714A-00-00

1
Out of stock

31

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

32

STOPPER,SHROUD

89X-77118-00-00

1
Out of stock

33

CLAMP, ROD

80X-77159-00-00

—

$4.11

In stock

34

LABEL, WARNING

8Y2-77458-00-00

1
Out of stock

35

ORNAMENT 1

80Y-77163-00-00

1
Out of stock

36

ORNAMENT 2

80Y-77164-00-00

1
Out of stock

37

ORNAMENT 3

80Y-77169-00-00

1
Out of stock

38

ORNAMENT 4

80Y-77113-00-00

1
Out of stock

39

ORNAMENT 5

80Y-77114-00-00

1
Out of stock

40

EMBLEM 1

8W8-77351-00-00

1
Out of stock

41

NUT SPRING 116283170100

90183-04005-00

—

$0.74

In stock

42

WASHER PLATE 174283160000

90202-04003-00

—

$6.69

In stock

43

EMBLEM 3

25G-21783-00-00

1
Out of stock

44

WINDSHIELD,ET340

8X1-77210-10-XX

1
Out of stock

45

TRIM,UPPER

87K-77213-00-00

1
Out of stock

46

. FASTENER

80V-77223-00-00

1
Out of stock

47

FASTNER

82H-77223-00-00

—

$7.63

In stock

48

FASTNER

82H-77223-00-00

—

$7.63

In stock

49

LABEL, CAUTION

80X-1417E-00-00

1
Out of stock

50

LABEL 1

80X-47578-00-00

1
Out of stock
