1986 Yamaha Excel Iii (EC340K) Pump Drive - Gear Diagram

← All diagrams

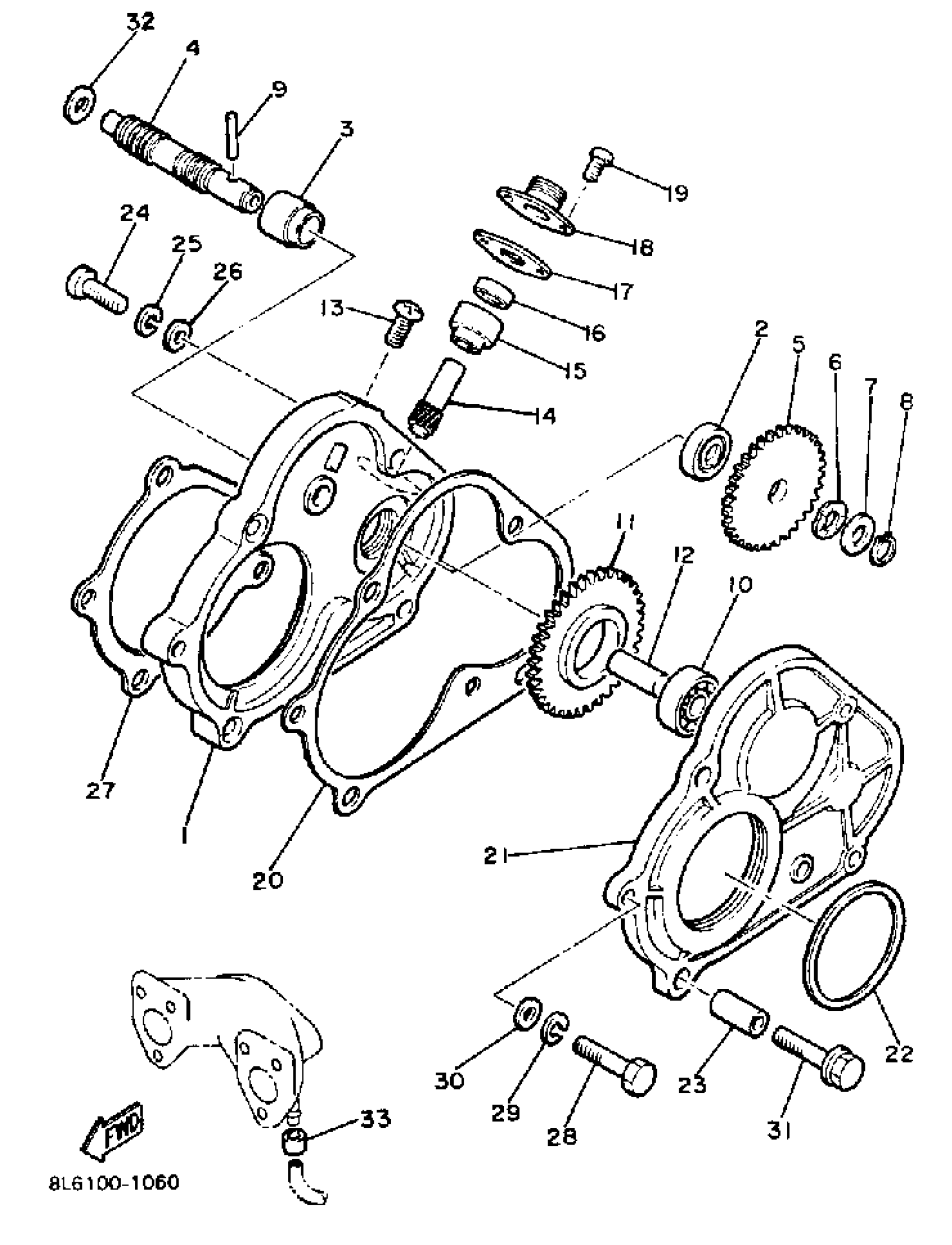

Find the part on the Pump Drive - Gear diagram for your 1986 Yamaha Excel Iii (EC340K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha Excel Iii (EC340K) Pump Drive - Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, OIL PUMP

8G8-15416-00-00

1
Out of stock

2

OIL SEAL (J10)

93101-10090-00

1
Out of stock

3

METAL, WORM SHAFT OUTER

821-13176-00-00

1
Out of stock

4

SHAFT, WORM

821-13175-00-00

1
Out of stock

5

GEAR, DRIVE 2

821-13188-00-00

—
Out of stock

6

WASHER, WAVE (137)

90206-11016-00

—
Out of stock

7

PLATE, CAM THRUST

137-13148-00-00

—
Out of stock

8

CIRCLIP(10W)

99009-10400-00

1
Out of stock

9

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

10

BRG,R-B 6000RS 32MM 30G KY

93306-00002-00

—
Out of stock

11

GEAR, IDLE

8G8-13179-00-00

1
Out of stock

12

SHAFT, IDLE GEAR

8G8-13342-00-00

1
Out of stock

13

SCREW, PAN HEAD(62J)

97885-06012-00

1
Out of stock

14

GEAR, DRIVEN (10T)

813-17841-00-00

1
Out of stock

15

BUSH, DRIVEN GEAR OUTER

821-17843-00-00

1
Out of stock

16

OIL SEAL (6X12X4-821)

93104-06033-00

—
Out of stock

17

GASKET

821-17818-02-00

—
Out of stock

18

CAP, HOUSING

821-17819-00-00

1
Out of stock

19

SCREW, PAN HEAD(62X)

97885-05010-00

1
Out of stock

20

GASKET 2

8G8-15466-03-00

1
Out of stock

21

COVER, OIL PUMP R

8G8-15426-00-00

1
Out of stock

22

OIL SEAL, SR-TYPE

93112-53004-00

1
Out of stock

23

PIN, DOWEL

91810-18025-00

1
Out of stock

24

SCREW PAN HEAD

98580-06020-00

—
Out of stock

25

WASHER, SPRING

92995-06100-00

1
Out of stock

26

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

27

GASKET,O/PPCUR1

8G8-15456-03-00

1
Out of stock

28

BOLT, HEXAGON

97017-06030-00

—
Out of stock

29

WASHER, SPRING

92995-06100-00

1
Out of stock

30

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

31

BOLT, FLANGE

95817-06035-00

—
Out of stock

32

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

33

CLIP (2A6)

90468-02025-00

—
Out of stock
