1985 Yamaha Excel III (EC340J) Bumper Diagram

← All diagrams

Find the part on the Bumper diagram for your 1985 Yamaha Excel III (EC340J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

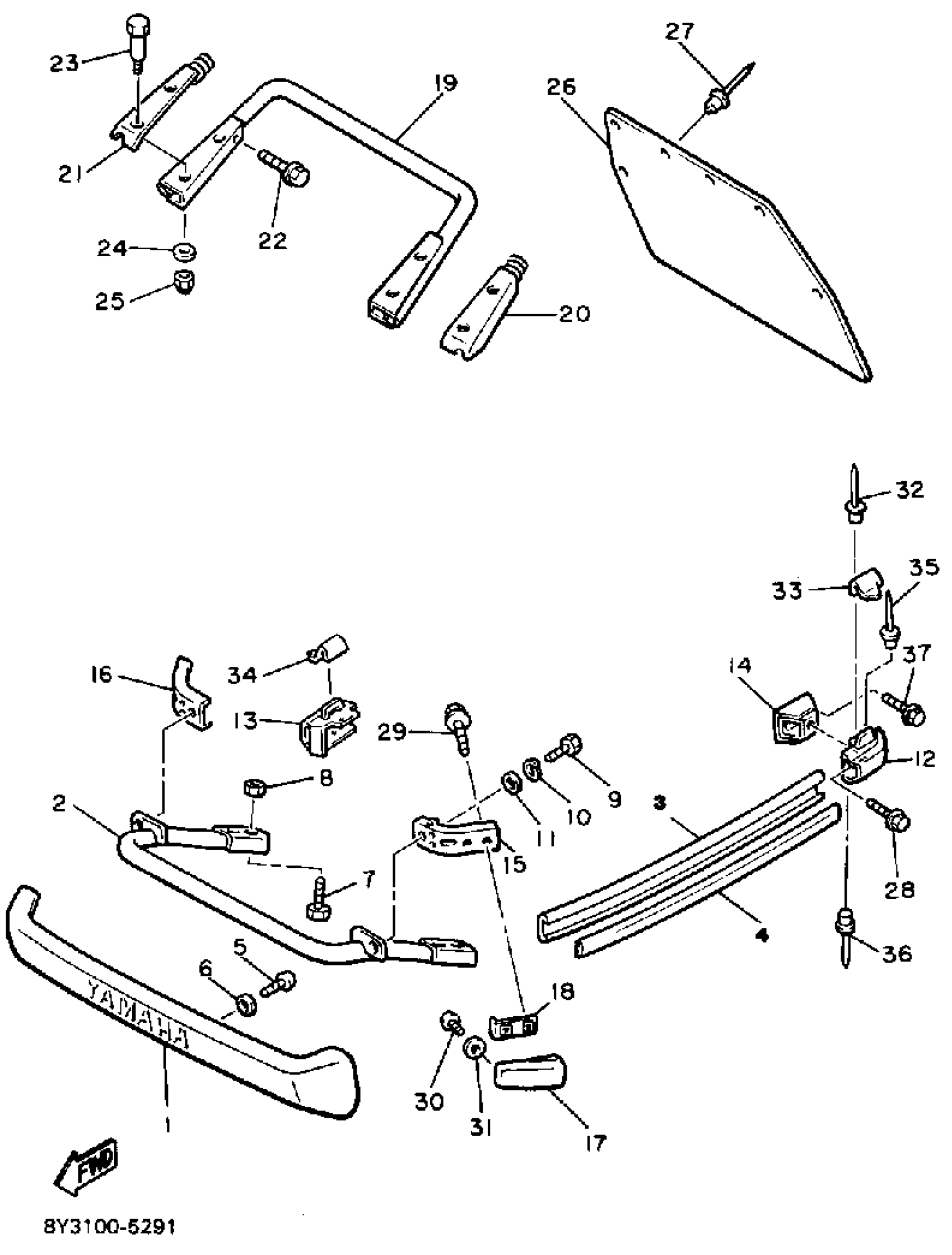

1985 Yamaha Excel III (EC340J) Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

8Y3-77511-00-00

1
Out of stock

2

BUMPER, FRONT 2

8W6-77512-00-00

1
Out of stock

3

BUMPER, FRONT 3

8Y3-77513-00-00

1
Out of stock

4

BUMPER, FRONT 4

8X0-77514-00-00

1
Out of stock

5

1

$2.22

In stock

6

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

7

BOLT, FLANGE

95817-08035-00

1

$6.68

In stock

8

NUT, U

95617-08100-00

1

$6.78

In stock

9

BOLT, HEXAGON

97017-08016-00

1
Out of stock

10

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

11

WASHER(6TA)

92907-08600-00

1

$2.52

In stock

12

END, BUMPER

8X0-77523-00-00

1
Out of stock

13

END, BUMPER

8X0-77524-00-00

1
Out of stock

14

STAY 1

8X0-77535-00-00

1
Out of stock

15

BRACKET, FRONT L

80M-77531-00-00

1
Out of stock

16

BRACKET, FRONT R

80M-77532-00-00

1
Out of stock

17

PROTECTOR 1

8X0-77551-00-00

1
Out of stock

18

PLATE, BACK UP

8X0-77527-00-00

1
Out of stock

19

BUMPER, REAR 1

8W6-77541-00-00

1
Out of stock

20

BUMPER, REAR 2

8W6-77542-00-00

1
Out of stock

21

BUMPER, REAR 3

8W6-77543-00-00

1
Out of stock

22

BOLT, FLANGE

95817-08012-00

—

$3.98

In stock

23

BOLT

8W6-77519-00-00

1
Out of stock

24

WASHER, PLAIN LARGE

92907-05200-00

—
Out of stock

25

NUT, CAP

95307-05800-00

—

$5.62

In stock

26

FLAP

8V9-77595-00-00

1
Out of stock

27

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

28

BOLT, FLANGE(6TA)

95817-08030-00

—

$6.17

In stock

29

BOLT, FLANGE

95822-06025-00

—

$1.46

In stock

30

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

31

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

32

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock

33

BUSH, RUBBER 1

8X0-77515-00-00

1
Out of stock

34

BUSH, RUBBER 2

8X0-77516-00-00

1
Out of stock

35

RIVET(81E)

90269-05055-00

—

$7.02

In stock

36

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

37

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock
