1981 Yamaha EC340E Control - Cable Diagram

← All diagrams

Find the part on the Control - Cable diagram for your 1981 Yamaha EC340E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

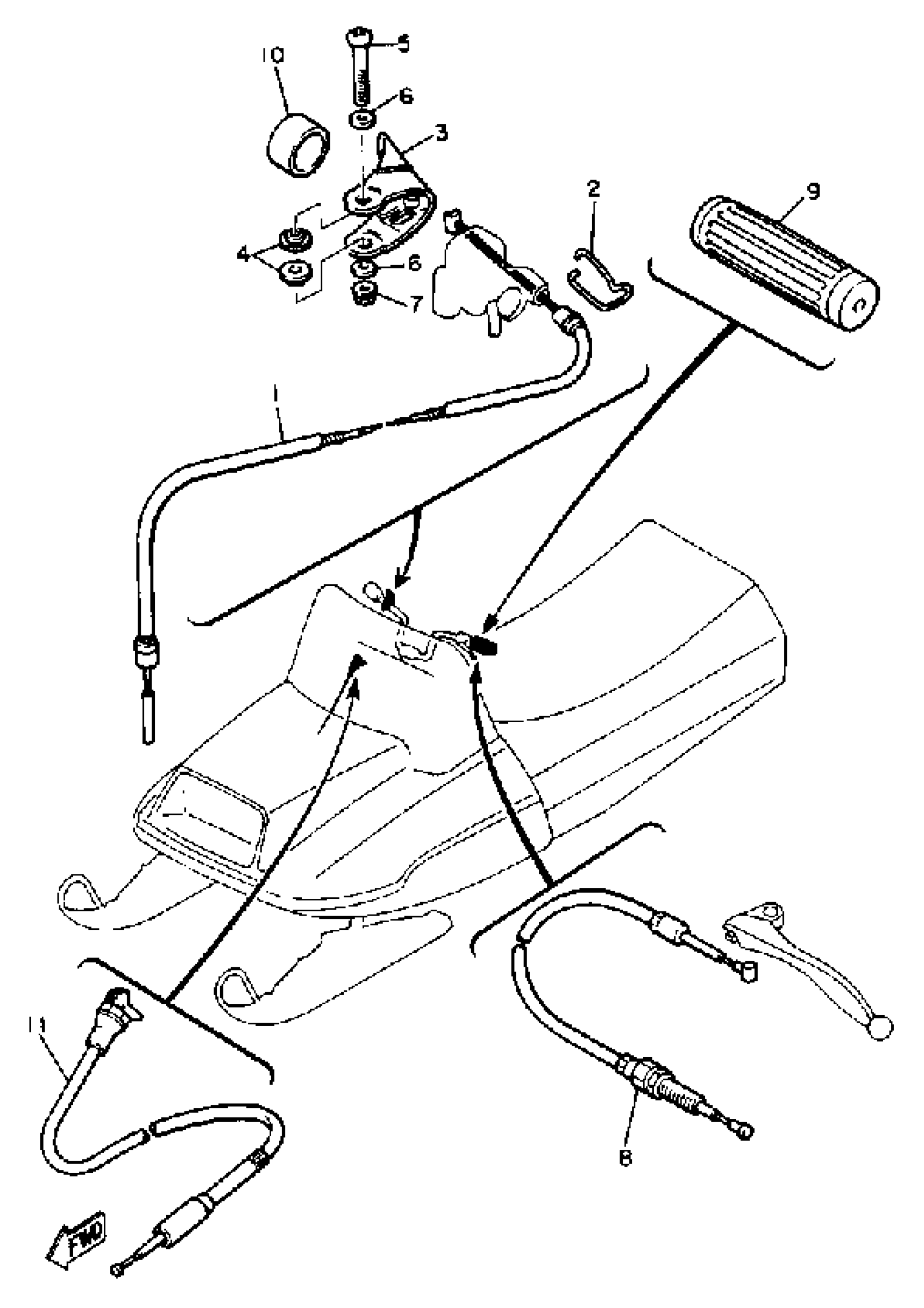

1981 Yamaha EC340E Control - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, THROTTLE 1

8W6-26311-00-00

—
Out of stock

2

CLIP (821-26391-00)

90468-10017-00

1
Out of stock

3

LEVER,THROTTLE

8K1-42138-00-00

1
Out of stock

4

COLLAR (8G8)

90387-06681-00

1

$6.62

In stock

5

SCREW PAN HEAD

98580-06550-00

1

$6.17

In stock

6

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

7

NUT, NYLON

95707-06300-00

1

$3.20

In stock

8

CABLE, BRAKE

8F3-26340-01-00

1
Out of stock

9

GRIP

801-26241-02-00

1
Out of stock

10

COLLAR

90387-22726-00

1
Out of stock

11

CABLE, STARTER 1

8L3-26331-00-00

1

$48.01

In stock
← Brake SKI →
