1981 Yamaha EC340E Bumper Diagram

← All diagrams

Find the part on the Bumper diagram for your 1981 Yamaha EC340E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

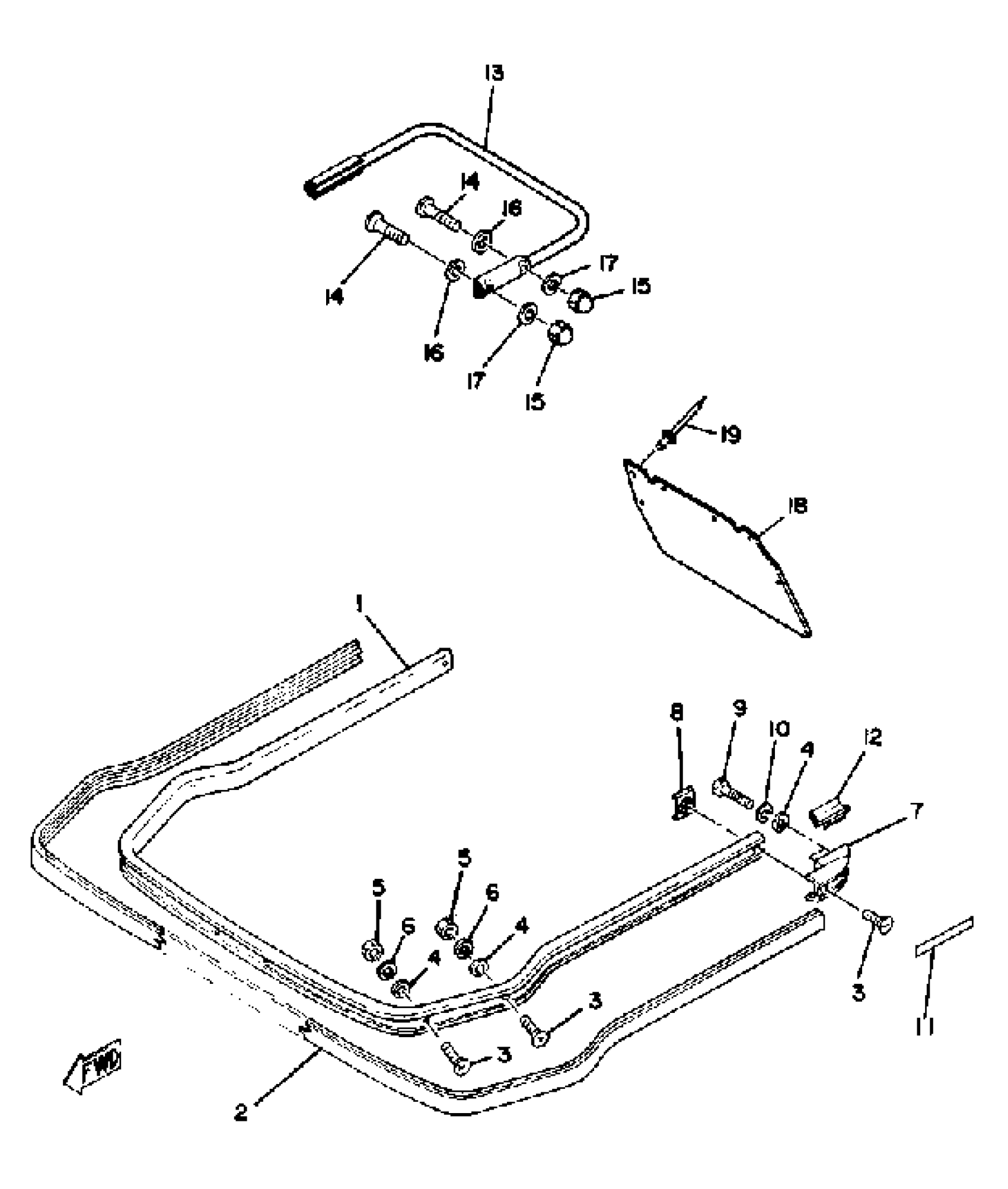

1981 Yamaha EC340E Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

8G8-77511-00-00

1
Out of stock

2

BUMPER, FRONT 4

8G8-77514-00-00

1
Out of stock

3

SCREW, FLAT

98707-06030-00

1

$6.08

In stock

4

WASHER, PLATE

90201-06M08-00

1
Out of stock

5

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

END, BUMPER

8G8-77523-01-00

1
Out of stock

8

STAY 1

8G8-77535-00-00

1
Out of stock

9

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

STRIPE 3

8G8-77283-00-00

1
Out of stock

12

BUSH, RUBBER 2

8H5-77516-00-00

1
Out of stock

13

BUMPER, REAR 1

8G8-77541-00-00

1
Out of stock

14

—

$3.80

In stock

15

NUT, CROWN

95303-08800-00

1

$7.52

In stock

16

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

17

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

18

FLAP

8F2-77595-00-00

1
Out of stock

19

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock
