1978 Yamaha DT400E (DT400E) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1978 Yamaha DT400E (DT400E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

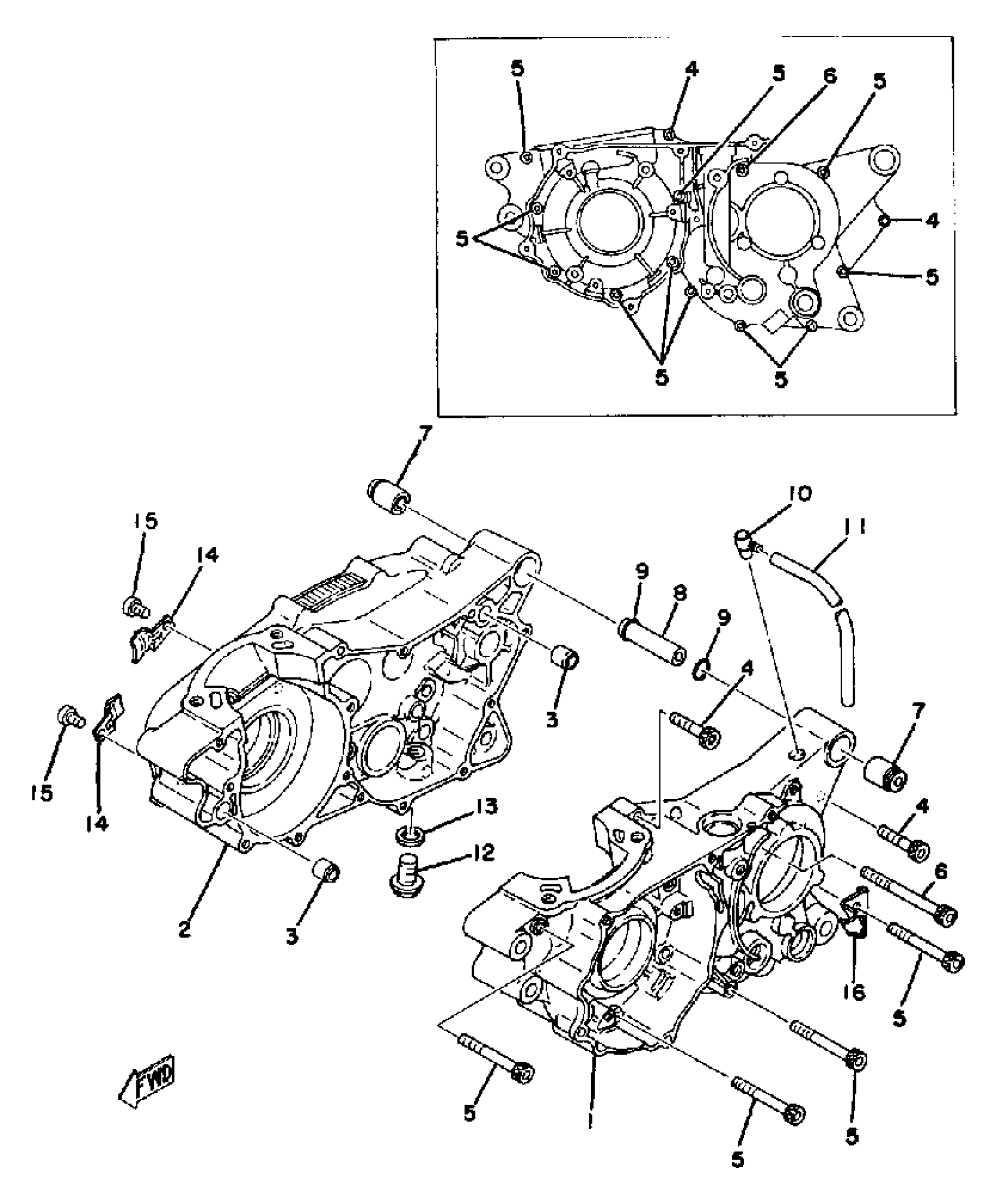

1978 Yamaha DT400E (DT400E) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

1M1-15111-02-00

1
Out of stock

1

CRANKCASE 1 (1M2-15111-00)

1M2-15111-01-00

1
Out of stock

2

CRANKCASE 2

1M1-15121-00-00

1
Out of stock

2

CRANKCASE 2

(1M2-15121-01-00)

1
Out of stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

BOLT,SOCKET

91317-06035-00

1

$3.47

In stock

5

BOLT,SOCKET

91317-06060-00

1
Out of stock

6

BOLT,SOCKET

91317-06080-00

—

$3.78

In stock

7

DAMPER

90388-08003-00

1

$16.29

In stock

8

SPACER, ENGINE MOUNT

438-15317-00-00

1
Out of stock

9

O-RING (P95)

93210-11073-00

1
Out of stock

10

BREATHER

583-15371-00-00

1
Out of stock

11

HOSE (L1050)

90445-072G8-00

1

$23.46

In stock

12

BOLT

90109-14385-00

1

$13.66

In stock

13

WASHER, PROTECTOR

4F4-14766-00-00

1

$6.11

In stock

14

HOLDER

434-15118-00-00

1
Out of stock

15

SCREW, PAN

98507-08010-00

—
Out of stock

16

CLAMP

(90465-14095-00)

1
Out of stock
