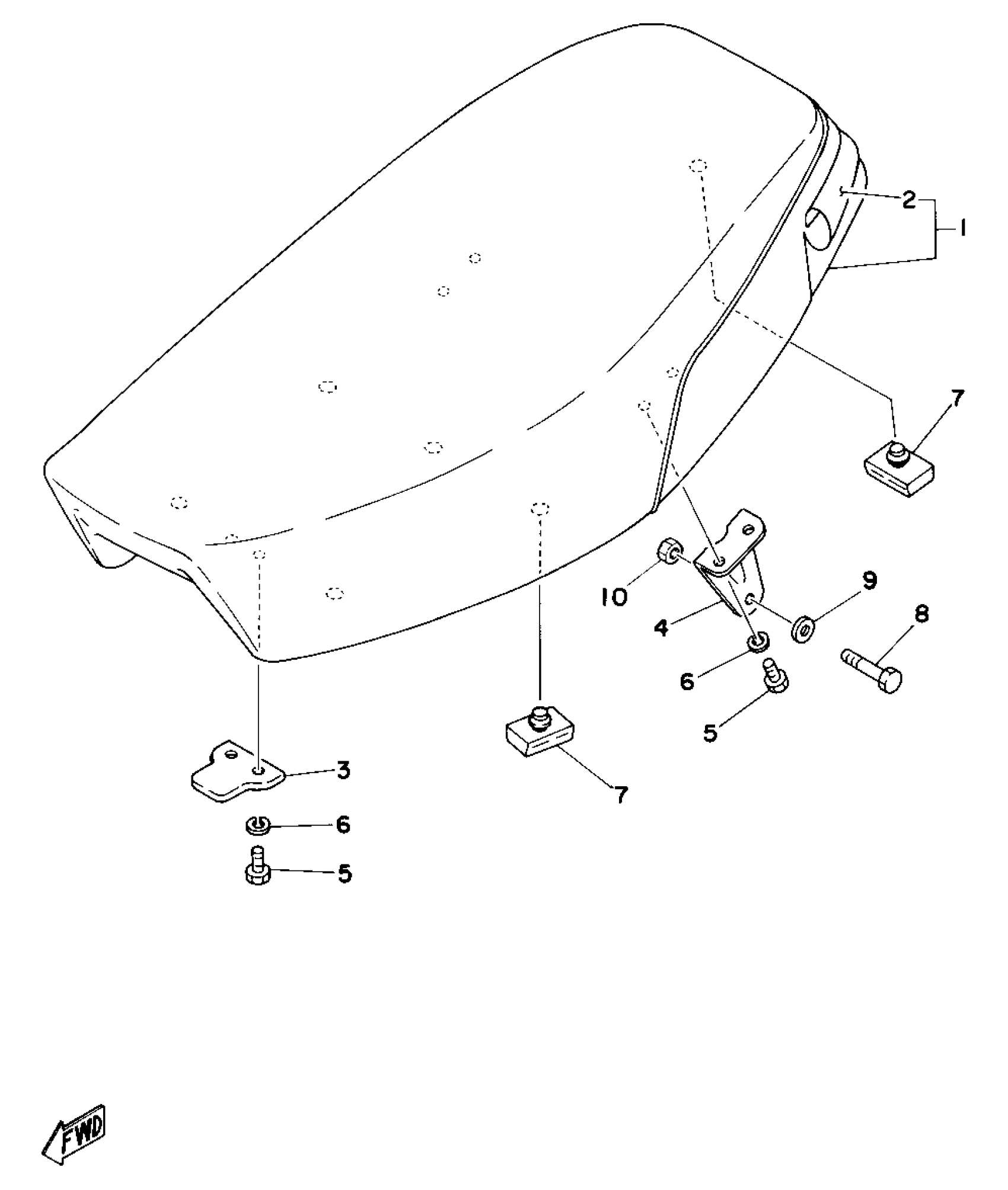

Yamaha DT400D (DT400D) 1977 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSEMBLY

1M1-W2472-00-00

Unavailable

2

. COVER, SINGLE SEAT

1M1-24711-00-00

Unavailable

3

BRACKET, SEAT

1M1-24748-00-00

Unavailable

4

BRACKET, SEAT

1M1-24738-00-00

Unavailable

5

BOLT(8CP)

97017-06014-00

$4.91

6

WASHER, SPRING

92995-06100-00

$2.95

7

DAMPER, SEAT

214-24724-00-00

$6.29

8

BOLT, HEXAGON

97013-06045-00

$1.43

9

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

10

NUT, SELF-LOCKING

95617-06100-00

$2.17
