1974 Yamaha DT360A (DT360A) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1974 Yamaha DT360A (DT360A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

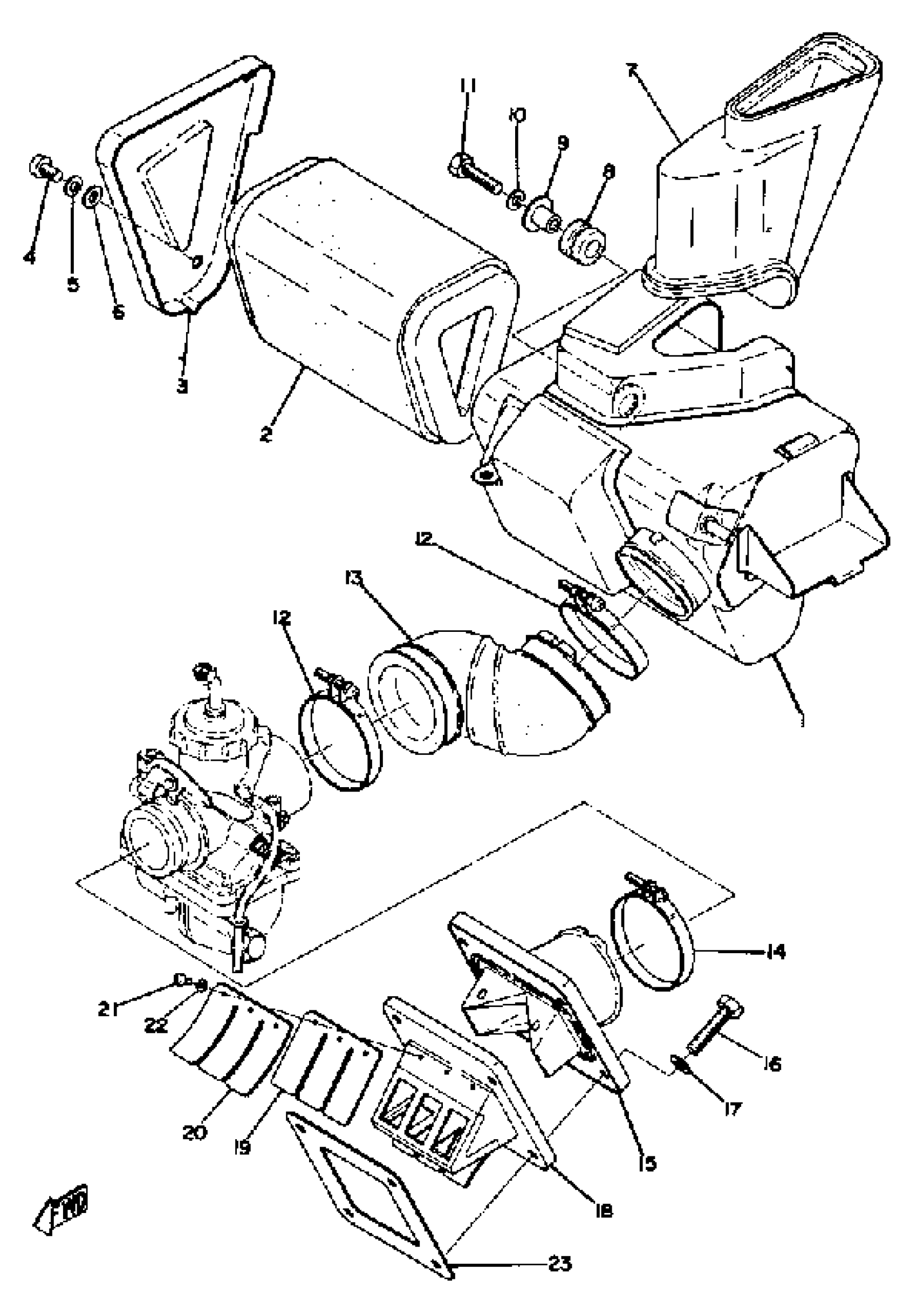

1974 Yamaha DT360A (DT360A) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, AIR CLEANER

438-14411-01-00

1
Out of stock

2

ELEMENT, AIR CLEANER

438-14451-08-00

—
Out of stock

3

CAP, CASE

438-14412-00-00

1
Out of stock

4

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

7

DUCT

438-14437-00-00

1
Out of stock

8

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

9

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

12

BAND

90460-54062-00

1
Out of stock

13

JOINT, AIR CLEANER

438-14453-01-00

1
Out of stock

13

JOINT, AIR CLEANER

445-14453-01-00

1
Out of stock

14

CLAMP HOSE 304144550000

90460-51059-00

1

$14.64

In stock

15

JOINT, CARBURETOR

364-13565-01-00

1
Out of stock

16

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

REED VALVE ASSEMBLY

363-13610-00-00

1
Out of stock

19

. REED, VALVE

363-13613-00-00

1
Out of stock

20

. STOPPER, REED VALVE

363-13616-00-00

1
Out of stock

21

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

22

WASHER, SPRING

92990-03100-00

—

$6.17

In stock

23

GASKET,VALVE SEAT

363-13621-01-00

1
Out of stock
