1974 Yamaha DT360A (DT360A) Front Fork Diagram

← All diagrams

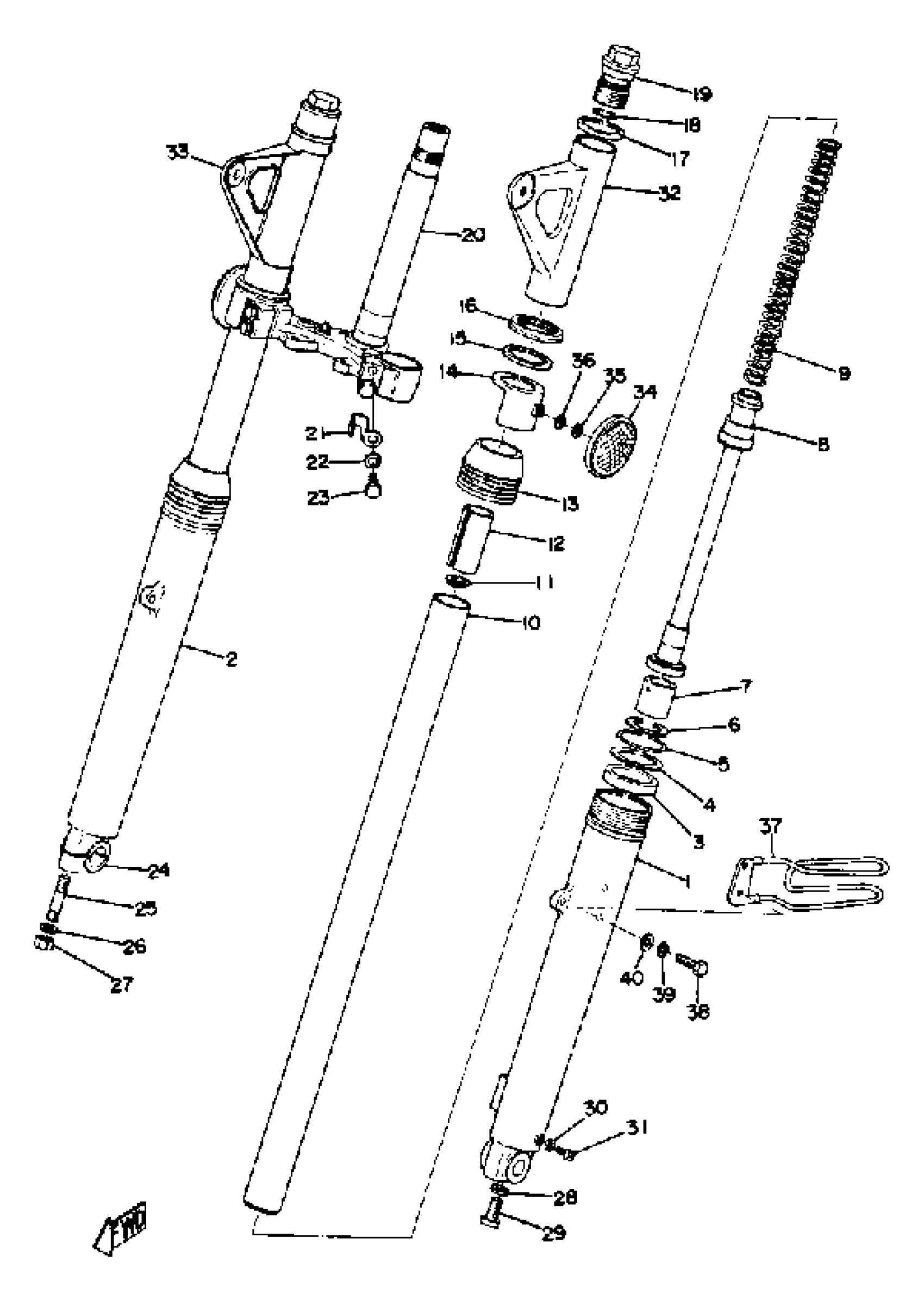

Find the part on the Front Fork diagram for your 1974 Yamaha DT360A (DT360A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha DT360A (DT360A) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(498-23101-01-00)

1
Out of stock

2

TUBE, OUTER 1

(498-23126-00-00)

1
Out of stock

3

OIL SEAL

584-23145-50-00

1

$52.72

In stock

4

.. WASHER, OIL SEAL

214-23146-00-00

1
Out of stock

5

.. CLIP, OIL SEAL

214-23156-00-00

1
Out of stock

6

TUBE, OUTER 2

(498-23136-00-00)

1
Out of stock

7

BOLT, STUD (278)

90116-08261-00

1
Out of stock

8

OIL SEAL

584-23145-50-00

1

$52.72

In stock

9

.. WASHER, OIL SEAL

214-23146-00-00

1
Out of stock

10

.. CLIP, OIL SEAL

214-23156-00-00

1
Out of stock

11

. CIRCLIP, INNER

93450-30033-00

1
Out of stock

12

PISTON, FRONT FORK

(434-23171-00-00)

1
Out of stock

13

CYLINDER, FRTFRK

(498-23170-00-00)

1
Out of stock

14

. SPRING, FRONT FORK

214-23141-00-00

1
Out of stock

15

. TUBE, INNER 1

291-23124-60-00

1
Out of stock

16

. SEAT, SPRING UPPER

278-23142-50-00

1
Out of stock

17

SPACER

(498-23118-00-00)

1
Out of stock

18

SEAL,DUST

278-23144-50-00

—

$31.64

In stock

19

COVER, OUTER 1

(275-23122-60-00)

1
Out of stock

20

. GASKET (LAMP STAY)

291-23163-61-00

1
Out of stock

21

. GUIDE, COVER LOWER

447-23116-52-00

1
Out of stock

22

. GUIDE, COVER UPPER

168-23115-00-00

1
Out of stock

23

. GASKET

214-23114-00-00

1
Out of stock

24

BOLT, CAP

(291-23111-60-00)

1
Out of stock

24

. BOLT, CAP

366-23111-60-00

1
Out of stock

25

UNDER BRACKET

(456-23340-31-33)

1
Out of stock

26

HOLDER, CABLE 1

(256-23318-60-00)

1
Out of stock

27

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

28

CLIP

(90468-23060-00)

1
Out of stock

29

BOLT, AXLE HOLDER

18G-23128-00-00

—

$7.77

In stock

30

. HOLDER, AXLE (291-23167-60)

291-23167-61-00

1
Out of stock

32

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

33

GASKET

509-23158-L0-00

—

$14.34

In stock

34

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

35

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

36

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

37

COVER, UPPER 1

(438-23121-00-20)

1
Out of stock

38

COVER, UPPER 2

(438-23131-00-20)

1
Out of stock

39

REFLECTOR, FRONT 1

355-85111-01-00

—
Out of stock

40

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

41

DAMPER 1

(498-21541-01-00)

1
Out of stock

42

HOLDER, CABLE 1

(498-23318-01-00)

1
Out of stock

43

HOLDER, CABLE 2

(498-23319-01-00)

1
Out of stock

44

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

45

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

46

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock
