1974 Yamaha DT360A (DT360A) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1974 Yamaha DT360A (DT360A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

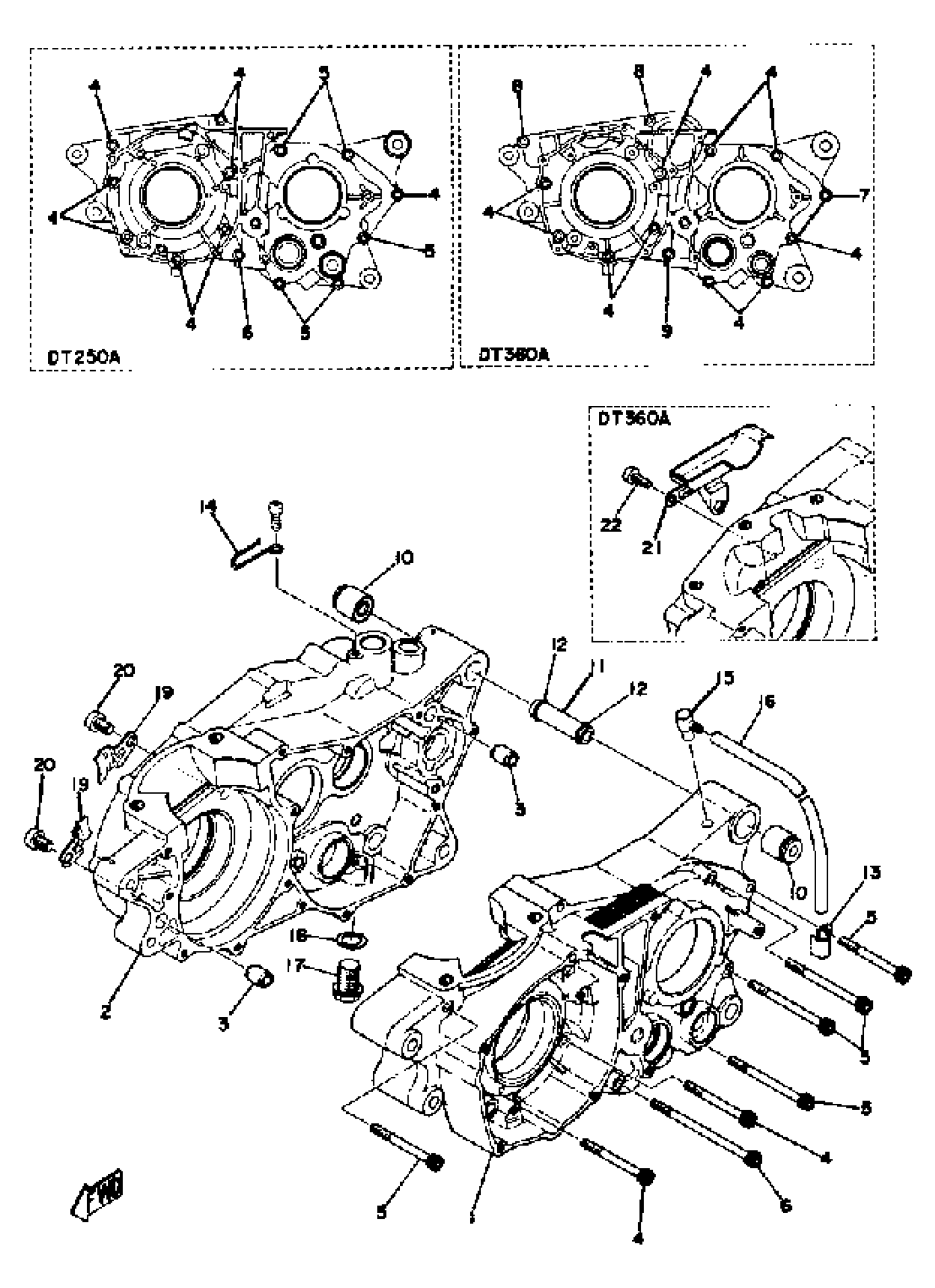

1974 Yamaha DT360A (DT360A) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, LEFT

438-15111-01-00

1
Out of stock

1

CASE, LEFT

445-15111-01-00

1
Out of stock

2

CASE, RIGHT

438-15121-01-00

1
Out of stock

2

CASE, RIGHT

445-15121-01-00

1
Out of stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

BOLT,SOCKET

91317-06060-00

1
Out of stock

4

BOLT,SOCKET

91317-06060-00

1
Out of stock

5

BOLT, SOCKET

91317-06075-00

1
Out of stock

6

BOLT

91316-06100-00

1
Out of stock

7

BOLT,SOCKET

91317-06045-00

1
Out of stock

10

DAMPER

90388-08003-00

1

$16.29

In stock

11

SPACER, ENGINE MOUNT

438-15317-00-00

1
Out of stock

12

O-RING (P95)

93210-11073-00

1
Out of stock

13

CLAMP 363154850100

90462-05005-00

—

$6.92

In stock

14

CLAMP

90465-20035-00

1
Out of stock

15

BREATHER

583-15371-00-00

—
Out of stock

16

HOSE(7EG)

90446-07241-00

—

$7.42

In stock

17

BOLT

90109-14385-00

—

$13.66

In stock

18

WASHER, PROTECTOR

4F4-14766-00-00

—

$6.11

In stock

19

HOLDER

434-15118-00-00

1
Out of stock

20

SCREW,PAN HEAD

98580-08012-00

1
Out of stock

21

COVER

445-06015-00

1
Out of stock

22

SCREW,PAN HEAD

98580-08012-00

1
Out of stock
