1979 Yamaha DT250F (DT250F) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1979 Yamaha DT250F (DT250F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

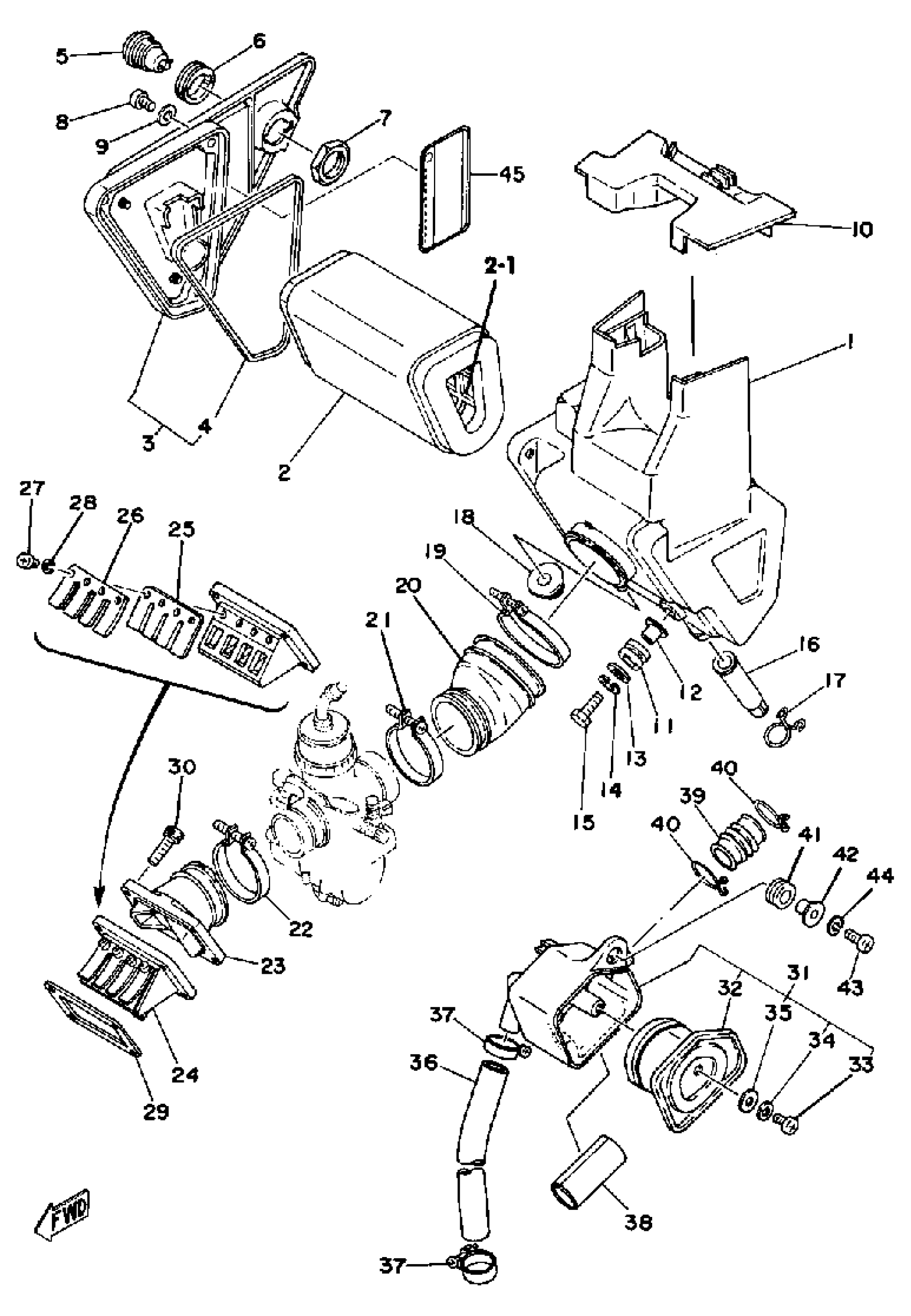

1979 Yamaha DT250F (DT250F) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AIR CLEANER CASE ASSEMBLY

(1M1-14401-00-00)

1
Out of stock

1

GUIDE, ELEMENT

1M1-14458-01-00

1
Out of stock

2

ELEMENT, AIR CLEANER

1M1-14451-01-00

1
Out of stock

3

SIDE COVER ASSEMBLY 3

1M1-21730-00-00

1
Out of stock

4

SEAL

51Y-14462-00-00

1

$11.61

In stock

5

LOCK ASSY 2

1E6-21708-00-00

1

$53.05

In stock

6

GROMMET (1E6)

90480-24186-00

1

$6.68

In stock

7

NUT, HEXAGON (1E6)

90170-22187-00

1

$9.83

In stock

8

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

9

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

10

COVER 2

(1M1-14418-00-00)

1
Out of stock

11

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

12

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

13

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

16

SEAL (509-14457-01)

509-14457-00-00

1
Out of stock

17

CLIP (806-24358-00)

90467-15012-00

—
Out of stock

18

GROMMET (509)

90480-18171-00

—

$6.55

In stock

19

HOSE CLAMP ASSY

90450-64004-00

—

$12.00

In stock

20

JOINT, AIR CLEANER 1

1M1-14453-00-00

1
Out of stock

21

CLAMP HOSE 278144550000

90460-49058-00

—
Out of stock

22

HOSE CLAMP ASSY(1MX)

90450-44046-00

—
Out of stock

23

JOINT, CARBURETOR

1M1-13565-01-00

1
Out of stock

24

REED VALVE ASSY

46Y-13610-00-00

1
Out of stock

25

REED, VALVE

8AT-13613-00-00

—

$28.12

In stock

26

STOPPER,REED VALVE

46Y-13616-00-00

1
Out of stock

27

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

28

WASHER, SPRING

92990-03100-00

—

$6.17

In stock

29

GASKET, MANIFOLD

8Y7-13556-01-00

—

$6.92

In stock

30

BOLT,SOCKET

91317-06025-00

—

$2.05

In stock

31

AIR CLEANER ASSEMBLY 2

(2N6-14420-00-00)

1
Out of stock

32

ELEMENT, AIR CLNR 2

(2N6-14461-01-00)

1
Out of stock

33

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

34

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

35

WASHER, PLATE (463)

90202-05057-00

—

$2.45

In stock

36

HOSE

(90445-22396-00)

1
Out of stock

37

CLAMP, HOSE

(90460-23147-00)

1
Out of stock

38

DAMPER 1

(2N6-14425-00-00)

1
Out of stock

39

DUCT

(2N6-14437-00-00)

1
Out of stock

40

CLIP

90467-20M15-00

1

$6.23

In stock

41

GROMMET (1E6)

90480-15058-00

—

$6.17

In stock

42

COLLAR (838-84757-00)

90387-06024-00

—
Out of stock

43

SCREW, PAN

98507-06014-00

—

$6.18

In stock

44

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

45

PLATE, SPEC

(2N6-21683-01-00)

1
Out of stock
