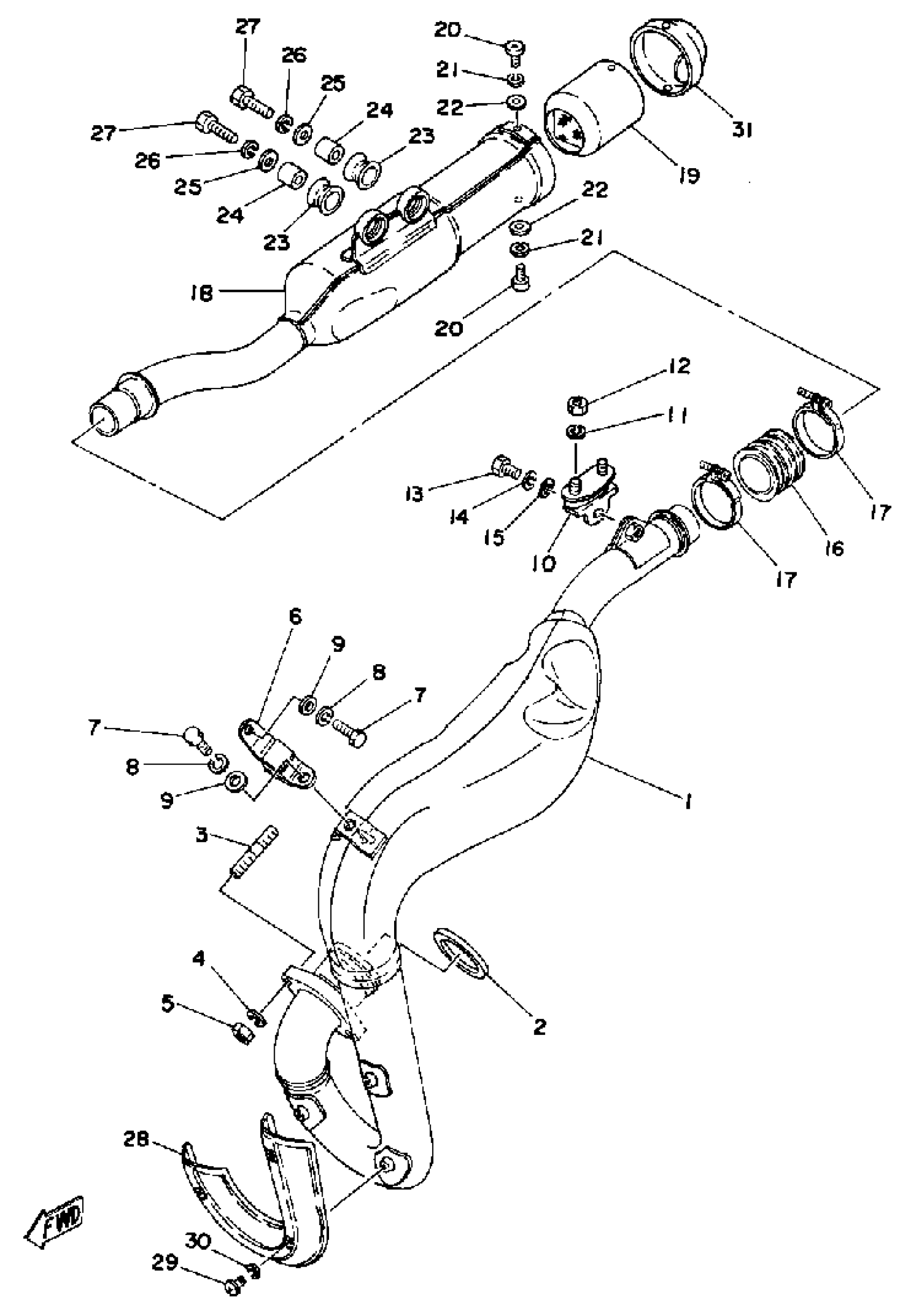

Yamaha DT250F (DT250F) 1979 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLYL

3J4-14610-00-00

Unavailable

2

GASKET, EXHAUST PIPE

214-14613-09-00

$14.81

3

BOLT, STUD (17W)

90116-08408-00

Unavailable

4

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

5

NUT(6L2)

95333-08600-00

$2.98

6

STAY, MUFFLER 2

1M1-14772-00-00

Unavailable

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

8

WASHER, SPRING

92995-06100-00

$2.95

9

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

10

STAY, MUFFLER 1

(2N6-14771-00-00)

Unavailable

11

WASHER, SPRING

92995-06100-00

$2.95

12

NUT, HEXAGON

95380-06600-00

$4.11

13

BOLT(JA9)

90101-08691-00

$4.65

14

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

15

.. WASHER, PLATE

92990-08600-00

$2.17

16

GASKET, MUFFLER JOINT

1M1-14714-00-00

Unavailable

17

CLAMP, HOSE (5H0)

90460-43179-00

Unavailable

18

SILENCER, EXHAUST

2N6-14753-00-00

Unavailable

19

ARRESTER, SPARK

(1E6-14786-01-00)

Unavailable

20

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

21

WASHER, SPRING

92995-06100-00

$2.95

22

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

23

DAMPER

565-14747-00-00

Unavailable

24

COLLAR (437)

90387-08258-00

Unavailable

25

WASHER, PLATE(8AT)

90201-081R9-00

Unavailable

26

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

27

BOLT, HEXAGON

97013-08030-00

Unavailable

28

PROTECTER, MUFFLER 2

1M1-14728-00-00

Unavailable

29

SCREW, BINDING

98907-06010-00

Unavailable

30

WASHER, SPRING

92907-06100-00

Unavailable

31

CAP, SILENCER

2N6-14787-00-00

Unavailable
