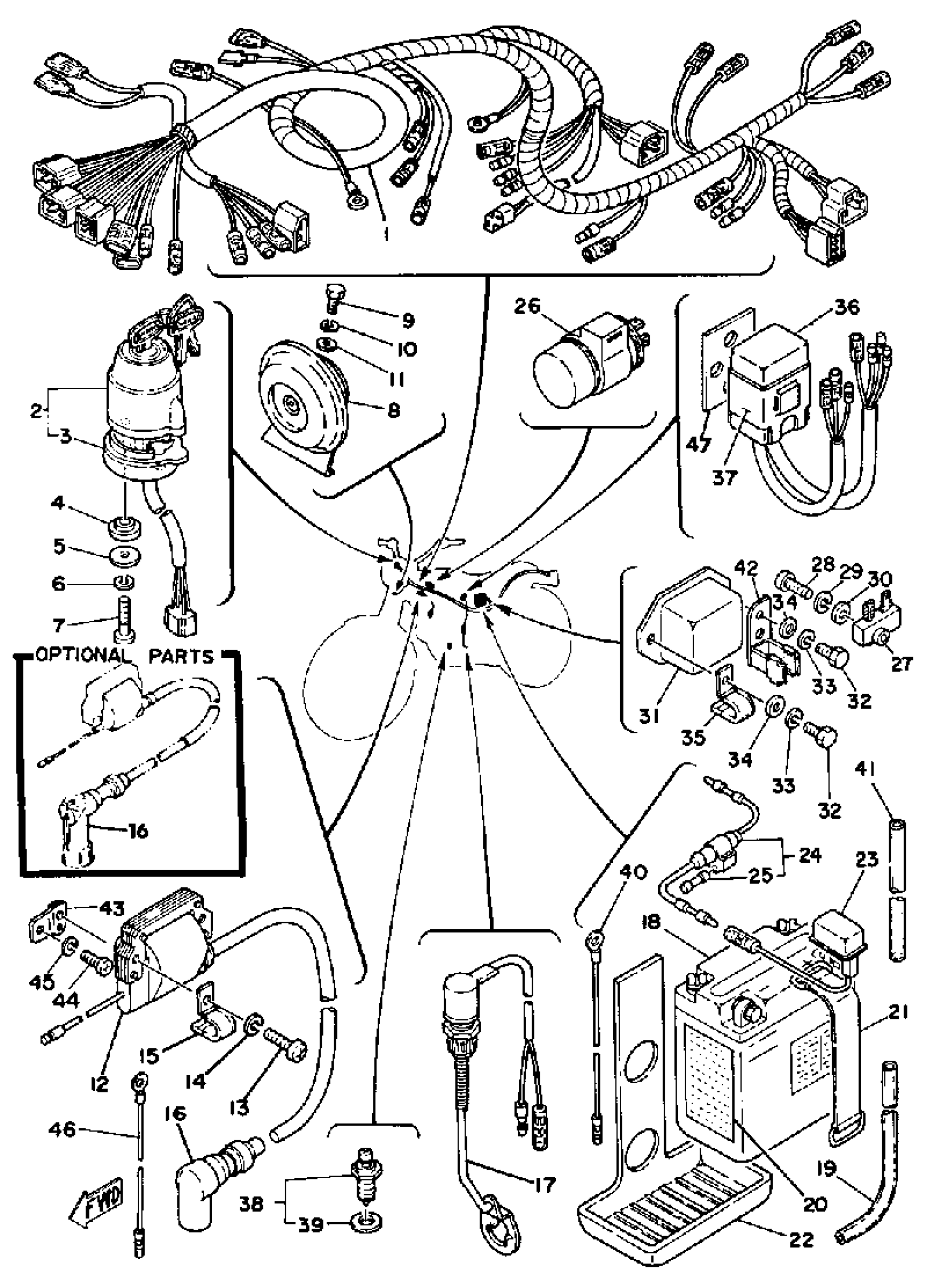

1979 Yamaha DT250F (DT250F) Electrical Diagram
Find the part on the Electrical diagram for your 1979 Yamaha DT250F (DT250F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
WIRE HARNESS ASSEMBLY
(2N6-82590-50-00)
2
MAIN SWITCH ASSEMBLY
443-82508-21-00
3
. DAMPER, MAIN SWCH 1
1M1-82555-00-00
4
DAMPER, STOPPER
1M1-82556-00-00
5
WASHER PLATE 829771780000
90201-05033-00
6
YBS67-5 WASHER, SPRING
92990-05100-00
8
HORN
1N5-83371-20-00
16
PLUG CAP ASSY
8DG-82370-00-00
17
STOP SWITCH ASSEMBLY
1M1-82530-02-00
18
6N6-3B-1 YUASA BATTERY
6N6-3B1Y0-00-00
20
LABEL, BATTERY
40A-82141-G0-00
23
WIRE, PLUS LEAD
1M1-82115-00-00
24
FUSE HOLDER ASSY
1E6-82150-00-00
26
FLASHER RELAY ASSY
3BK-83350-00-00
29
YBS67-5 WASHER, SPRING
92990-05100-00
30
WASHER, PLAIN (646)
92990-05600-00
31
VOLTAGE REG ASY
443-81910-62-00
36
CDI UNIT ASSEMBLY
2N6-85540-21-00
38
NEUTRAL SWITCH ASSY
4GY-82540-10-00
40
CORD
1H2-83346-00-00
41
HOSE
(90446-09119-00)
42
CLAMP, COUPLER
(1M1-82522-00-00)
43
BRACKET, IGN COIL
(2N6-82316-00-00)
47
DAMPER
1M2-85547-00-00
