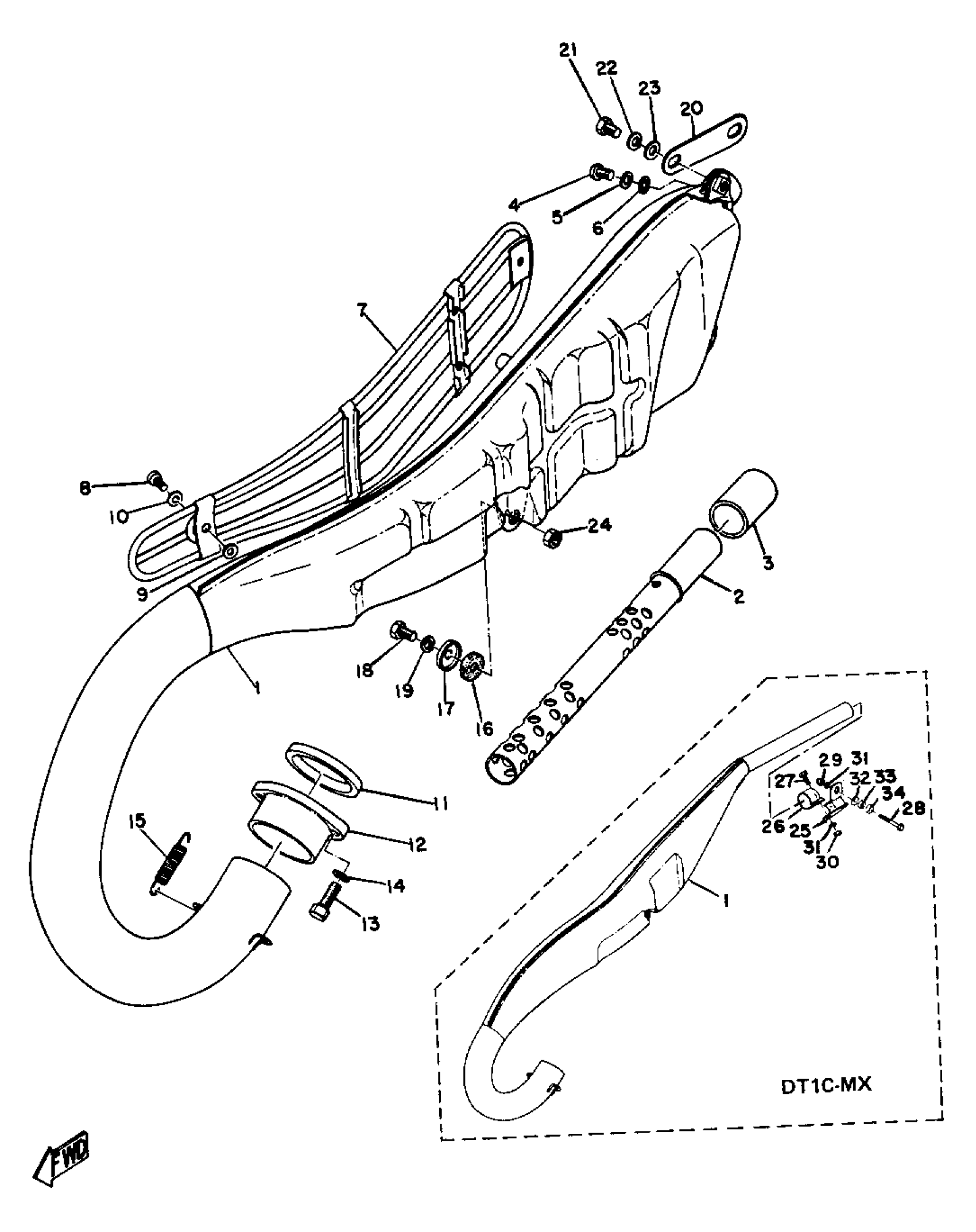

Find the part on the Muffler diagram for your 1969 Yamaha DT1S (DT1S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha DT1S (DT1S) Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, OUTLET

(214-14752-00-00)

1
Out of stock

1

EXHAUST PIPE ASSEMBLY L

(285-14610-10-00)

1
Out of stock

1

EXHAUST PIPE ASSEMBLY L

(291-14610-30-00)

1
Out of stock

2

SILENCER, EXHAUST

(214-14753-00-00)

1
Out of stock

3

PIPE, MUFFLER TAIL

(214-14746-01-00)

1
Out of stock

4

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

7

PROTECTOR, MUFF 1

214-14718-00-00

1
Out of stock

8

SCREW, BIND(J45)

98980-06012-00

1

$4.70

In stock

9

WASHER, PLATE(3MT)

90202-05188-00

1

$6.18

In stock

10

WASHER, PLATE(3MB)

90202-05187-00

1

$1.32

In stock

11

GASKET, EXHAUST PIPE

214-14613-09-00

1

$15.83

In stock

12

NUT, RING

(214-14612-00-00)

1
Out of stock

13

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

SPRING 214-14683-01

90506-12029-00

—

$6.49

In stock

16

GROMMET (16R)

90480-14329-00

—

$6.68

In stock

17

PLATE, MUFFLER

(214-14793-01-00)

1
Out of stock

18

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

STAY, MUFFLER 1

214-14771-00-00

1
Out of stock

21

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

24

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

25

STAY, MUFFLER 2

(285-14781-11-00)

1
Out of stock

26

STAY, MUFFLER 2

(285-14781-11-00)

1
Out of stock

27

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

28

BOLT, HEXAGON

97013-06045-00

—

$1.51

In stock

29

NUT, REAR FENDER

(214-21635-00-00)

1
Out of stock

30

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

31

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

32

PLATE, MUFFLER

(214-14793-01-00)

1
Out of stock

33

GROMMET (16R)

90480-14329-00

—

$6.68

In stock

34

PLATE, MUFFLER

(214-14794-00-00)

1
Out of stock
