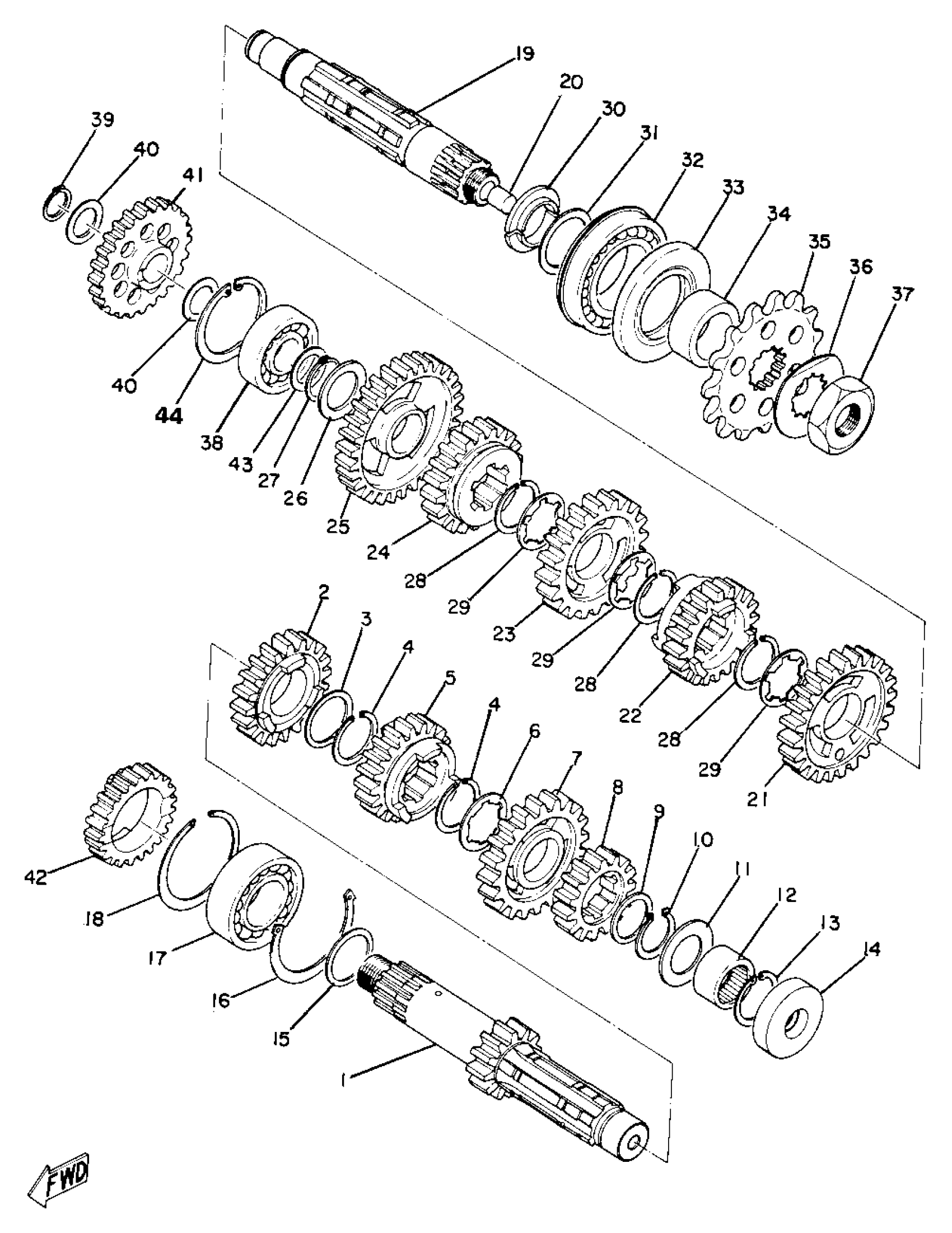

Yamaha DT1MX (DT1MX) 1971 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

(214-17411-11-00)

Unavailable

1

AXLE, MAIN

(214-17411-61-00)

Unavailable

2

GEAR, 4TH PINION

(214-17141-11-00)

Unavailable

3

WASHER PLATE 152172260000

90201-25490-00

$10.49

4

CIRCLIP (4L0)

93440-25084-00

$5.60

4

CIRCLIP (4L0)

93440-25084-00

$5.60

6

WASHER, SPEC''L SHAP

(90209-21080-00)

Unavailable

7

. GEAR, 2ND PINION

214-17121-60-00

Unavailable

7

. GEAR, 3RD WHEEL

214-17231-10-00

Unavailable

8

GEAR, 2ND PINION

(214-17121-10-00)

Unavailable

8

. GEAR, 2ND PINION

214-17121-60-00

Unavailable

9

WASHER PLATE 132172160000

90201-20266-00

$9.49

10

CIRCLIP(1EY)

99009-19400-00

$8.49

11

SHIM 1

(137-17427-00-09)

Unavailable

12

BEARING

93315-22004-00

Unavailable

13

CIRCLIP, R-TYPE (R-26)

93420-26024-00

Unavailable

14

OIL SEAL, SDO-TYPE (SDO-6.8-26-6)

93109-07009-00

Unavailable

15

SHIM 1

156-17417-00-01

Unavailable

15

SHIM 1 (25.1-31-0.2)

156-17417-00-02

Unavailable

15

SHIM 1

156-17417-00-03

Unavailable

16

CIRCLIP

(214-17474-00-00)

Unavailable

17

BEARING

93306-20503-00

Unavailable

18

CIRCLIP, INNER

(93450-52014-00)

Unavailable

19

AXLE, DRIVE

(214-17421-00-00)

Unavailable

20

. PLUG, BLIND

214-17481-00-00

Unavailable

21

. GEAR, 2ND WHEEL (34T)

214-17221-10-00

Unavailable

21

GEAR, 2ND WHEEL

(214-17221-60-00)

Unavailable

22

GEAR, 3RD PINION

(275-17131-12-00)

Unavailable

23

GEAR, 3RD WHEEL

(214-17231-01-00)

Unavailable

24

GEAR, 4TH WHEEL

(214-17241-10-00)

Unavailable

25

. GEAR, 1ST WHEEL (38T)

214-17211-10-00

Unavailable

25

. GEAR, 1ST WHEEL

214-17211-60-00

Unavailable

26

WASHER PLATE 168171160000

90201-20278-00

Unavailable

27

CIRCLIP(1EY)

99009-19400-00

$8.49

28

CIRCLIP (4L0)

93440-25084-00

$5.60

29

UNAVAILABLE IN PRICE BOOK (214-17216-00)

90209-21080-00

Unavailable

30

SPACER, DRIVE AXLE

156-17429-00-00

Unavailable

31

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

Unavailable

31

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

Unavailable

32

BRG,R-B 6305 62MM 225G NK

93306-30504-00

Unavailable

33

OIL SEAL (35X62X6-371)

93102-35109-00

Unavailable

34

COLLAR

(90387-25193-00)

Unavailable

35

SPROCKET, DRIVE (13T)

9383E-13216-00

Unavailable

35

SPROCKET, DRIVE (14T)

9383E-14215-00

Unavailable

35

SPROCKET, DRIVE

4DN-17460-00-00

Unavailable

35

SPROCKET, DRIVE 16T (16T)

9383E-16106-00

Unavailable

36

WASHER, LOCK(3LD)

90215-21290-00

Unavailable

37

NUT 152174630000

90179-18020-00

Unavailable

38

BRG,R-B 6203 42MM 70G KY

93306-20306-00

Unavailable

38

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

Unavailable

39

CIRCLIP, INNER

(93450-40001-00)

Unavailable

39

CIRCLIP(5U8)

99009-42500-00

Unavailable

40

SHIM, MAIN AXLE (1.0)

164-17417-00-10

Unavailable

41

GEAR, KICK IDLE (23T)

275-15651-00-00

Unavailable

42

GEAR, KICK PINION

(214-15631-00-00)

Unavailable

43

SHIM 1

(150-17417-00-03)

Unavailable

43

SHIM 1

(150-17417-00-05)

Unavailable

43

SHIM 2

(214-17428-00-07)

Unavailable

43

SHIM, (1.0T)

52G-17968-00-10

Unavailable

44

CIRCLIP(1AR)

99009-15400-00

Unavailable
