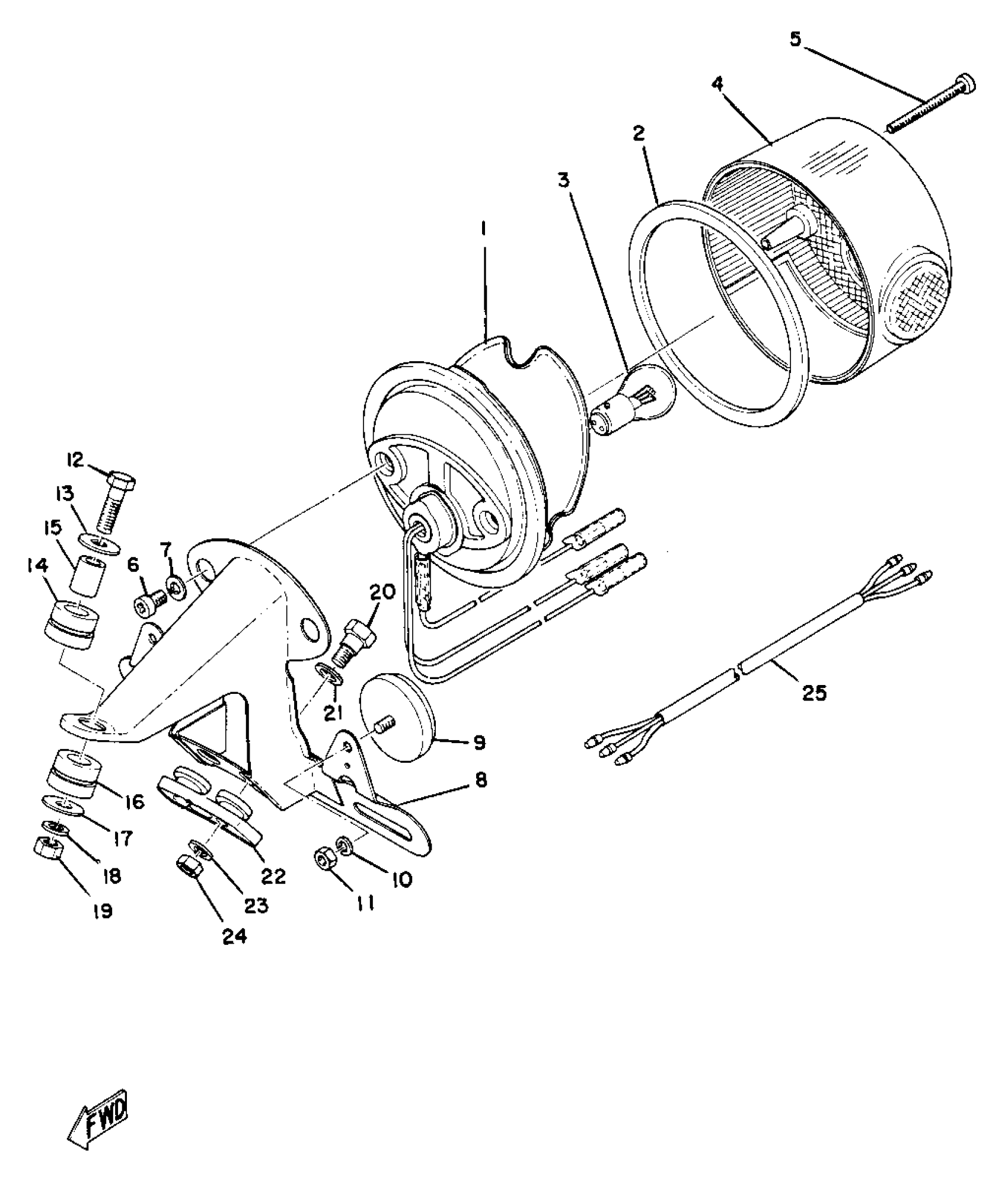

Yamaha DT1MX (DT1MX) 1971 TAIL LAMP Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLY

(275-84510-61-00)

Unavailable

1

BASE, TAILLIGHT

(275-84511-61-00)

Unavailable

2

. GASKET, LENS

275-84523-60-00

Unavailable

3

BULB,TAIL LAMP(6V17/5.3W)

122-84514-30-00

Unavailable

4

LENS, TAILLIGHT

(275-84521-60-00)

Unavailable

5

SCREW, PAN HEAD

98507-04050-00

$3.02

6

SCREW

(479-84526-00-00)

Unavailable

7

WASHER, SPECIAL

2H7-84754-00-00

$10.99

8

BRACKET, LICENSE

(444-84751-60-20)

Unavailable

9

WASHER 214835240000

90209-05029-00

$9.49

10

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

11

NUT, HEXAGON (663)

95380-05600-00

$8.49

12

BOLT, HEXAGON

97017-06030-00

$3.61

13

WASHER

90209-06012-00

$5.60

14

GROMMET 839774310000

90480-14023-00

$7.49

15

COLLAR (275-84557-00)

90387-07039-00

Unavailable

16

GROMMET (1E2)

90480-14182-00

Unavailable

17

WASHER, PLATE

90201-06380-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

NUT, HEXAGON

95380-06600-00

Unavailable

20

BOLT 168217380000

90109-06017-00

Unavailable

21

WASHER, PLAIN

92990-08200-00

Unavailable

22

DAMPER

214-84553-01-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

NUT, HEXAGON

95380-06600-00

Unavailable

25

CORD, TAILLIGHT

(214-84517-00-00)

Unavailable
