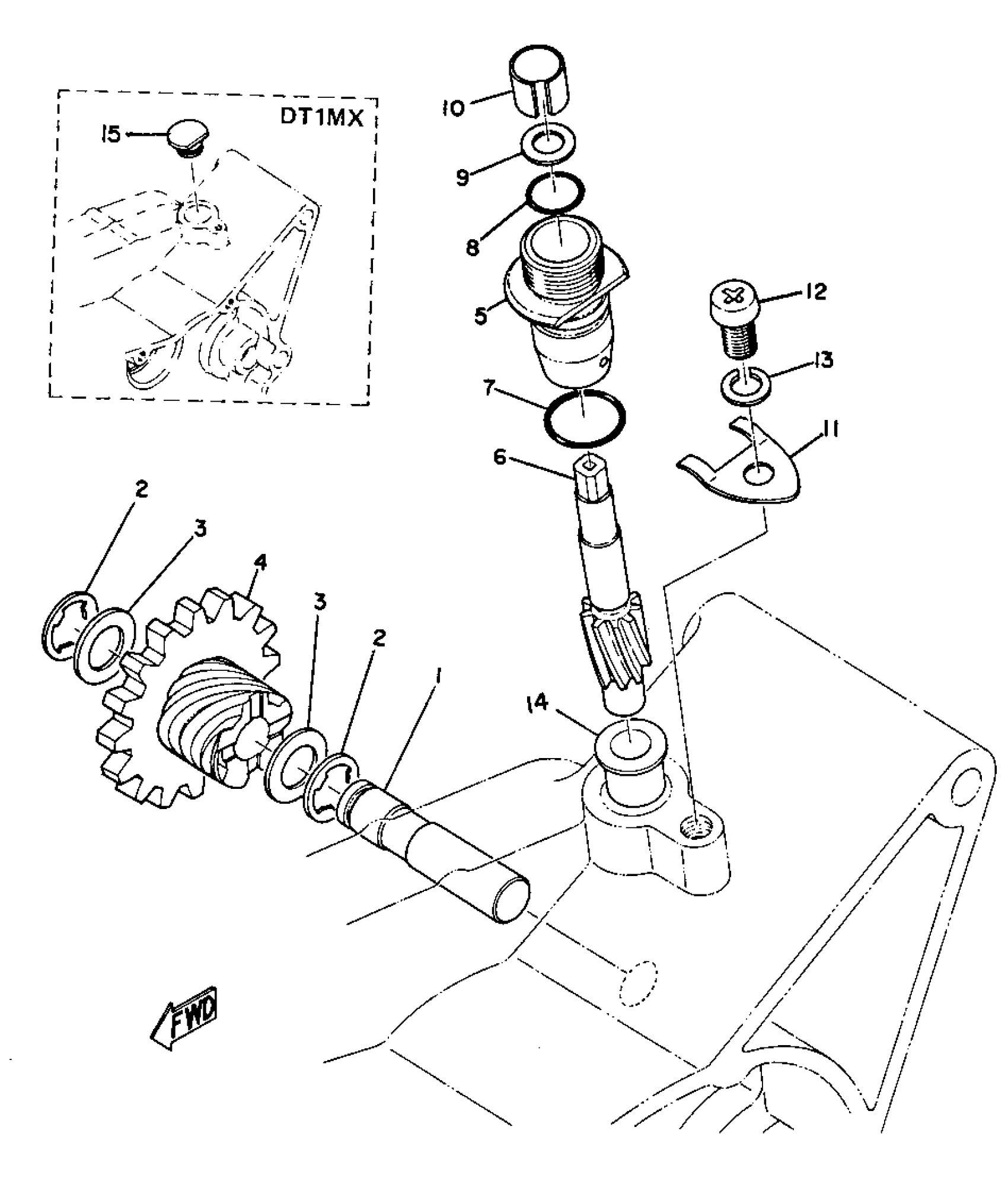

Yamaha DT1MX (DT1MX) 1971 TACHOMETER GEAR Diagram

#

Description
Price

1

AXLE, DRIVE GEAR

(214-17861-09-00)

Unavailable

2

CIRCLIP(J51)

99080-09600-00

$2.55

3

SHIM (10.2-16-1)

214-17837-00-00

Unavailable

4

GEAR, DRIVE

(214-17831-01-00)

Unavailable

5

HOUSING ASSEMBLY, TACH (214-17811-01)

353-17810-00-00

Unavailable

6

GEAR, DRIVEN

214-17841-01-00

Unavailable

7

O-RING (137)

93210-13016-00

$7.49

8

O-RING (214)

93210-07100-00

$7.49

9

SHIM (7.5-10.8-0.4)

214-17847-00-00

Unavailable

10

BUSH, FORMED (214-17815-00) 001

90383-10005-00

Unavailable

11

STOPPER

5U7-17812-00-00

Unavailable

12

BOLT(3JP)

97017-06010-00

$3.76

13

WASHER, SPRING

92995-06100-00

Unavailable

14

BUSH (214-17843-00)

90381-08002-00

$11.49

15

CAP, HOUSING

(241-17819-00-00)

Unavailable
