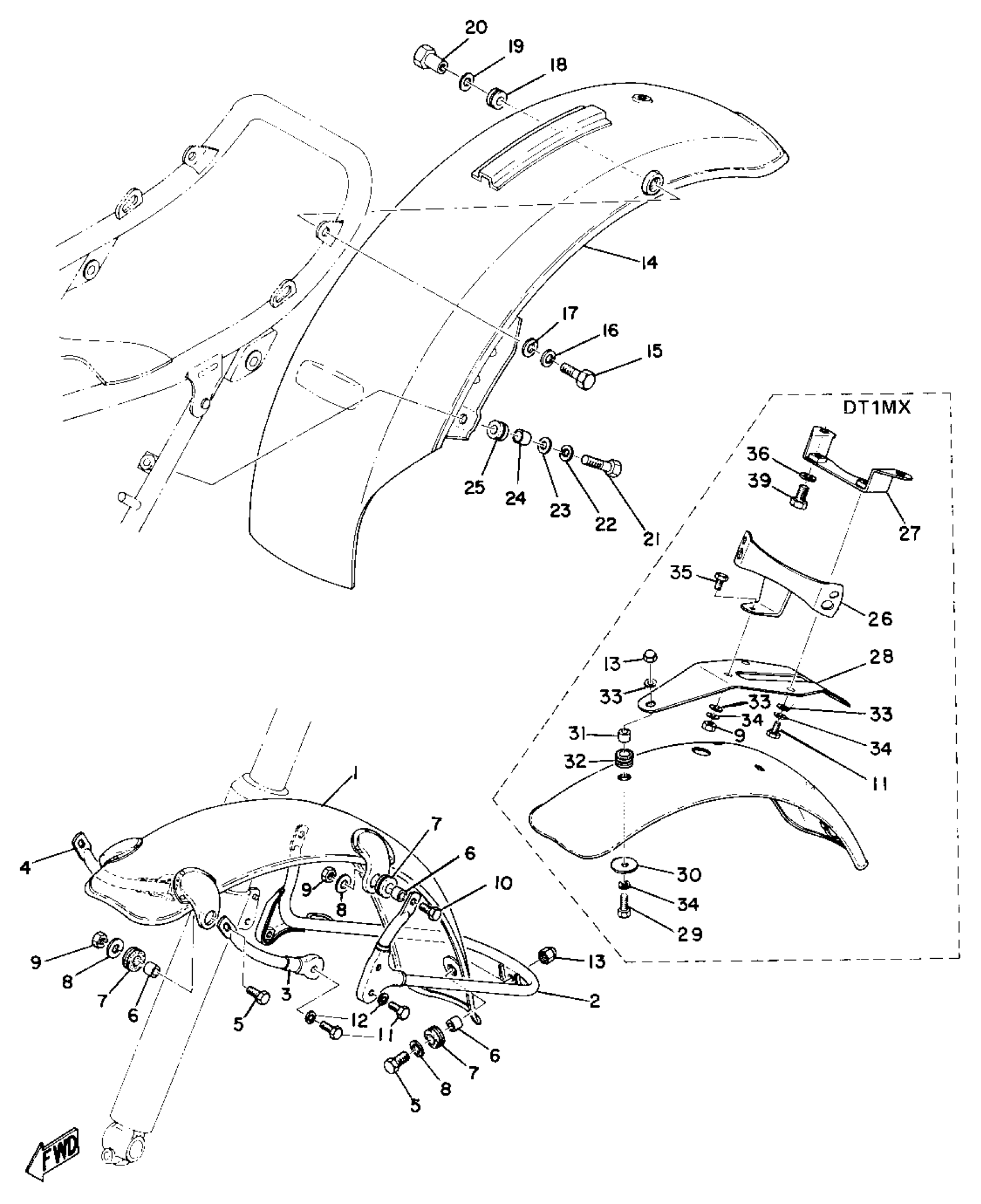

Yamaha DT1MX (DT1MX) 1971 FRONT FENDER & REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

(214-21510-00-35)

Unavailable

1

FENDER, FRONT

(284-21510-00-35)

Unavailable

2

BRACKET, FENDER

(214-21512-00-93)

Unavailable

3

STAY, FENDER 1

(214-21513-00-00)

Unavailable

4

STAY, FENDER 2

(214-21514-00-00)

Unavailable

5

BOLT, HEXAGON

97017-06020-00

$4.06

6

COLLAR (J10)

90387-06026-00

$8.49

7

GROMMET 839774310000

90480-14023-00

$7.49

8

WASHER, PLATE

90201-06M08-00

Unavailable

9

NUT, HEXAGON

95380-06600-00

Unavailable

9

NUT, HEXAGON

95380-06600-00

Unavailable

10

BOLT, HEXAGON

97017-06025-00

$4.24

11

BOLT (661)

97013-06012-00

$5.60

11

BOLT (661)

97013-06012-00

$5.60

12

WASHER, SPRING

92995-06100-00

Unavailable

13

NUT (J17)

95380-06800-00

Unavailable

13

NUT (J17)

95380-06800-00

Unavailable

14

FENDER, REAR

(275-21610-00-35)

Unavailable

15

BOLT, HEXAGON

97017-06020-00

$4.06

15

BOLT, HEXAGON

97017-06020-00

$4.06

16

WASHER, SPRING

92995-06100-00

Unavailable

16

WASHER, SPRING

92995-06100-00

Unavailable

17

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

17

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

18

DAMPER, REAR

168-21639-00-00

Unavailable

19

WASHER, PLATE

90201-15239-00

Unavailable

20

NUT, REAR FENDER

(275-21635-00-00)

Unavailable

21

BOLT, HEXAGON

97017-06025-00

$4.24

22

WASHER, SPRING

92995-06100-00

Unavailable

23

WASHER, PLATE

90201-06380-00

Unavailable

24

COLLAR (J10)

90387-06026-00

$8.49

25

GROMMET (1E5)

90480-13163-00

Unavailable

25

GROMMET 839774310000

90480-14023-00

$7.49

26

STAY, FENDER 1

(284-21513-00-35)

Unavailable

27

STAY, FENDER 2

284-21514-00-35

Unavailable

28

BRACKET, FENDER

(284-21512-00-35)

Unavailable

29

BOLT, HEXAGON

97017-06020-00

$4.06

30

WASHER, PLATE

90201-06380-00

Unavailable

31

COLLAR(8R4)

90387-062N2-00

Unavailable

32

GROMMET (1E5)

90480-13163-00

Unavailable

33

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

34

WASHER, SPRING

92995-06100-00

Unavailable

35

BOLT (661)

97013-06012-00

$5.60

36

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

37

GROMMET 285216390000

90480-14100-00

Unavailable

38

DAMPER 2

5A8-21639-00-00

Unavailable

39

BOLT(JA9)

90101-08691-00

Unavailable
