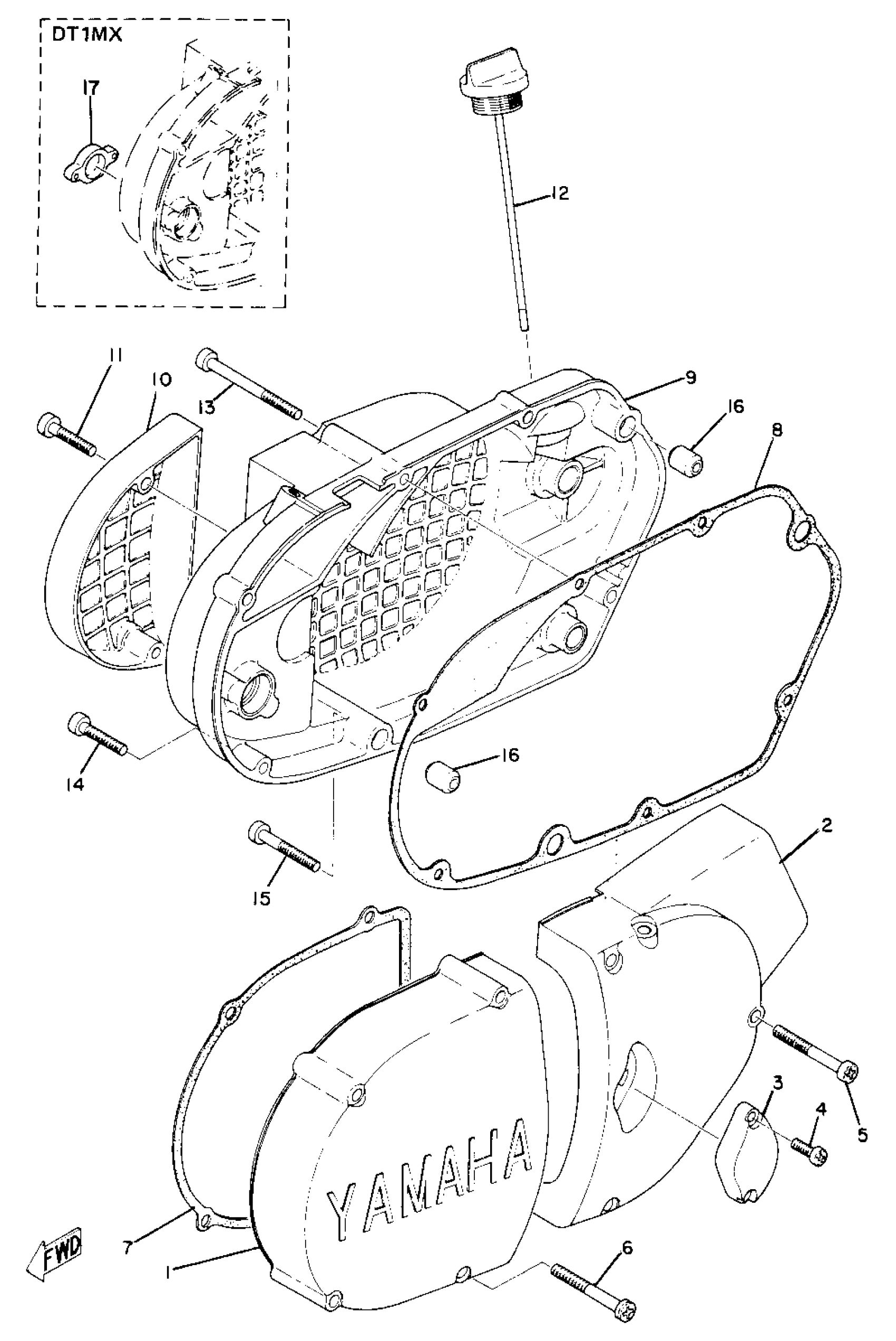

Yamaha DT1MX (DT1MX) 1971 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE L

(233-15411-00-00)

Unavailable

2

COVER, CRANKCASE R

233-15421-00-00

Unavailable

3

COVER, CAP

233-15417-00-00

Unavailable

4

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

5

SCREW PAN HEAD

98580-06550-00

$8.49

6

SCREW PAN HEAD

98580-06550-00

$8.49

7

GASKET, CRANKCASE COVER

214-15451-09-00

$19.99

8

GASKET, CRANKCASE COVER

308-15461-09-00

Unavailable

9

COVER, CRANKCASE 3

(233-15431-00-00)

Unavailable

10

COVER, OIL PUMP

(233-15416-00-00)

Unavailable

11

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

12

PLUG, OIL

(214-15363-00-00)

Unavailable

13

SCREW PAN HEAD

98580-06565-00

Unavailable

14

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

15

SCREW PAN HEAD

98580-06040-00

$8.49

16

PIN, DOWEL

99530-12016-00

Unavailable

17

COVER, PUMP UNIT

161-15426-00-00

Unavailable
