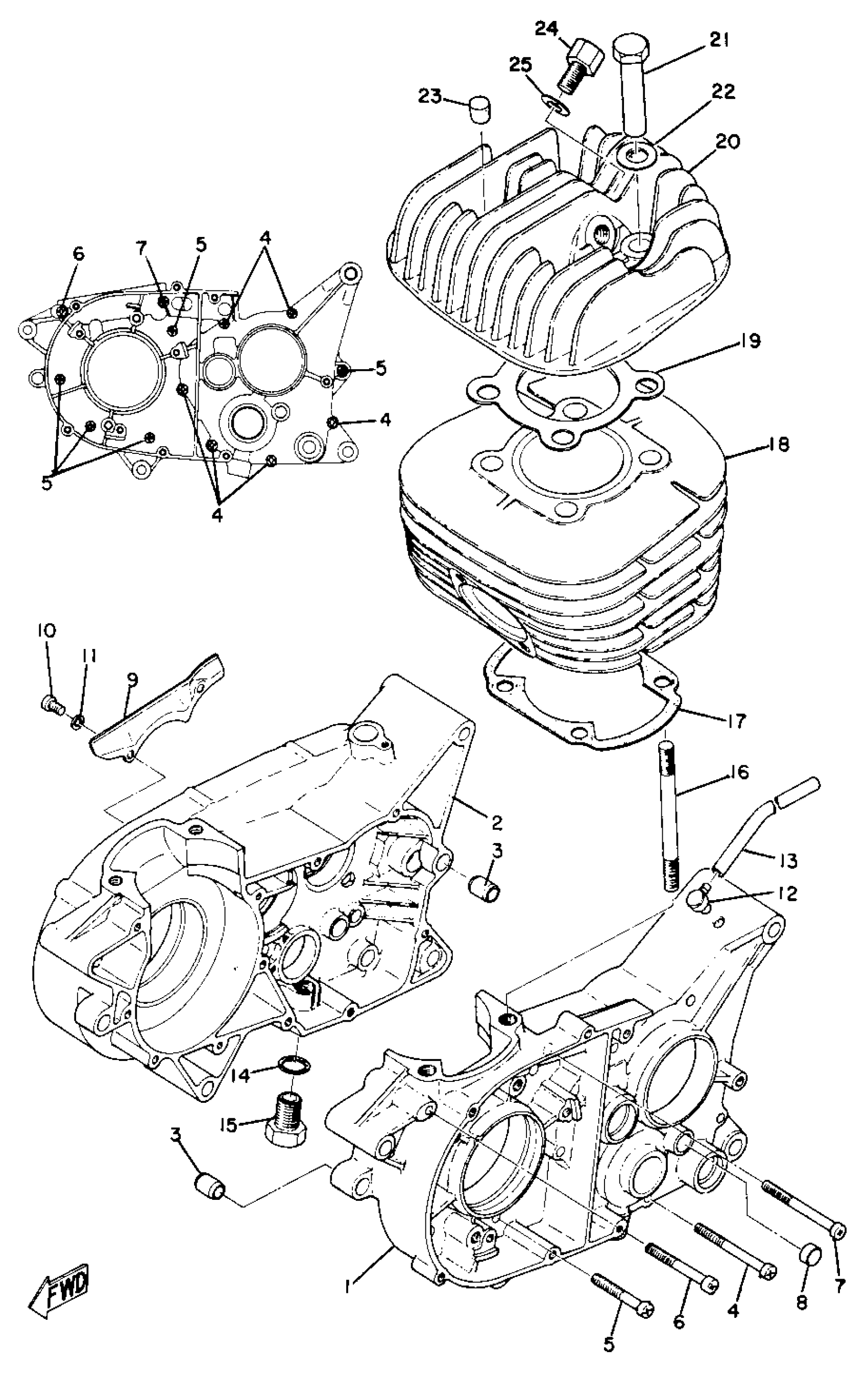

Yamaha DT1MX (DT1MX) 1971 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

(291-15111-00-00)

Unavailable

2

CRANKCASE 2

(291-15121-00-00)

Unavailable

2

CRANKCASE 2

(291-15121-00-00)

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

SCREW PAN HEAD

98580-06565-00

Unavailable

5

SCREW PAN HEAD

98580-06545-00

$5.60

6

SCREW, BIND (JH1)

98580-06560-00

Unavailable

7

SCREW PAN HEAD

98580-06565-00

Unavailable

8

PLUG, BLIND

214-15385-00-00

Unavailable

9

COVER

(214-15492-00-00)

Unavailable

10

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

11

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

12

BREATHER

583-15371-00-00

$6.99

13

HOSE(7EG)

90446-07241-00

$10.49

14

WASHER, PROTECTOR

4F4-14766-00-00

$6.99

15

BOLT

90109-14385-00

Unavailable

16

BOLT, STUD (214-11361-00)

90116-10089-00

Unavailable

17

GASKET, CYLINDER

214-11351-09-00

Unavailable

18

CYLINDER 1

(233-11311-01-00)

Unavailable

18

CYLINDER 1

(285-11311-00-00)

Unavailable

19

GASKET, CYLINDER HEAD

214-11181-09-00

Unavailable

20

HEAD, CYLINDER 1

(233-11111-01-00)

Unavailable

20

NO LONGER AVAILABLE

285-11111-00-00

Unavailable

21

NUT, SPEC''L SHAPE (214-11171-00)

90179-10178-00

Unavailable

22

WASHER, PLATE (3X3)

90201-15797-00

Unavailable

23

ABSORBER 1

(214-11161-00-00)

Unavailable

24

PLUG, BLIND

90340-14022-00

Unavailable

25

GASKET

214-11198-01-00

Unavailable

25

PLUG, BLIND

214-15385-00-00

Unavailable

25

BRG,R-B 6203 42MM 70G KY

93306-20306-00

Unavailable

25

CIRCLIP(5U8)

99009-42500-00

Unavailable
