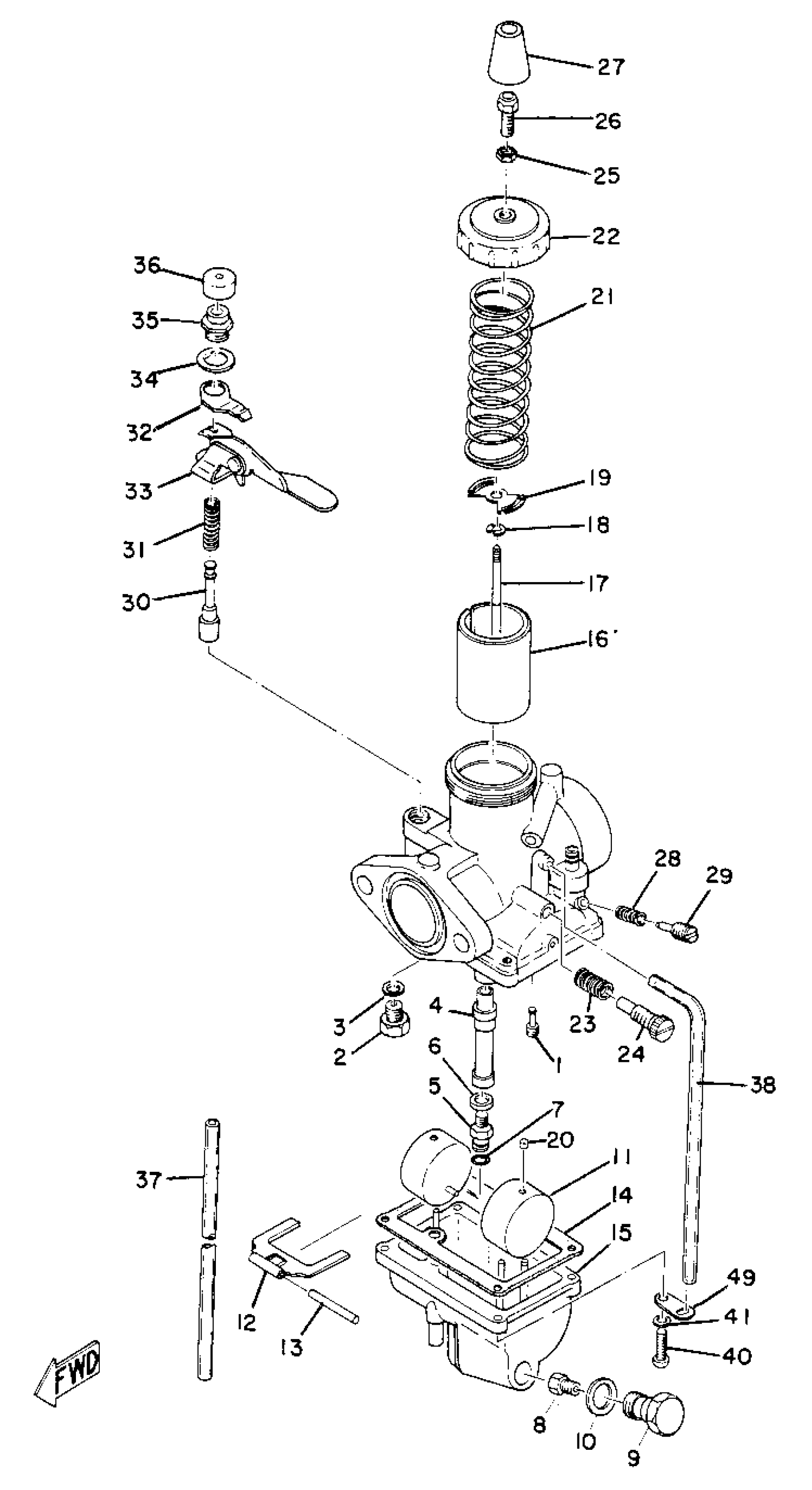

Yamaha DT1MX (DT1MX) 1971 CARBURETOR Diagram

#

Description
Price

1

JET, PIL0T(# 35)

193-14142-35-00

$9.99

1

JET, PILOT (# 80)

193-14142-80-00

Unavailable

1

CARBURETOR ASSEMBLY 1

(214-14101-61-00)

Unavailable

1

CARBURETOR ASSEMBLY 1

(292-14101-60-00)

Unavailable

2

VALVE SEAT ASSY

168-14190-20-00

$35.99

2

NEEDLE VALVE ASSEMBLY

(285-14190-25-00)

Unavailable

3

WASHER, VALVE SEAT

214-14195-00-00

$7.99

4

NOZZLE, MAIN

(145-14141-32-00)

Unavailable

4

. NOZZLE, MAIN

(214-14141-32-00)

Unavailable

5

. SETTER, NEEDLE JET

214-14145-00-00

Unavailable

6

WASHER,MAIN JET

137-14153-00-00

$7.99

7

O-RING

214-14147-00-00

$7.99

8

JET, MAIN #140

137-14143-28-A0

Unavailable

8

JET, MAIN #150

137-14143-30-00

$7.99

8

JET, MAIN #160

137-14143-32-00

$9.99

8

JET, MAIN #170

137-14143-34-00

Unavailable

8

JET,MAIN #190

137-14143-38-A0

Unavailable

8

JET, MAIN #200

137-14143-40-A1

Unavailable

8

JET, MAIN #210

137-14143-42-A1

Unavailable

9

. BOLT, BANJO

(214-14166-00-00)

Unavailable

10

GASKET

286-14198-00-00

Unavailable

11

. FLOAT

214-14185-00-00

Unavailable

11

FLOAT

(285-14185-00-00)

Unavailable

12

. ARM, FLOAT

214-14187-00-00

Unavailable

13

PIN, FLOAT

127-14186-00-00

Unavailable

14

GASKET, FLOAT CHAMBER

500-14184-00-00

Unavailable

15

. BODY, FLOAT CHMBR 1

214-14181-12-00

Unavailable

15

FLOAT

(285-14185-00-00)

Unavailable

16

VALVE, THROTTLE 1

(211-14112-25-00)

Unavailable

16

VALVE, THROTTLE 1

(211-14112-35-00)

Unavailable

17

. NEEDLE

168-14116-01-00

Unavailable

17

. NEEDLE

168-14116-07-00

Unavailable

18

CLIP

3FA-14137-00-00

Unavailable

19

SEAT, SPRING

(214-14136-00-00)

Unavailable

20

CAP

214-14118-00-00

Unavailable

21

SPRING, THRTL VALVE

(168-14131-00-00)

Unavailable

22

TOP, MIXING CHAMBER

(214-14158-01-00)

Unavailable

23

SPRING, THROTTLE STOP

137-14133-00-00

Unavailable

24

THROTTLE SCREW SET

23X-14103-00-00

Unavailable

25

NUT, WIRE ADJUSTING

802-14161-00-00

Unavailable

26

CABLE ADJUST SCREW SET

12G-14106-00-00

Unavailable

27

CAP

8A7-14169-00-00

Unavailable

28

SPRING, AIR ADJUSTING

127-14134-00-00

Unavailable

29

AIR SCREW SET

23X-14104-00-00

Unavailable

30

PLUNGER, STARTER

132-14171-00-00

Unavailable

31

SPRING, PLUNGER

156-14135-00-00

Unavailable

32

. PLATE, STARTER LEVER

(170-14178-00-00)

Unavailable

33

. LEVER, STARTER 1

(248-14175-00-00)

Unavailable

34

WASHER, STARTER LVR

(132-14179-00-00)

Unavailable

35

CAP, PLUNGER

(132-14174-00-00)

Unavailable

36

COVER, PLUNGER CAP

132-14173-00-00

Unavailable

37

PIPE, AIR VENT

183-14197-01-00

Unavailable

38

HOSE (L200)

90445-05N13-00

Unavailable

39

PLATE

132-14146-00-00

Unavailable

40

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

41

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable
