1980 Yamaha DT175G (DT175G) Headlight Diagram

← All diagrams

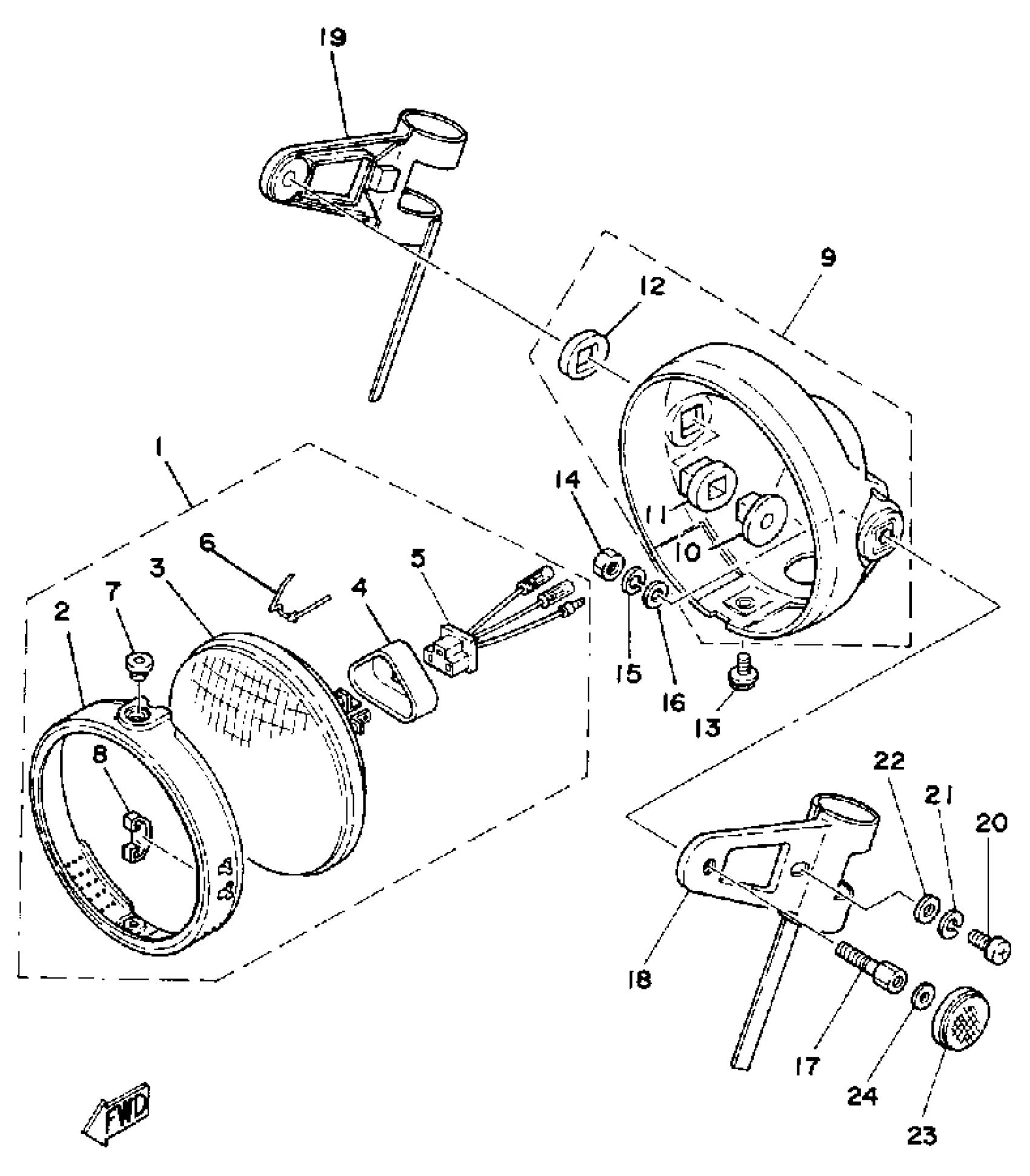

Find the part on the Headlight diagram for your 1980 Yamaha DT175G (DT175G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha DT175G (DT175G) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSEMBLY

(3J0-84110-60-00)

1
Out of stock

2

RING, RETAINING

3J0-84195-60-00

—
Out of stock

3

. LENS ASSEMBLY

2A6-84120-60-00

1
Out of stock

4

. COVER, SOCKET

341-84397-61-00

1
Out of stock

5

SOCKET

371-84312-60-00

—
Out of stock

6

SPRING, REFLECTOR SET

1M1-84124-60-00

1
Out of stock

7

COLLAR

1M1-84133-60-00

—
Out of stock

8

. SPACER

498-84128-60-00

1
Out of stock

9

BODY ASSY, HEADLIGHT

3J0-84130-60-00

—
Out of stock

10

COLLAR, BODY FITTING

498-84145-60-00

1
Out of stock

11

DAMPER, HEAD LAMP A

498-84163-60-00

1
Out of stock

12

DAMPER

1M1-84164-60-00

1
Out of stock

13

BOLT, HEXAGON

1M1-84137-60-00

1
Out of stock

14

NUT(6L2)

95333-08600-00

1
Out of stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

16

WASHER, PLAIN

92990-08200-00

1
Out of stock

17

BOLT

90109-08448-00

1
Out of stock

18

STAY, HEADLIGHT 1

2N4-84118-00-00

1
Out of stock

19

STAY, HEADLIGHT 2

2N4-84119-00-00

1
Out of stock

20

SCREW PAN HEAD

98580-06020-00

—
Out of stock

21

WASHER, SPRING

92995-06100-00

1
Out of stock

22

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

23

REFLECTOR, FRONT 1

355-85111-01-00

—
Out of stock

24

WASHER, PLATE(3AJ)

90202-05191-00

—
Out of stock
