1979 Yamaha DT175F (DT175F) Oil Pump Diagram

← All diagrams

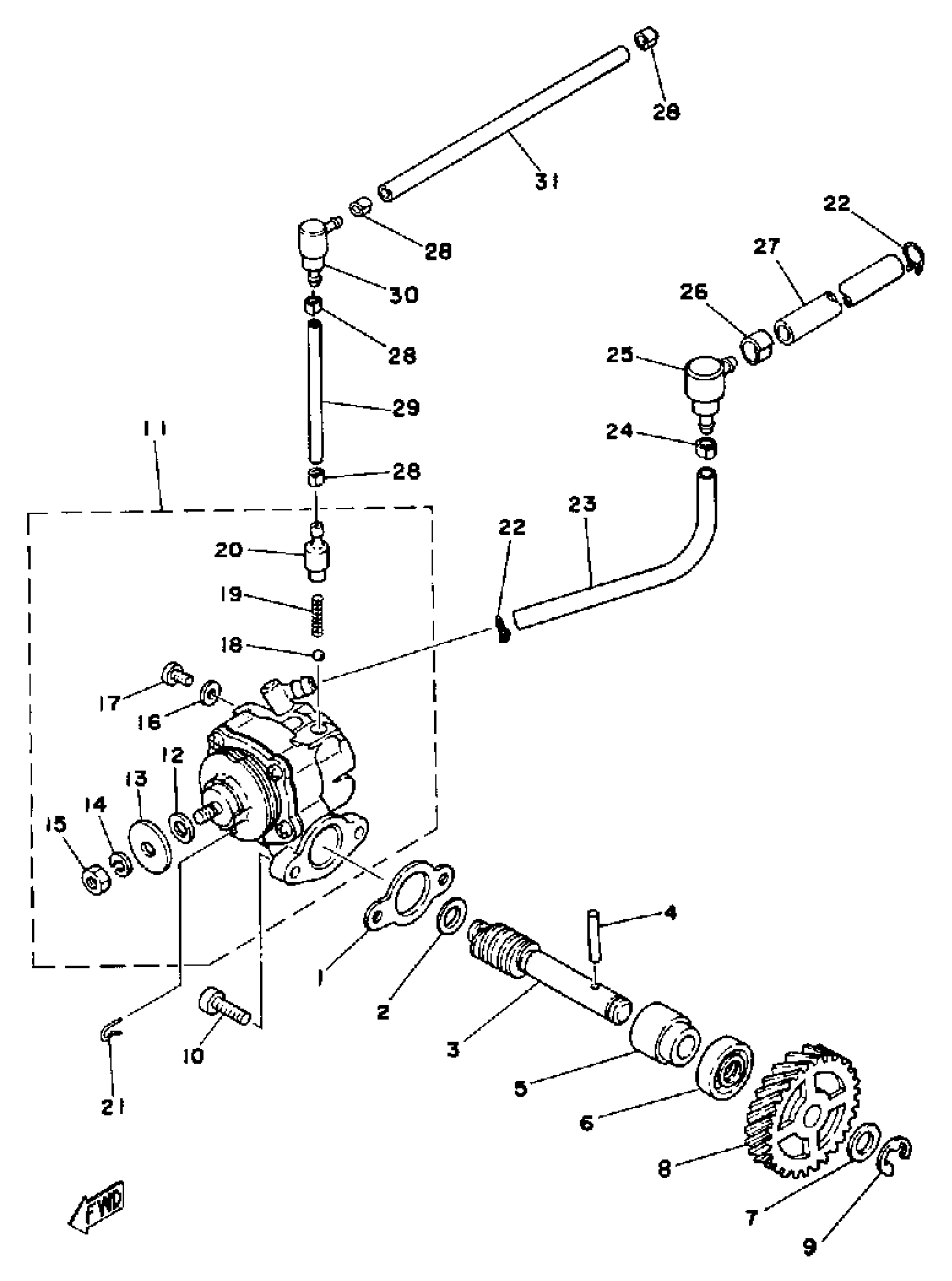

Find the part on the Oil Pump diagram for your 1979 Yamaha DT175F (DT175F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha DT175F (DT175F) Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

2

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

3

SHAFT, WORM

(558-13175-00-00)

1
Out of stock

4

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

5

METAL, WORM SHAFT OUTER

137-13176-00-00

—
Out of stock

6

OIL SEAL (10X22X7-137)

93101-10002-00

1
Out of stock

7

WASHER, PLATE(52H)

90201-105J4-00

1
Out of stock

8

GEAR, DRIVE

2A6-13178-00-00

—
Out of stock

9

CIRCLIP(2R6)

99001-08600-00

1
Out of stock

10

SCREW, PAN HEAD(6B0)

97885-05016-00

1
Out of stock

11

OIL PUMP ASSEMBLY

2A6-13101-00-00

1
Out of stock

12

SHIM,PLUNGER

137-13137-00-03

1
Out of stock

12

SHIM,PLUNGER

137-13137-00-05

1
Out of stock

12

SHIM,PLUNGER

137-13137-00-10

1
Out of stock

13

PLATE, ADJUSTING

137-13138-01-00

—
Out of stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

15

NUT, HEXAGON (663)

95380-05600-00

—
Out of stock

16

GASKET 137131870000

90430-04004-00

—
Out of stock

17

SCREW, BIND

98980-04008-00

1
Out of stock

18

BALL

93505-32002-00

—
Out of stock

19

SPRING (278-13169-00)

90501-02018-00

—
Out of stock

20

NOZZLE

402-13552-00-00

—
Out of stock

21

CLIP (PUMP ADJUSTING PULLEY)

363-13133-01-00

—
Out of stock

22

CLIP 101235600

90467-08003-00

—
Out of stock

23

HOSE (L200)

90445-07176-00

—
Out of stock

24

CLIP (2A6)

90468-02025-00

—
Out of stock

25

CONNECTOR, SCTN PPE

2A6-13115-01-00

1
Out of stock

26

CLIP (2A6)

90468-02078-00

—
Out of stock

27

HOSE (L420)

90445-092K1-00

—
Out of stock

28

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

29

HOSE (L200)

90445-05N13-00

—
Out of stock

30

CONCT, DELIVERY PPE

2A6-13164-01-00

1
Out of stock

31

HOSE (L200)

90445-05N13-00

—
Out of stock
