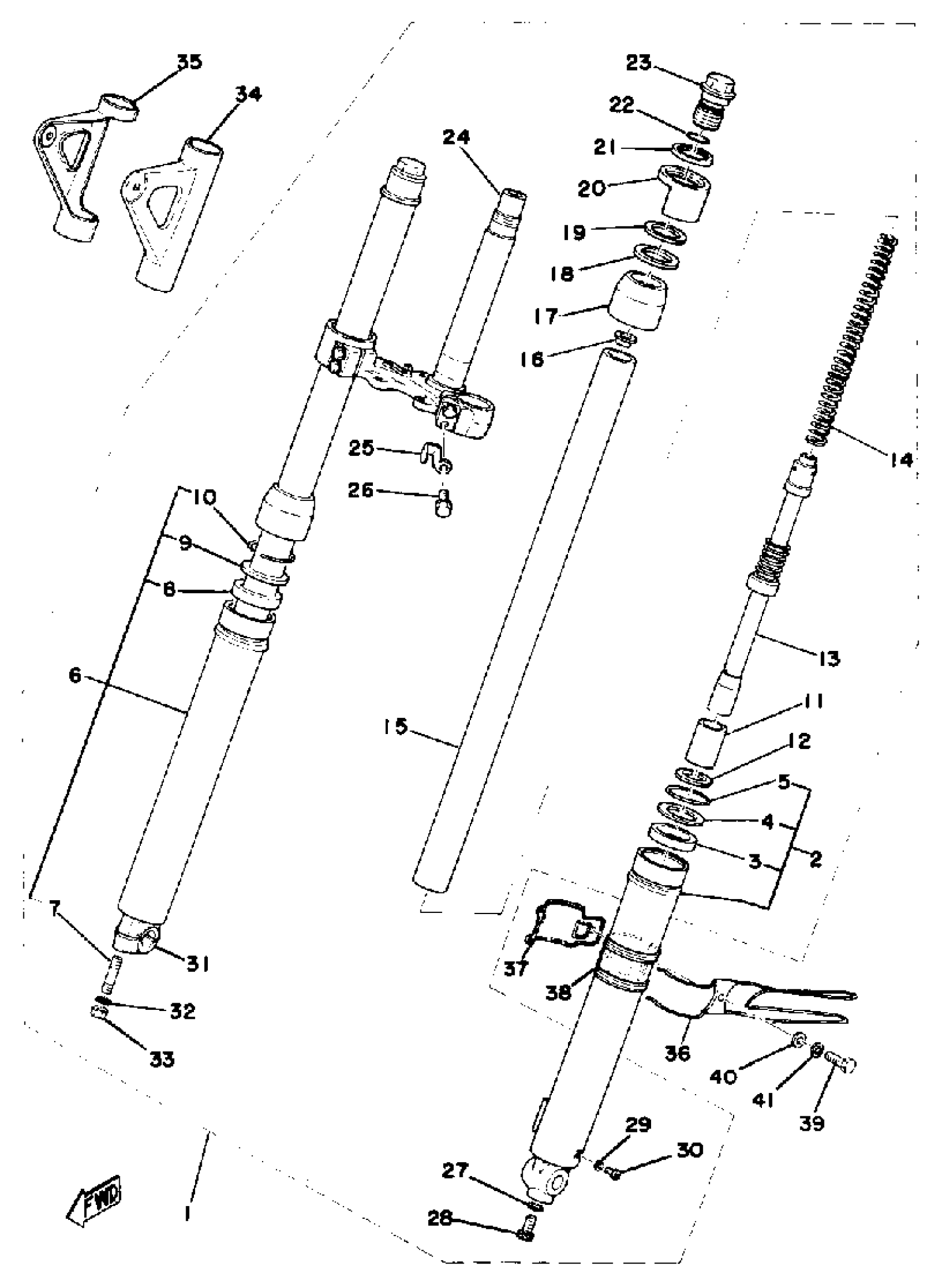

1976 Yamaha DT175C (DT175C) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1976 Yamaha DT175C (DT175C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha DT175C (DT175C) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(559-23101-00-00)

1
Out of stock

2

TUBE, OUTER 1

(559-23126-00-00)

1
Out of stock

3

OIL SEAL

137-23145-01-00

1

$38.06

In stock

4

WASHER, OIL SEAL

(315-23146-50-00)

1
Out of stock

5

CLIP, OIL SEAL

(315-23156-50-00)

1
Out of stock

6

TUBE, OUTER 2

(559-23136-00-00)

1
Out of stock

7

BOLT, STUD (278)

90116-08261-00

1
Out of stock

8

OIL SEAL

137-23145-01-00

1

$38.06

In stock

9

WASHER, OIL SEAL

(315-23146-50-00)

1
Out of stock

10

CLIP, OIL SEAL

(315-23156-50-00)

1
Out of stock

11

PISTON, FRONT FORK

(535-23171-00-00)

1
Out of stock

12

CIRCLIP

(535-23183-01-00)

1
Out of stock

13

CYLINDER, FRTFRK

(525-23170-00-00)

1
Out of stock

14

SPRING, FRONT FORK

(559-23141-00-00)

1
Out of stock

15

TUBE, INNER 1

(525-23124-00-00)

1
Out of stock

16

SEAT, SPRING UPPER

(304-23142-50-00)

1
Out of stock

17

SEAL, DUST

535-23144-00-00

—

$28.69

In stock

18

. UNAVAILABLE IN PRICE BOOK

437-23165-00-00

1
Out of stock

19

WASHER, LIGHT STAY

(437-23161-00-00)

1
Out of stock

20

COVER, OUTER 1

(304-23122-50-00)

1
Out of stock

21

GUIDE, COVER UPPER

(248-23115-01-00)

1
Out of stock

22

PACKING(O-RING)

146-23114-00-00

—
Out of stock

23

BOLT, CAP

(2K5-23111-00-00)

1
Out of stock

24

UNDER BRACKET

(559-23340-00-33)

1
Out of stock

25

HOLDER, CABLE 1

(256-23318-60-00)

1
Out of stock

26

BOLT, AXLE HOLDER

18G-23128-00-00

—

$7.77

In stock

27

GASKET

(214-23158-00-00)

1
Out of stock

28

BOLT,SOCKET

91314-08020-00

—

$6.17

In stock

29

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

30

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

31

. HOLDER, AXLE

315-23167-51-00

1
Out of stock

32

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

33

NUT, HEXAGON

(90170-08176-00)

1
Out of stock

34

COVER, UPPER 1

(438-23121-00-20)

1
Out of stock

35

COVER, UPPER 2

(438-23131-00-20)

1
Out of stock

36

HOLDER, CABLE 1

(559-23318-00-00)

1
Out of stock

37

HOLDER, CABLE 2

(559-23319-00-00)

1
Out of stock

38

DAMPER

559-21541-00-00

—
Out of stock

39

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

40

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

41

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
