1974 Yamaha DT175A (DT175A) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1974 Yamaha DT175A (DT175A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

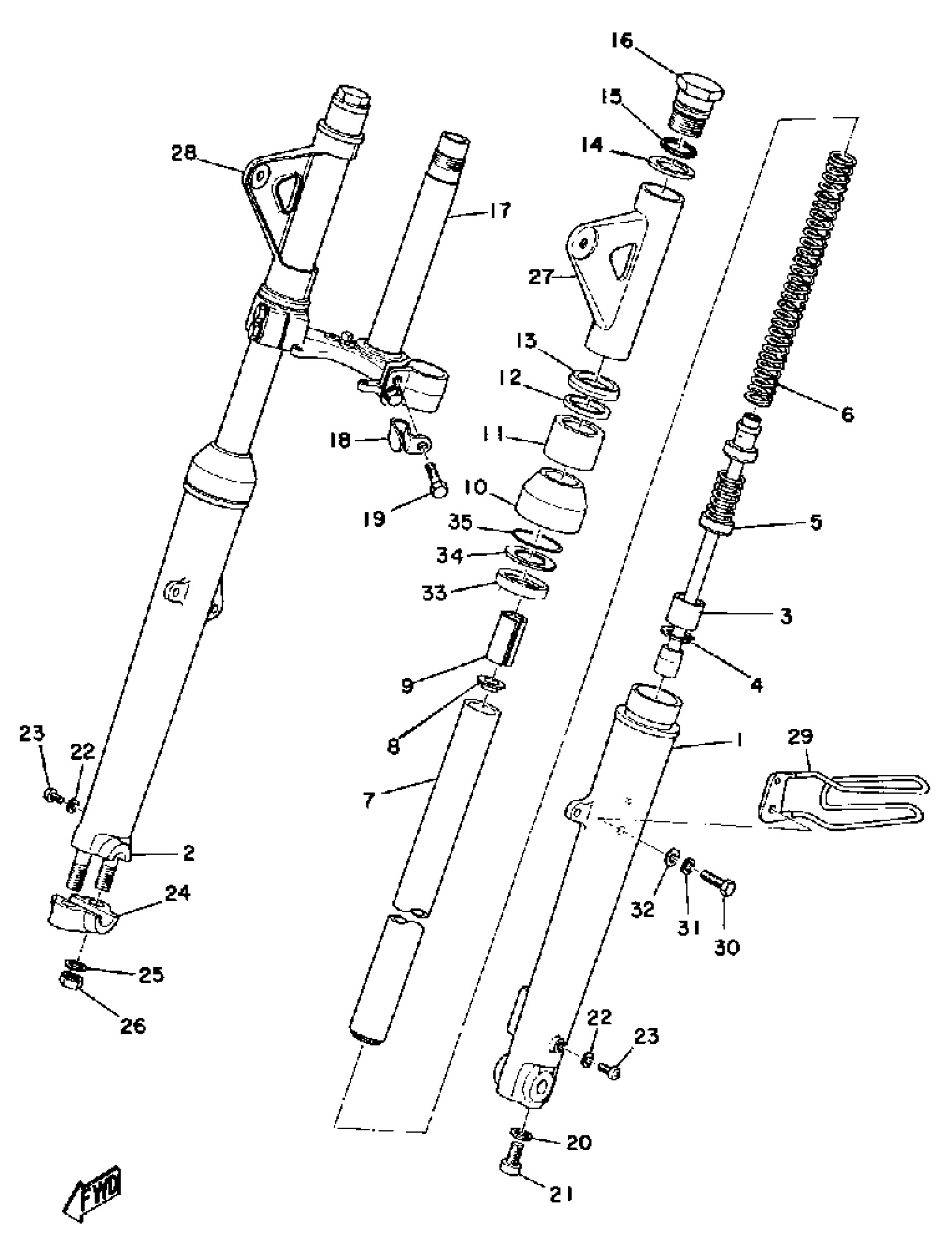

1974 Yamaha DT175A (DT175A) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TUBE, OUTER 1

(315-23126-50-00)

1
Out of stock

1

FRONT FORK ASSEMBLY

(443-23101-01-00)

1
Out of stock

2

TUBE, OUTER 2

(315-23136-50-00)

1
Out of stock

3

PISTON, FRONT FORK

(315-23171-50-00)

1
Out of stock

4

CIRCLIP

(535-23183-01-00)

1
Out of stock

5

CYLINDER, FRTFRK

(443-23170-01-00)

1
Out of stock

6

. SPRING, FRONT FORK

318-23141-00-00

1
Out of stock

7

TUBE, INNER 1

(315-23124-50-00)

1
Out of stock

8

SEAT, SPRING UPPER

(248-23142-00-00)

1
Out of stock

9

SPACER

(443-23118-01-00)

1
Out of stock

10

SEAL, DUST

248-23144-00-00

1

$28.22

In stock

11

COVER, OUTER 1

(248-23122-01-00)

1
Out of stock

12

. GASKET (LAMP STAY)

291-23163-61-00

1
Out of stock

13

GUIDE, COVER LOWER

(248-23116-01-00)

1
Out of stock

14

GUIDE, COVER UPPER

(248-23115-01-00)

1
Out of stock

15

PACKING(O-RING)

146-23114-00-00

—
Out of stock

16

BOLT, CAP

(2K5-23111-00-00)

1
Out of stock

17

UNDER BRACKET

(460-23340-30-33)

1
Out of stock

18

HOLDER, CABLE 1

(256-23318-60-00)

1
Out of stock

19

BOLT, AXLE HOLDER

18G-23128-00-00

—

$7.77

In stock

20

GASKET

(214-23158-00-00)

1
Out of stock

21

BOLT,SOCKET

91314-08020-00

—

$6.17

In stock

22

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

23

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

24

. HOLDER, AXLE

315-23167-51-00

1
Out of stock

25

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

26

NUT(6L2)

95333-08600-00

—

$3.20

In stock

27

COVER, UPPER 1

(438-23121-00-20)

1
Out of stock

28

COVER, UPPER 2

(438-23131-00-20)

1
Out of stock

29

HOLDER, CABLE 1

(437-23318-00-00)

1
Out of stock

30

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

31

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

32

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

33

OIL SEAL

137-23145-01-00

—

$38.06

In stock

34

CLIP, OIL SEAL

(315-23156-50-00)

1
Out of stock

35

WASHER, OIL SEAL

(315-23146-50-00)

1
Out of stock
