1981 Yamaha DT125H (DT125H) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1981 Yamaha DT125H (DT125H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

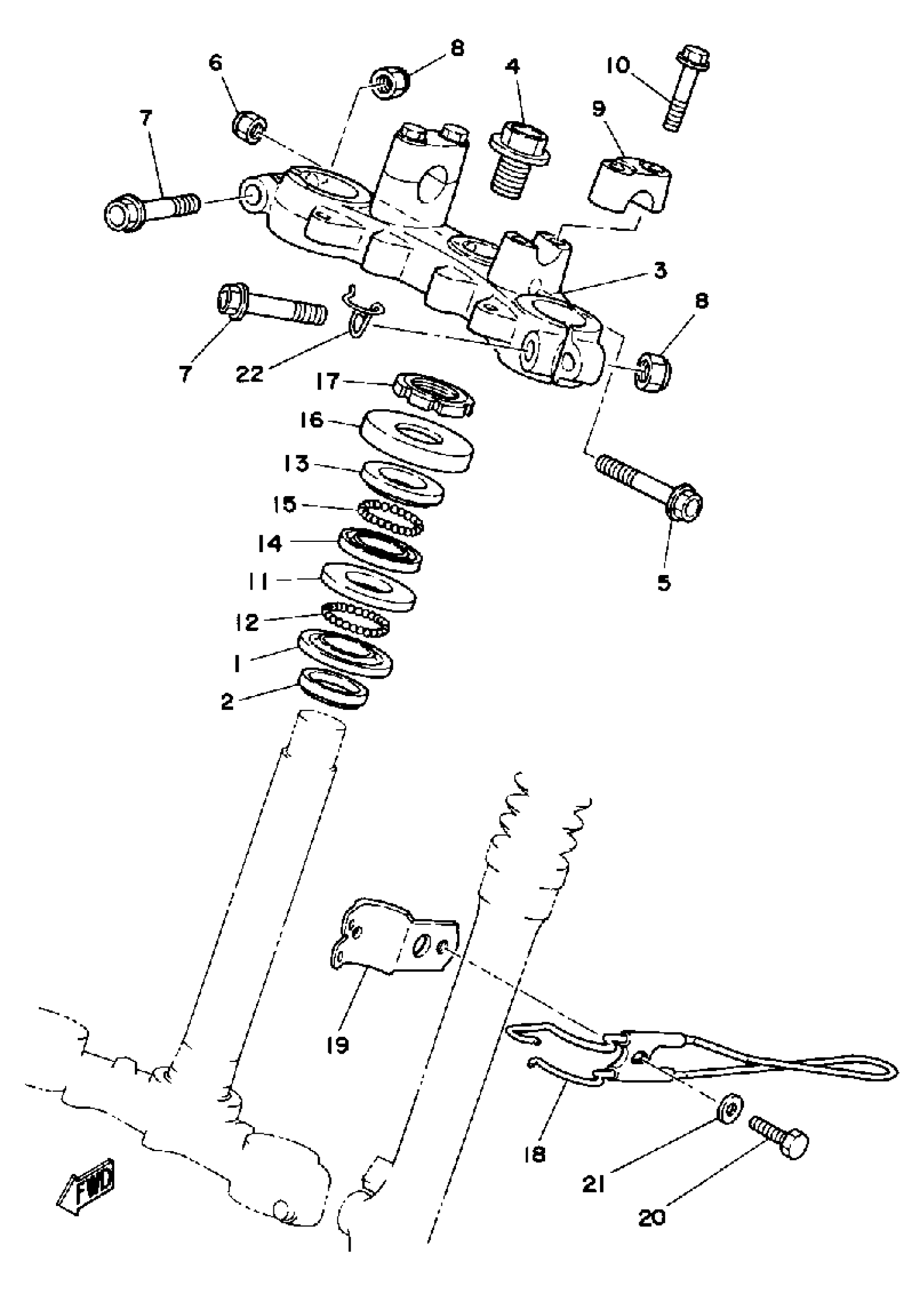

1981 Yamaha DT125H (DT125H) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 1

B6E-23411-00-00

1
Out of stock

2

SEAL, DUST

164-23462-00-00

1
Out of stock

3

CROWN, HANDLE

(3J0-23435-00-98)

1
Out of stock

4

BOLT, WASHER BASED HEAD (10V)

90105-14220-00

1
Out of stock

5

BOLT, FLANGE

95817-08055-00

1
Out of stock

6

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1
Out of stock

7

BOLT, FLANGE

95817-10060-00

1
Out of stock

8

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

1
Out of stock

9

HOLDER, HANDLE UPPER

1E6-23441-00-00

1
Out of stock

10

BOLT, FLANGE

95817-08035-00

1
Out of stock

11

RACE, BALL 2

B6E-23412-00-00

1
Out of stock

12

BALL

93501-04011-00

1
Out of stock

13

RACE, BALL 1

BP2-23411-00-00

1
Out of stock

14

RACE, BALL 2

BP2-23412-00-00

1
Out of stock

15

BALL

93503-16003-00

1
Out of stock

16

COVER BALL RACE

10V-23416-01-00

—
Out of stock

17

NUT

90179-25004-00

—
Out of stock

18

HOLDER, CABLE 1

(3J0-23318-00-00)

1
Out of stock

19

HOLDER, CABLE 2

2A6-23319-00-00

1
Out of stock

20

BOLT, HEXAGON

97017-06025-00

—
Out of stock

21

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

22

GUIDE, CABLE

(4F2-23389-00-00)

1
Out of stock
