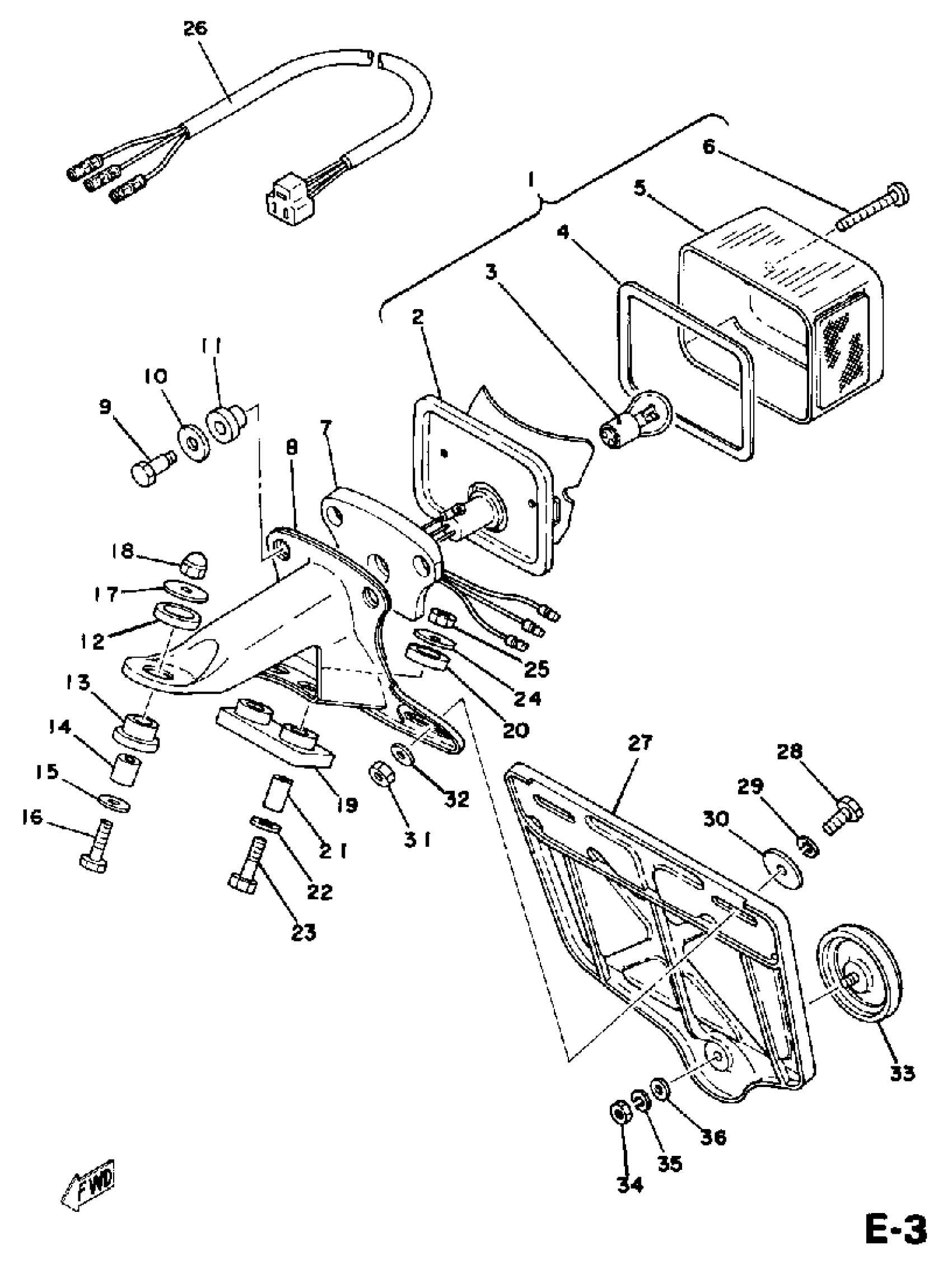

1978 Yamaha DT125E (DT125E) Tailight Diagram
Find the part on the Tailight diagram for your 1978 Yamaha DT125E (DT125E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
TAILLIGHT UNIT ASSEMBLY
1M1-84510-60-00
2
. BASE, TAILLIGHT
1M1-84511-60-00
3
. BULB
1M1-84514-60-00
7
SEAT, BASE
1M1-84512-60-00
8
BRACKET, LICENCE
2A6-84551-60-33
10
WASHER, SPECIAL
2H7-84754-00-00
11
DAMPER
1M1-84527-60-00
12
DAMPER
1M1-84553-10-00
13
DAMPER
1M1-84553-20-00
14
COLLAR (1M1)
90387-06553-00
19
DAMPER
1M1-84553-00-00
20
DAMPER
1M1-84553-10-00
26
CORD, TAILLIGHT
1M1-84517-00-00
27
BRACKET, REFLECT 1
1M1-85132-62-00
33
REFLECTOR, REAR 1
1M1-85131-10-00
35
YBS67-5 WASHER, SPRING
92990-05100-00
