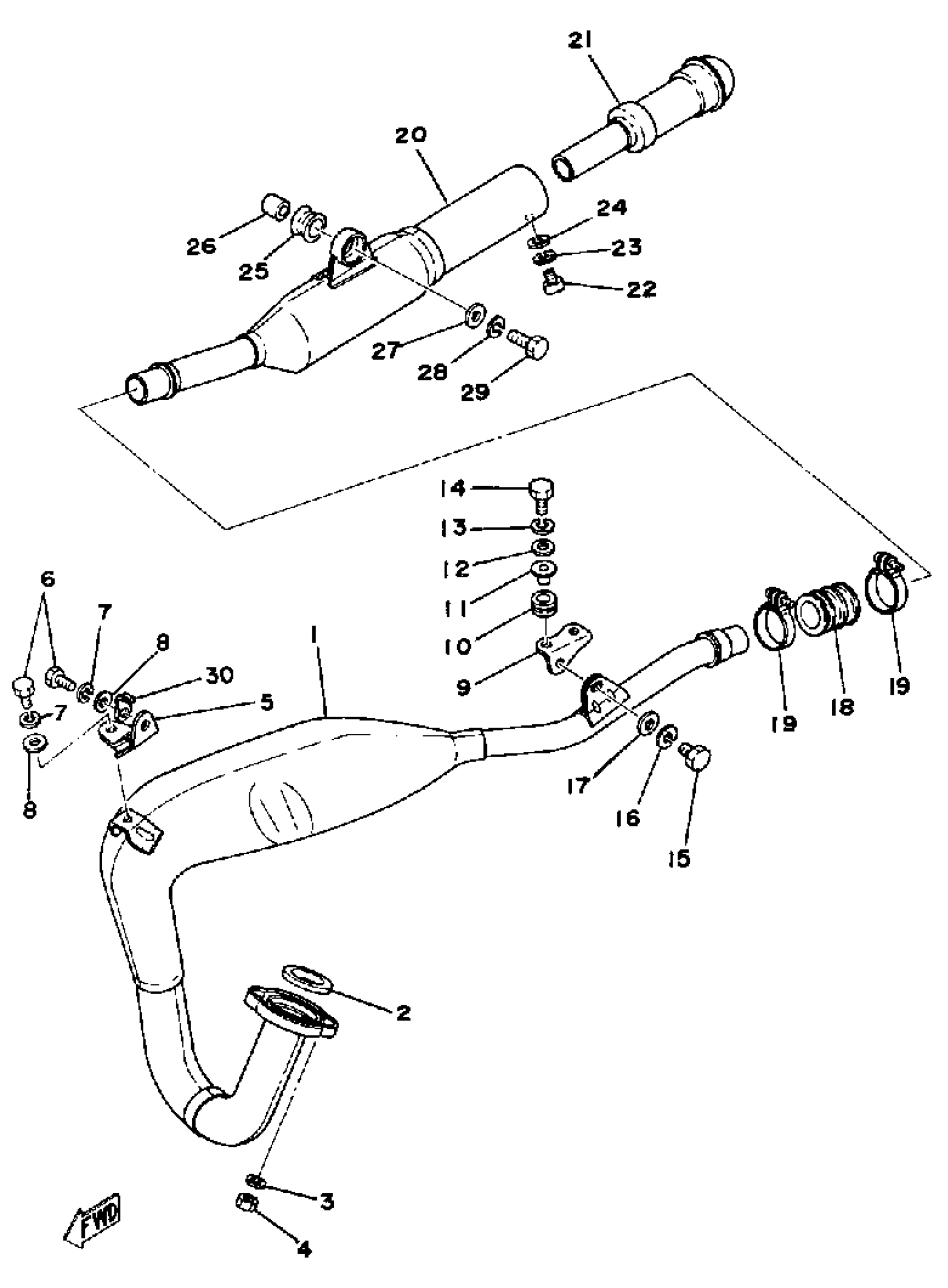

Yamaha DT125E (DT125E) 1978 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L (2A8-14610-00-00)

2A8-14610-81-00

Unavailable

2

GASKET, EXHAUST PIPE

3PA-14613-10-00

$12.08

3

WASHER, SPRING

92995-06100-00

$2.95

4

NUT, HEXAGON

95380-06600-00

$4.11

5

STAY, MUFFLER 2

2A6-14772-01-00

Unavailable

6

BOLT(JA9)

90101-08691-00

$4.65

7

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

8

.. WASHER, PLATE

92990-08600-00

$2.17

9

STAY, MUFFLER 1

5V7-14771-00-00

Unavailable

10

GROMMET 839774310000

90480-14023-00

$4.34

11

COLLAR

90387-06158-00

$5.75

12

WASHER, PLAIN (646)

92990-06600-00

$1.84

13

WASHER, SPRING

92995-06100-00

$2.95

14

BOLT, HEXAGON

97017-06025-00

$2.78

15

BOLT(JA9)

90101-08691-00

$4.65

16

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

17

.. WASHER, PLATE

92990-08600-00

$2.17

18

GASKET, MUFFLER JOINT

1W2-14714-00-00

Unavailable

19

CLAMP, HOSE

90460-37130-00

Unavailable

20

SILENCER, EXHAUST

2A6-14753-00-00

Unavailable

21

PIPE, OUTLET

1M1-14752-01-00

Unavailable

22

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

23

WASHER, SPRING

92995-06100-00

$2.95

24

WASHER, PLAIN (646)

92990-06600-00

$1.84

25

DAMPER

565-14747-00-00

Unavailable

26

COLLAR (437)

90387-08258-00

Unavailable

27

WASHER, PLATE(8AT)

90201-081R9-00

Unavailable

28

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

29

BOLT, HEXAGON

97013-08030-00

Unavailable

30

CLAMP

2A6-83596-00-00

Unavailable
