1976 Yamaha DT125C (DT125C) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1976 Yamaha DT125C (DT125C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

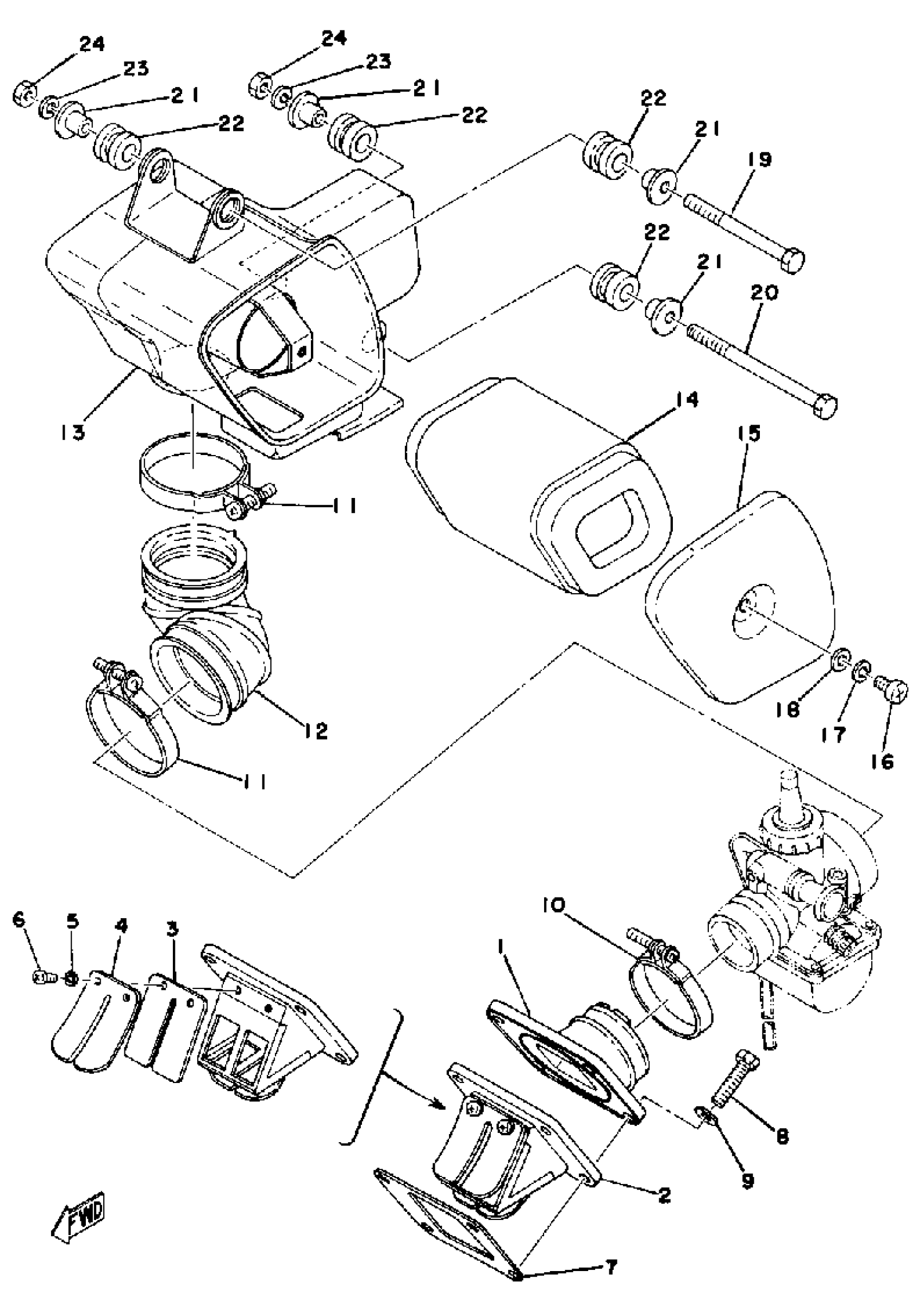

1976 Yamaha DT125C (DT125C) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR

560-13565-00-00

—
Out of stock

2

REED VALVE ASSY

53V-13610-00-00

1
Out of stock

3

VALVE, REED

314-13613-01-00

—
Out of stock

4

. STOPPER, REED VALVE

10X-13616-00-00

1
Out of stock

5

WASHER, SPRING

92990-03100-00

1
Out of stock

6

SCREW, PAN HEAD (J10)

98580-03008-00

1
Out of stock

7

GASKET, VALVE SEAT

87A-13621-00-00

1
Out of stock

8

BOLT, HEXAGON

97017-06025-00

1
Out of stock

9

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

10

CLAMP, HOSE (5H0)

90460-43179-00

1
Out of stock

11

CLAMP HOSE 278144550000

90460-49058-00

1
Out of stock

12

JOINT, AIR CLNR 1

560-14453-00-00

1
Out of stock

13

CASE, AIR CLEANER 1

(560-14411-00-00)

1
Out of stock

14

ELEMENT, AIR CLEANER

560-14451-08-00

—
Out of stock

15

CAP, CLEANER CASE 1

(560-14412-00-00)

1
Out of stock

16

SCREW PAN HEAD

98580-06010-00

—
Out of stock

17

WASHER, SPRING

92995-06100-00

1
Out of stock

18

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

19

BOLT,HEXAGON

97027-06075-00

1
Out of stock

20

BOLT, HEXAGON DEEP RECESS

97D95-06095-00

—
Out of stock

21

COLLAR 437216330000

90387-07391-00

—
Out of stock

22

GROMMET

90480-14123-00

1
Out of stock

23

WASHER, SPRING

92995-06100-00

1
Out of stock

24

NUT, HEXAGON

95380-06600-00

1
Out of stock
