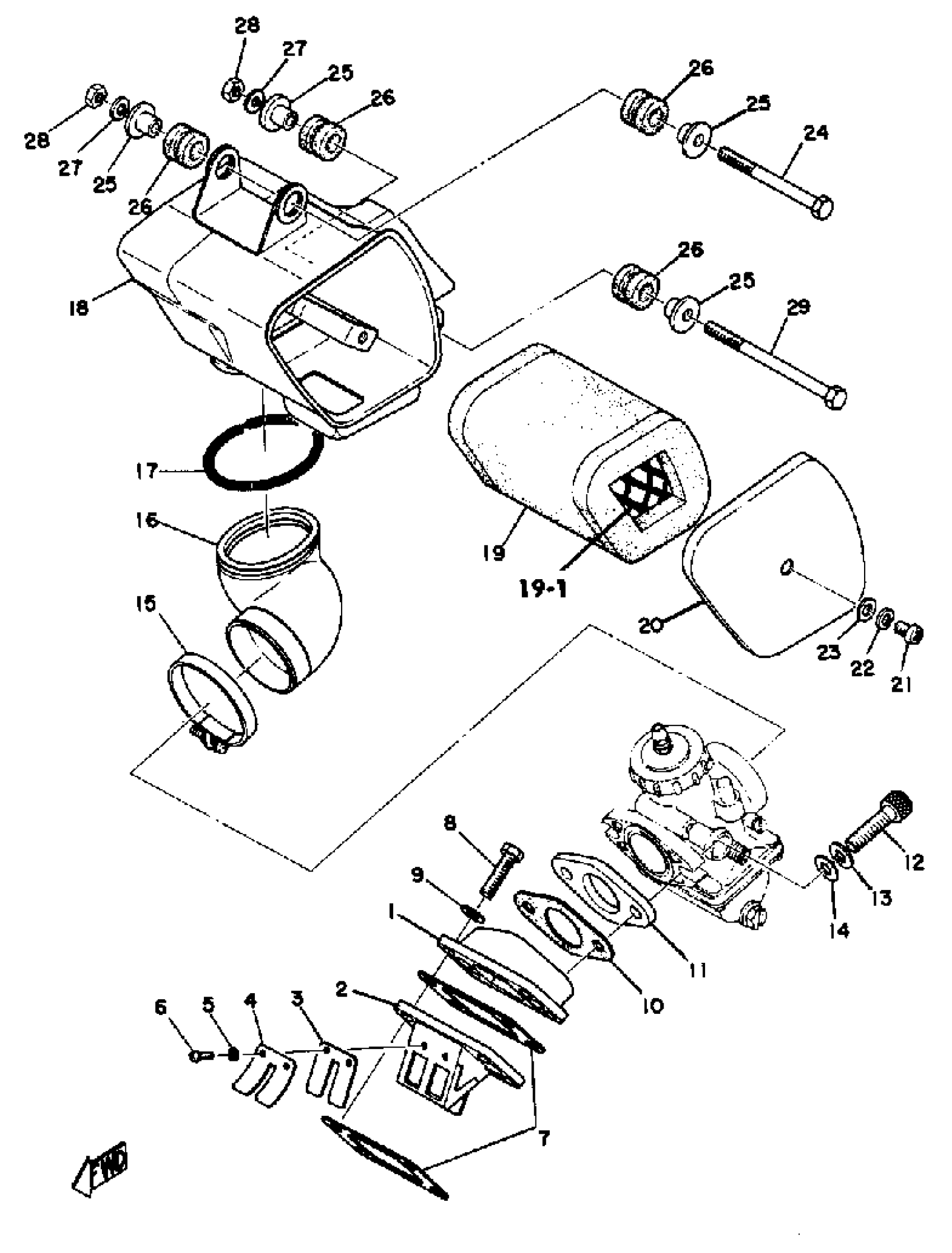

Yamaha DT125A (DT125A) 1974 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR

314-13565-00-00

Unavailable

2

REED VALVE ASSY

53V-13610-00-00

$162.47

3

VALVE, REED

314-13613-01-00

Unavailable

4

. STOPPER, REED VALVE

10X-13616-00-00

Unavailable

5

WASHER, SPRING

92990-03100-00

$5.75

6

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

7

GASKET, VALVE SEAT

87A-13621-00-00

$7.43

8

BOLT, HEXAGON

97017-06025-00

$2.78

9

WASHER, SPRING

92995-06100-00

$2.95

10

GASKET, MANIFOLD

248-13556-71-00

$7.03

11

MANIFOLD, INTAKE

315-13555-00-00

Unavailable

12

BOLT, SOCKET

91317-08030-00

$5.75

13

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

14

.. WASHER, PLATE

92990-08600-00

$2.17

15

CLAMP HOSE 278144550000

90460-49058-00

$6.29

16

JOINT, AIR CLNR 1

314-14453-00-00

Unavailable

17

SPRING TENSION 220144550000

90506-06106-00

Unavailable

18

CASE, AIR CLEANER 1

(392-14411-00-00)

Unavailable

19

ELEMENT, AIR CLEANER

560-14451-08-00

Unavailable

20

CAP, CLEANER CASE 1

392-14412-00-00

Unavailable

21

SCREW PAN HEAD

98580-06010-00

Unavailable

22

WASHER, SPRING

92995-06100-00

$2.95

23

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

24

BOLT(62J)

97013-06070-00

Unavailable

25

COLLAR 437216330000

90387-07391-00

Unavailable

26

GROMMET 839774310000

90480-14023-00

Unavailable

27

WASHER, SPRING

92995-06100-00

$2.95

28

NUT, HEXAGON

95380-06600-00

$4.11

29

BOLT(3GG)

97017-06090-00

Unavailable
