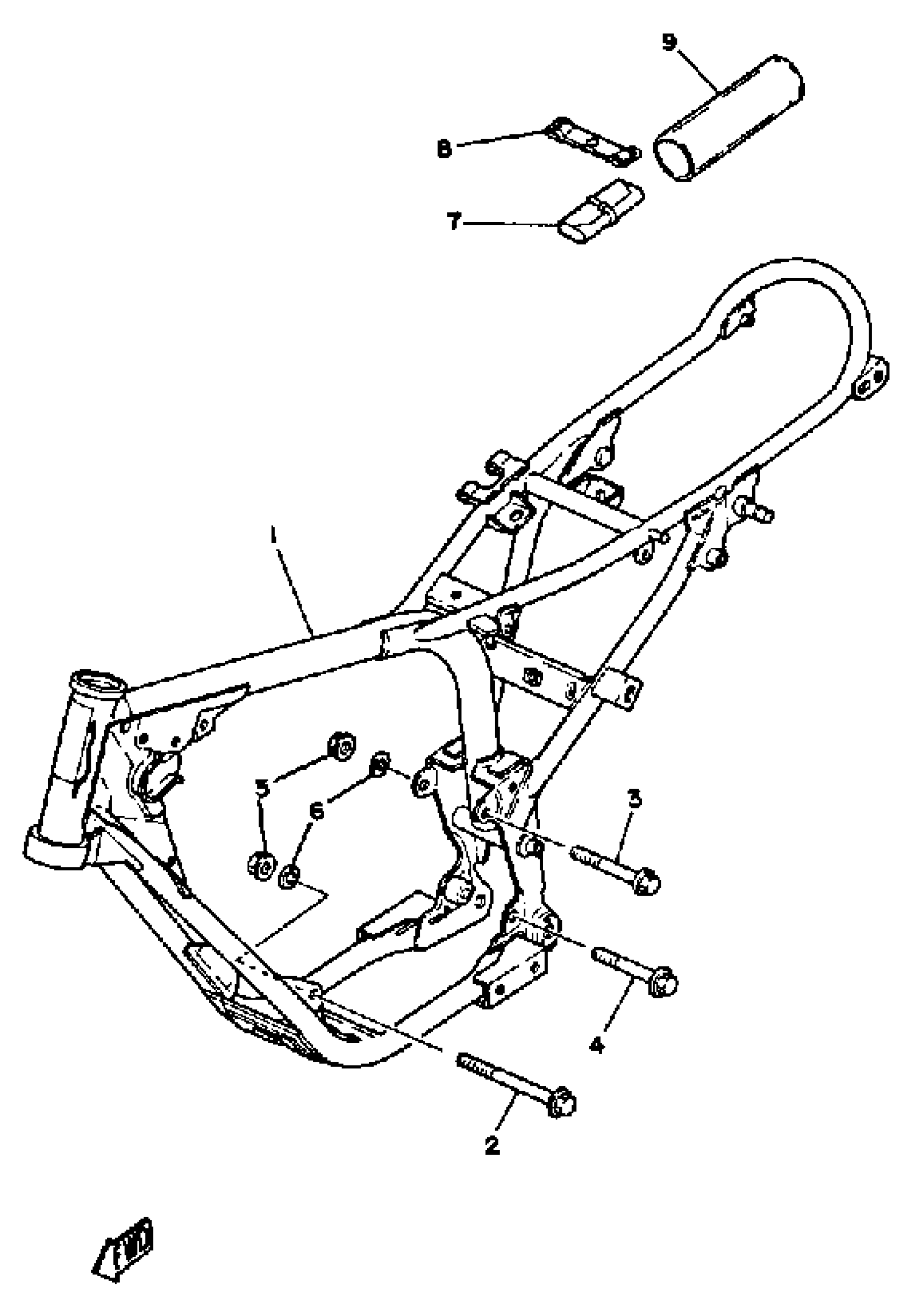

Yamaha DT100H (DT100H) 1981 FRAME-TOOL Diagram

#

Description
Price

1

FRAME

(3A3-21110-01-33)

Unavailable

2

BOLT, FLANGE

90105-08094-00

Unavailable

3

BOLT (1T9)

90105-08095-00

$3.76

4

BOLT, FLANGE

95817-10075-00

$4.82

5

NUT, FLANGE

95704-08500-00

$5.76

6

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

7

TOOL KIT

1E7-W2810-00-00

Unavailable

8

BAND, TOOL

21V-21376-00-00

$5.96

9

COVER, TOOL BOX

(1T9-28171-00-00)

Unavailable
