1978 Yamaha DT100E (DT100E) Crankshaft Piston Diagram

← All diagrams

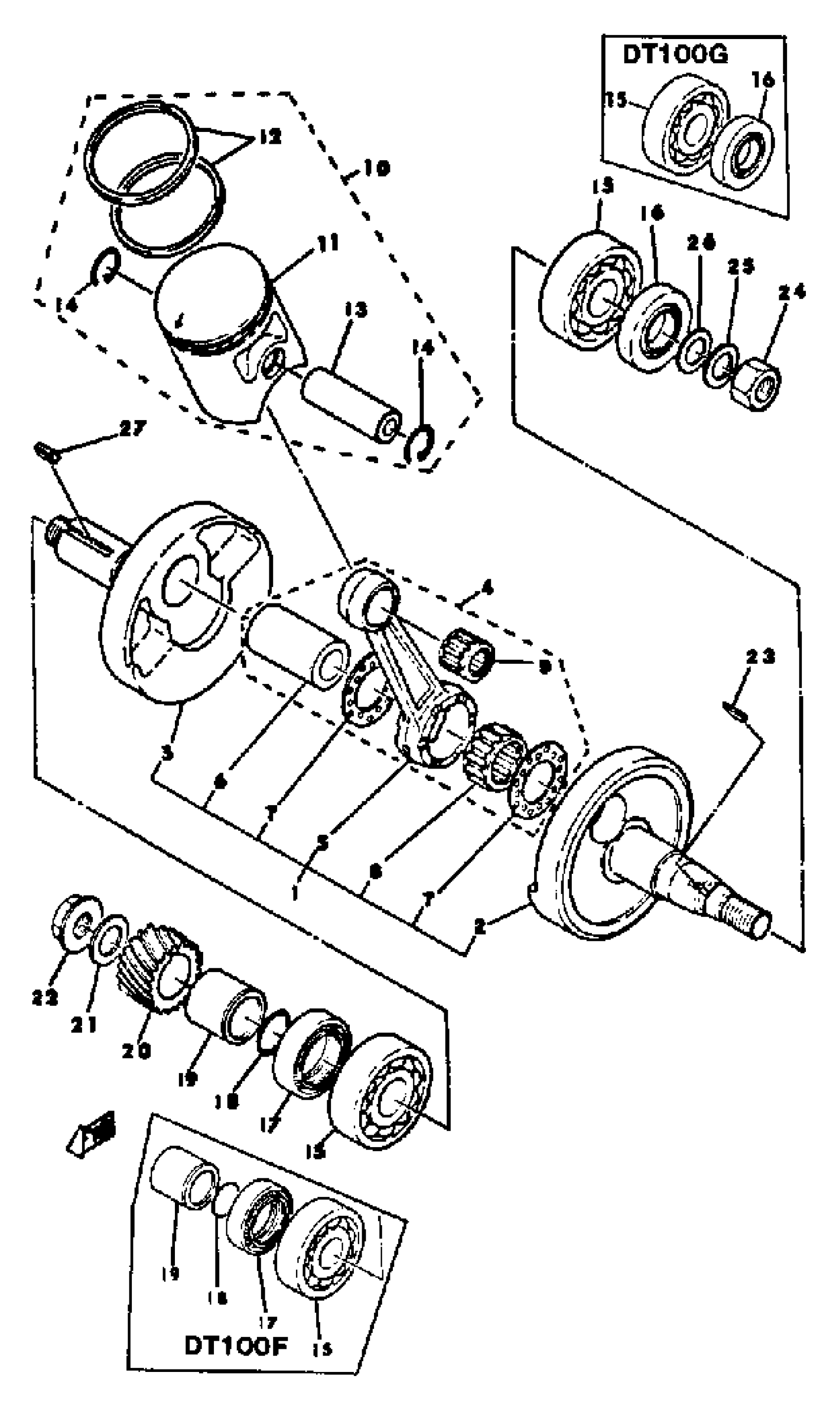

Find the part on the Crankshaft Piston diagram for your 1978 Yamaha DT100E (DT100E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha DT100E (DT100E) Crankshaft Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

558-11400-00-00

1
Out of stock

2

CRANK (L.H)

558-11412-00-00

—
Out of stock

3

CRANK 2

(558-11422-00-00)

1
Out of stock

4

CONNECTING ROD KIT

1M7-11650-00-00

—
Out of stock

5

ROD, CONNECTING

1M7-11651-00-00

1
Out of stock

6

PIN, CRANK

5E2-11681-00-00

1
Out of stock

7

WASHER (29L)

90209-22248-00

—
Out of stock

8

BRG,CYL-CAL ROLLER 16G TM

93310-422E7-00

—
Out of stock

9

BRG,CYL-CAL ROLLER 7G TM

93310-21403-00

1
Out of stock

10

PISTON KIT STD

558-11630-00-00

1
Out of stock

10

PISTON KIT STD

558-11630-00-00

1
Out of stock

11

. PISTON STD

3A3-11631-00-96

1
Out of stock

11

. PISTON STD

558-11631-01-96

1
Out of stock

12

PISTON RING SET (STD)

3A3-11610-00-00

—
Out of stock

12

. PISTON RINGSET STD

558-11610-00-00

1
Out of stock

13

PIN, PISTON

131-11633-00-00

—
Out of stock

14

CIRCLIP 131116340000

93450-15023-00

—
Out of stock

15

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

—
Out of stock

16

OIL SEAL(4BA)

93102-20447-00

—
Out of stock

17

OIL SEAL (28X40X8-132)

93103-28011-00

—
Out of stock

18

O-RING(3KX)

93210-180A6-00

—
Out of stock

19

COLLAR, DISTANCE 2761613600

90387-20175-00

—
Out of stock

20

GEAR, PRIMARY DRIVE (19T)

336-16111-00-00

1
Out of stock

21

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

22

NUT(1EE)

90179-12659-00

—
Out of stock

23

KEY WOODRUFF 146115450000

90280-03017-00

—
Out of stock

24

NUT, HEXAGON 98801-12200

90170-12175-00

—
Out of stock

25

YBS67-12 WASHER,SPRING

92990-12100-00

—
Out of stock

26

WASHER (492)

90201-12535-00

—
Out of stock

27

PISTON RINGSET 1ST (1ST O.S.)

558-11610-10-00

1
Out of stock

27

PISTON RINGSET 2ND (2ND O.S.)

558-11610-20-00

1
Out of stock

27

PISTON RINGSET 3RD (3RD O.S.)

558-11610-30-00

1
Out of stock

27

PISTON RINGSET 4TH (4TH O.S.)

558-11610-40-00

1
Out of stock

27

PISTON KIT 1ST

558-11630-10-00

1
Out of stock

27

PISTON KIT 2ND

558-11630-20-00

1
Out of stock

27

PISTON KIT 3RD

558-11630-30-00

1
Out of stock

27

PISTON KIT 4TH

558-11630-40-00

1
Out of stock

27

PISTON 1 O/S 0.25 (52.25MM 1ST O.S.)

558-11635-01-00

1
Out of stock

27

PISTON 2 O/S 0.50 (52.50MM 2ND O.S.)

558-11636-01-00

1
Out of stock

27

PISTON 3 O/S 0.75 (52.75MM 3RD O.S.)

558-11637-01-00

1
Out of stock

27

PISTON 4 O/S 1.00 (53.00MM 4TH O.S.)

558-11638-01-00

1
Out of stock

27

KEY, STRAIGHT 3531154600

90282-05005-00

—
Out of stock
