CARBURETOR

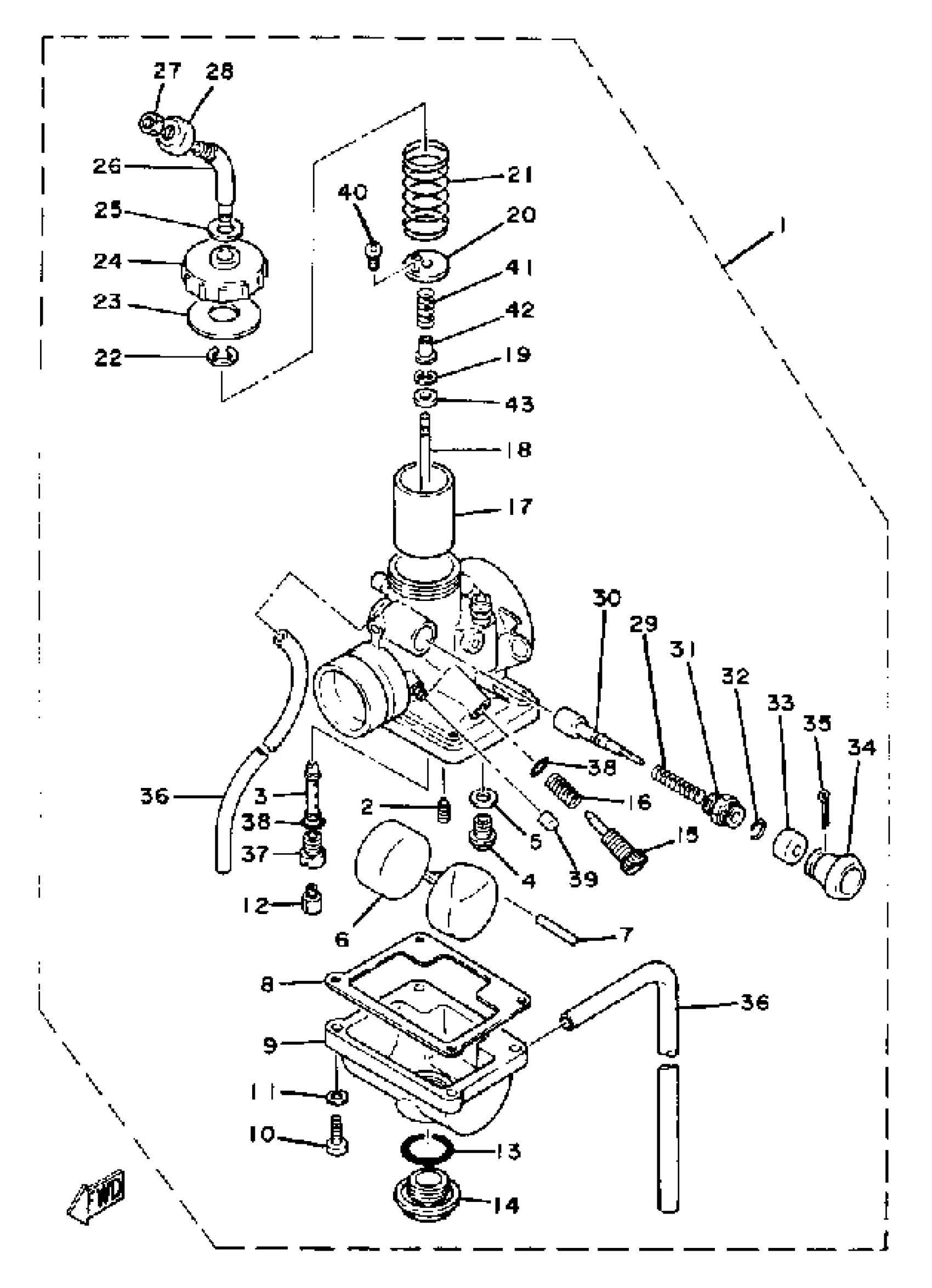

1978 Yamaha DT100E (DT100E) Carburetor Diagram
Find the part on the Carburetor diagram for your 1978 Yamaha DT100E (DT100E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
CARBURETOR ASSEMBLY 1
3A3-14101-60-00
2
. JET, PILOT #15
260-14142-15-A0
8
GASKET,FLOAT CHAMBER
304-14184-00-00
9
. BODY, FLOAT CHMBR 1
539-14181-04-00
12
JET, MAIN #130
137-14143-26-A0
13
O-RING (541)
558-14147-00-00
15
. SCREW, THROTTLE
493-14122-00-00
16
. SPRING, THROTTLE STOP
493-14133-00-00
17
VALVE, THROTTLE 1
(3A3-14112-20-00)
18
NEEDLE
(164-14116-17-00)
20
SEAT, SPRING
(3A3-14136-00-00)
23
. GASKET
3A3-14126-00-00
24
. TOP, MIXING CHAMBER
1T9-14158-00-00
26
GUIDE, CABLE
(3A3-14155-00-00)
30
. PLUNGER, STARTER
304-14171-00-00
32
. CLIP, PLUNGER
152-14138-00-00
38
O-RING
214-14147-00-00
41
. SPRING
2N6-14589-01-00
42
. WASHER
2N6-14227-01-00
43
. RING
2N6-14918-01-00
