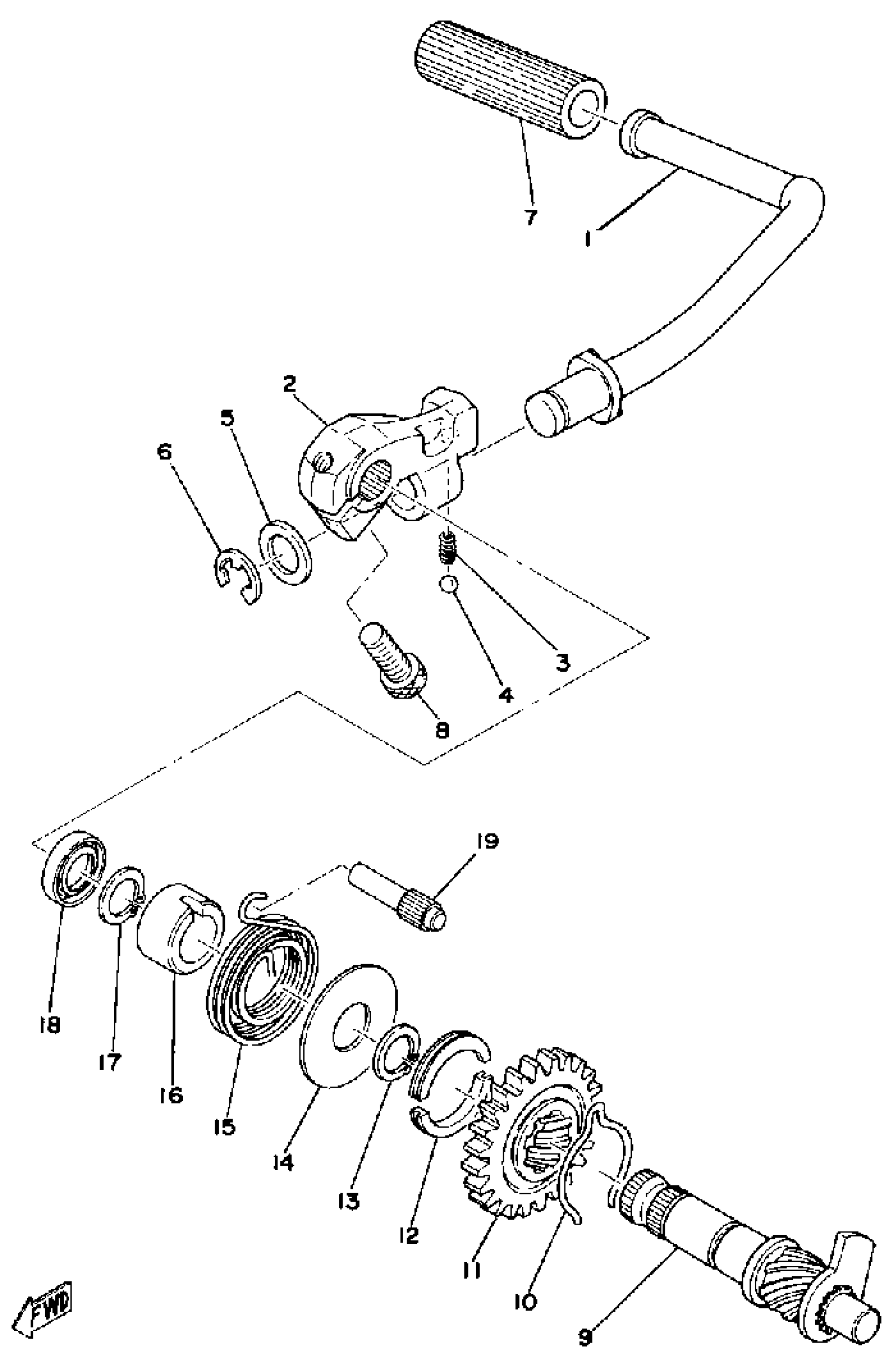

Find the part on the Kick Starter diagram for your 1977 Yamaha DT100D (DT100D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha DT100D (DT100D) Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK CRANK ASSEMBLY

3UL-15620-00-00

1
Out of stock

2

BOSS, KICK CRANK

1T9-15621-00-00

1
Out of stock

3

SPRING COMPRESSION278156220000

90501-12081-00

1
Out of stock

4

BALL (12R)

93507-32031-00

1
Out of stock

5

WASHER PLATE 278156130000

90201-15234-00

1
Out of stock

6

CIRCLIP

99006-10600-00

1
Out of stock

7

COVER, KICK LEVER

156-15618-01-00

1
Out of stock

8

BOLT, SOCKET

91317-08025-00

1
Out of stock

9

KICK AXLE ASY

403-15660-02-00

1
Out of stock

10

CLIP 315156870000

90468-26048-00

1
Out of stock

11

GEAR, KICK

315-15641-00-00

—
Out of stock

12

HOLDER, KICK GEAR

248-15654-00-00

1
Out of stock

13

CIRCLIP(4A6)

99009-30400-00

1
Out of stock

14

COVER, SPRING

401-15676-00-00

1
Out of stock

15

SPRING TORSION 401156650000

90508-26041-00

1
Out of stock

16

SPACER

401-15666-00-00

1
Out of stock

17

CIRCLIP(1EY)

99009-17400-00

—
Out of stock

18

OIL SEAL (17X25X4-401)

93101-17062-00

—
Out of stock

19

STOPPER, KICK SPRING

257-15668-00-00

1
Out of stock
