1977 Yamaha DT100D (DT100D) Front Wheel Diagram

← All diagrams

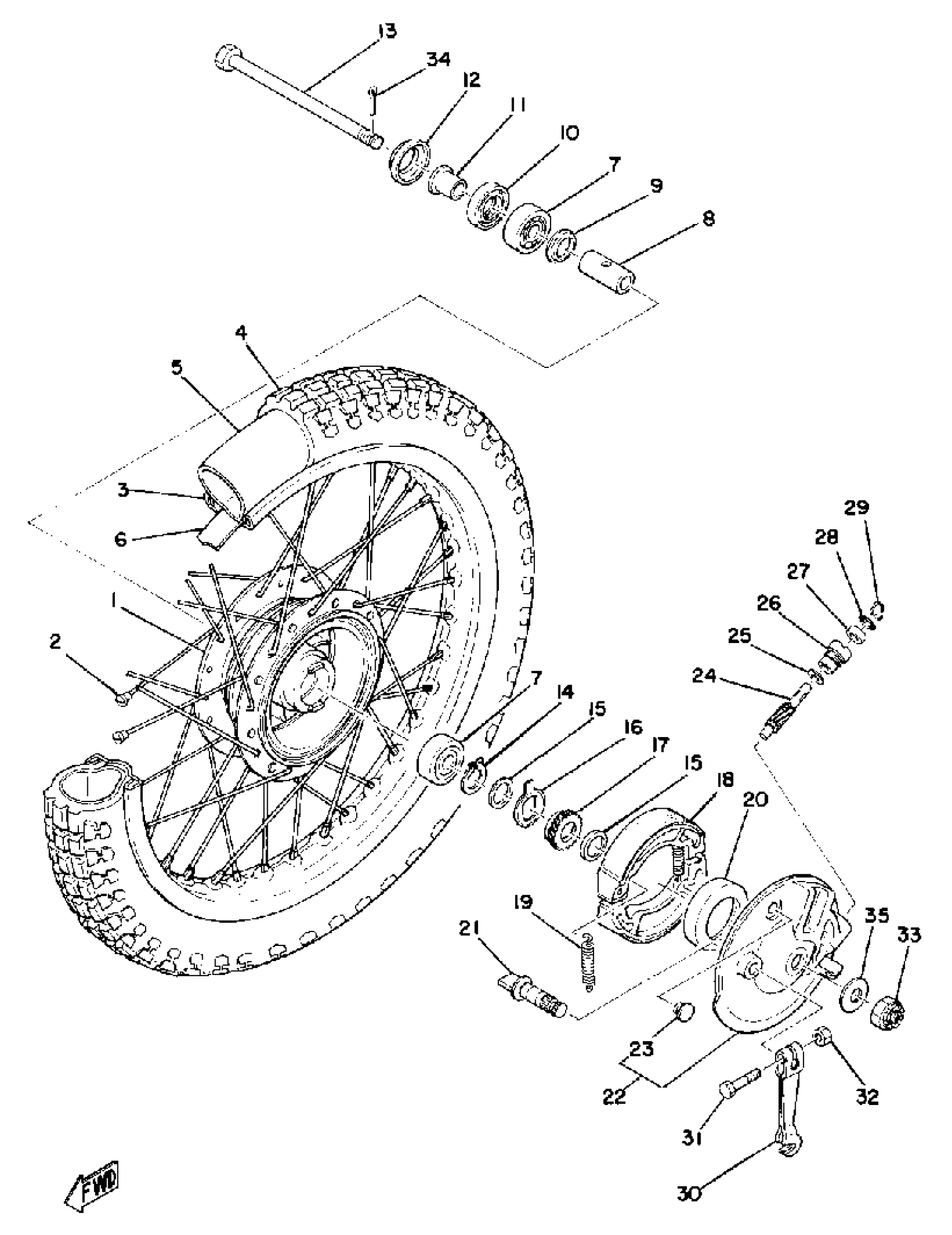

Find the part on the Front Wheel diagram for your 1977 Yamaha DT100D (DT100D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha DT100D (DT100D) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

248-25111-00-98

—
Out of stock

2

SPOKE SET, FRONT

276-25104-40-00

1
Out of stock

3

RIM (1.40-18)

94414-18545-00

1

$107.12

In stock

4

TIRE (2.50-18)

94125-18369-00

1

$83.94

In stock

5

TUBE (5H5)

94225-18194-00

1

$31.80

In stock

6

BAND, RIM

94325-18059-00

1
Out of stock

7

BEARING

93306-30102-00

1
Out of stock

8

SPACER

90560-12138-00

—

$12.83

In stock

9

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

10

OIL SEAL (18X37X8-109)

93102-18008-00

1

$22.31

In stock

11

COLLAR

90387-12616-00

1
Out of stock

12

COVER HUB DUST

481-25118-01-00

1

$6.31

In stock

13

SHAFT, WHEEL (462)

90102-12015-00

1

$14.29

In stock

14

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

15

WASHER, PLATE 1832514700

90201-20269-00

1
Out of stock

16

CLUTCH, METER

183-25149-00-00

—
Out of stock

17

GEAR, DRIVE

1T9-25135-00-00

1
Out of stock

18

BRAKE SHOE KIT

2JL-W253E-20-00

—

$25.53

In stock

19

SPRING, TENSION (566).

90506-16150-00

—

$6.98

In stock

20

SEAL,OIL

93105-47007-00

—
Out of stock

21

CAMSHAFT

4GL-25351-00-00

—

$62.50

In stock

22

BRAKE SHOE PLT ASSEMBLY

1T9-25016-01-98

1
Out of stock

23

GROMMET (397)

90480-10068-00

—

$6.77

In stock

24

GEAR, METER

1T9-25138-00-00

1
Out of stock

25

WASHER, PLATE 1832514600

90201-07076-00

—

$5.75

In stock

26

BUSHING

109-25136-00-00

—

$8.78

In stock

27

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

28

O-RING (26H)

93210-14579-00

—

$5.69

In stock

29

RING, STOP

102-25137-00-00

—
Out of stock

30

LEVER, CAMSHAFT 1

5H0-25155-00-00

1
Out of stock

31

BOLT, HEXAGON (538)

90101-06278-00

—

$1.82

In stock

32

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

33

NUT,CASTLE

90171-12058-00

1
Out of stock

34

PIN, COTTER

91490-30030-00

—

$7.15

In stock

35

WASHER, PLATE

90201-12047-00

—

$7.54

In stock
