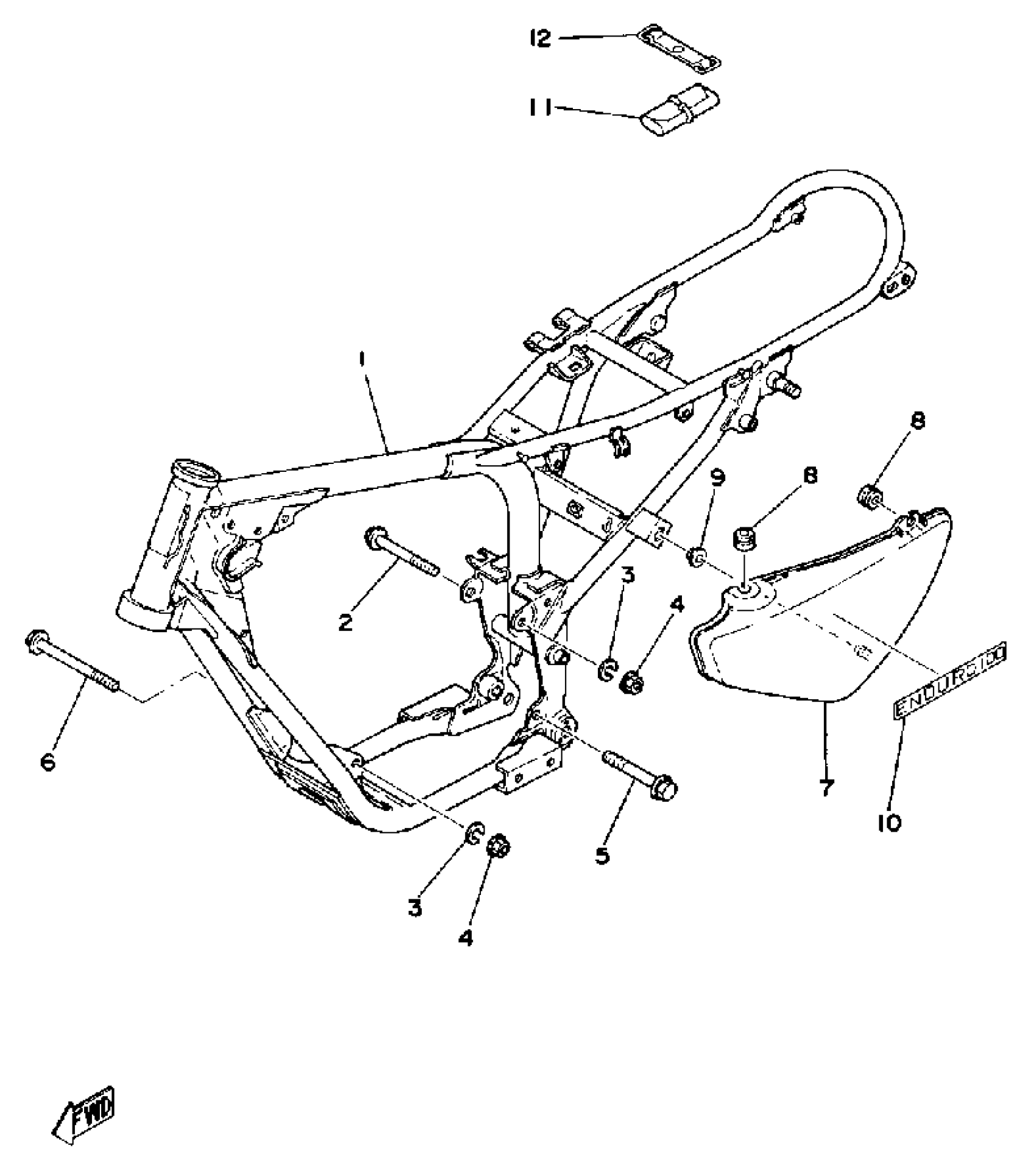

Yamaha DT100D (DT100D) 1977 FRAME SIDE COVER Diagram

#

Description
Price

1

FRAME

(3A3-21110-01-33)

Unavailable

2

BOLT (1T9)

90105-08095-00

$3.76

3

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

4

NUT, FLANGE

95704-08500-00

$5.76

5

BOLT, FLANGE

95817-10075-00

$4.82

6

BOLT, FLANGE

90105-08094-00

Unavailable

7

COVER, SIDE 1

1T9-21711-00-00

Unavailable

8

DAMPER, SIDE COVER (437)

90480-12053-00

$5.39

9

GROMMET(41Y)

90480-01401-00

$5.29

10

EMBLEM

(1T9-21737-00-00)

Unavailable

11

TOOL KIT

1E7-W2810-00-00

Unavailable

12

BAND, TOOL

21V-21376-00-00

$5.96
