1976 Yamaha DT100C (DT100C) Shift Shaft Diagram

← All diagrams

Find the part on the Shift Shaft diagram for your 1976 Yamaha DT100C (DT100C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

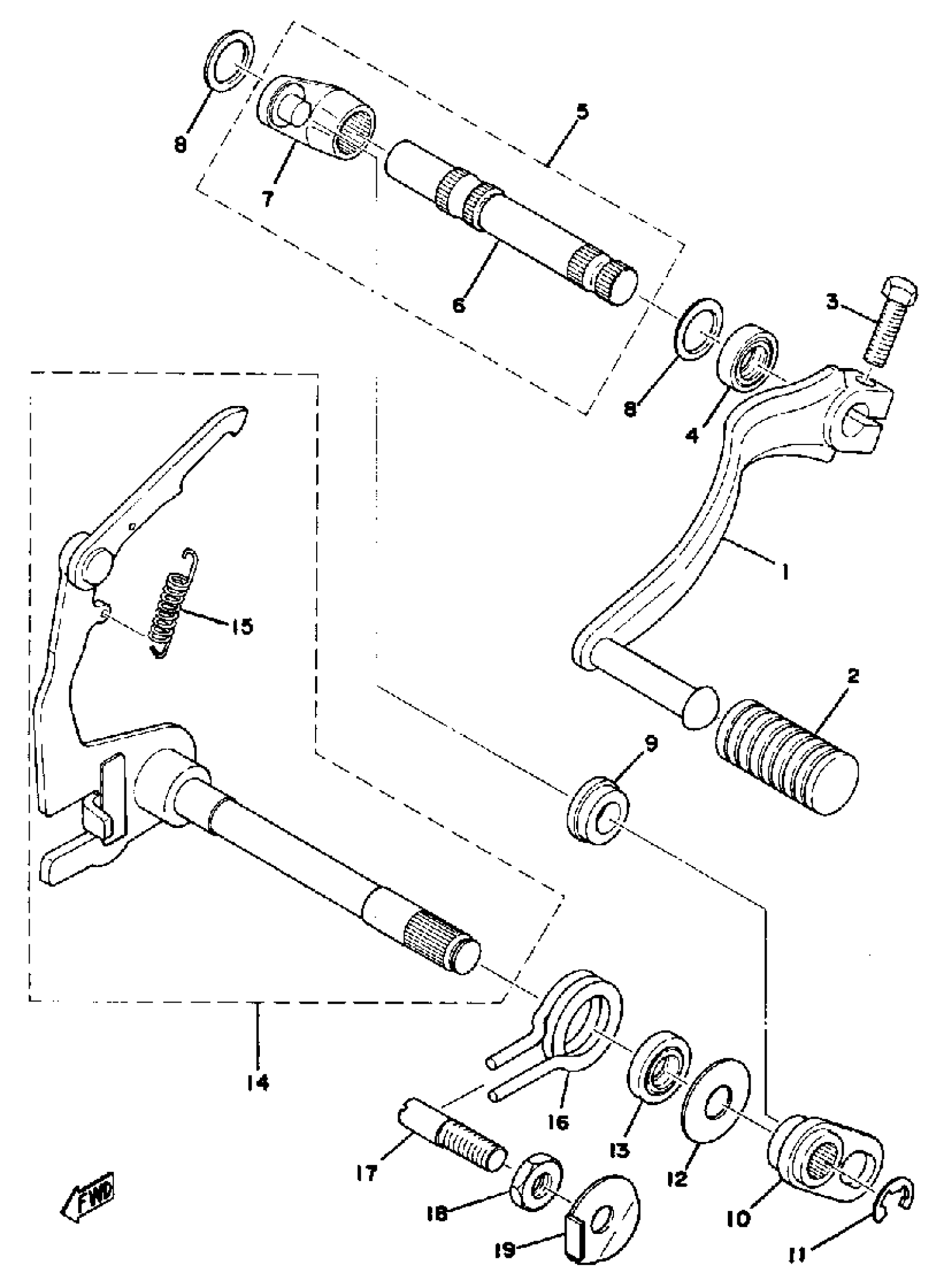

1976 Yamaha DT100C (DT100C) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, SHIFT

1X0-18111-00-00

1
Out of stock

2

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

3

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

4

OIL SEAL (12X19X5-401)

93109-12012-00

1

$8.92

In stock

5

SHIFT SHAFT ASY 2

401-18102-02-00

1
Out of stock

6

SHAFT,SHIFT 2

401-18155-02-00

1
Out of stock

7

LEVER, SHIFT 3

401-18151-00-00

1
Out of stock

8

SHIM

401-18334-00-00

1

$4.92

In stock

9

ROLLER, CHANGE LEVER

401-18178-00-00

1

$17.98

In stock

10

LEVER, CHANGE 4

401-18152-01-00

—

$23.78

In stock

11

CIRCLIP(2R6)

99001-08600-00

1
Out of stock

12

WASHER, PLATE (353)

90201-12575-00

1
Out of stock

13

OIL SEAL

93101-12173-00

1
Out of stock

14

SHIFT SHAFT ASSEMBLY

558-18101-00-00

1
Out of stock

15

—

$6.68

In stock

16

SPRING TORSION 132181240000

90508-32207-00

—
Out of stock

17

SCREW, ADJUSTING (367)

90149-08094-00

—

$4.91

In stock

18

NUT (583)

90170-08193-00

—
Out of stock

19

WASHER LOCK 248181390000

90215-08014-00

—

$5.38

In stock
