1974 Yamaha DT100A (DT100A) Intake Diagram

← All diagrams

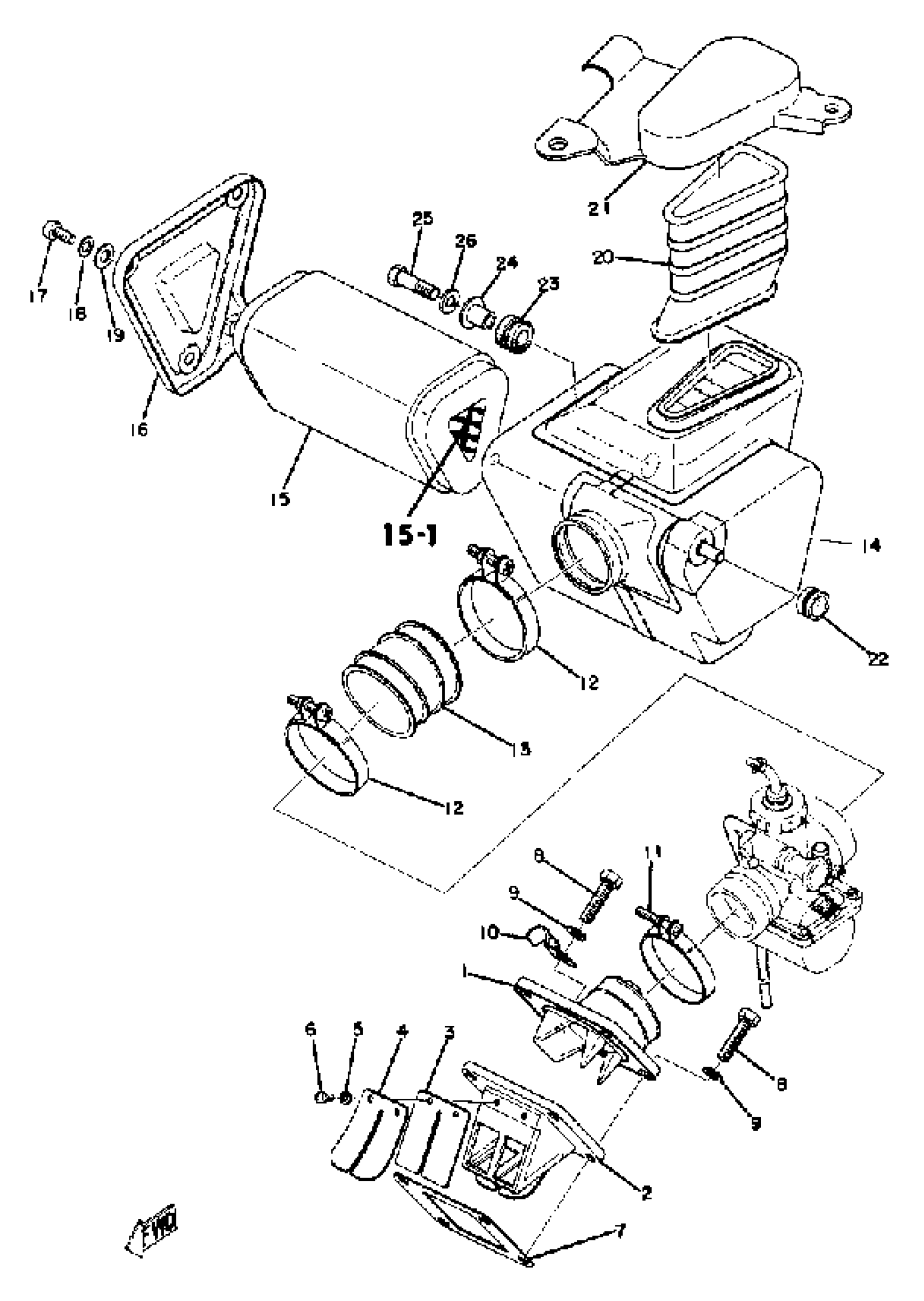

Find the part on the Intake diagram for your 1974 Yamaha DT100A (DT100A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha DT100A (DT100A) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR

401-13565-01-00

1
Out of stock

2

REED VALVE ASSY

345-13610-20-00

1

$218.63

In stock

3

REED, VALVE

345-13613-70-00

1

$62.56

In stock

4

. STOPPER, REED VALVE

345-13616-70-00

1
Out of stock

5

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

6

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

7

GASKET, VALVE SEAT

87A-13621-00-00

1

$7.97

In stock

8

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

CLAMP 363154850100

90462-05005-00

—

$6.92

In stock

11

CLAMP, HOSE (5H0)

90460-43179-00

1

$16.69

In stock

12

CLAMP HOSE 304144550000

90460-51059-00

1

$14.64

In stock

13

JOINT, AIR CLEANER

437-14453-00-00

1

$29.13

In stock

14

CASE, AIR CLEANER 1

(437-14411-01-00)

1
Out of stock

15

ELEMENT, AIR CLEANER

437-14451-08-00

—
Out of stock

16

CAP, CLEANER CASE 1

437-14412-00-00

1
Out of stock

17

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

20

DUCT

(437-14437-01-00)

1
Out of stock

21

COVER 2

(437-14418-00-00)

1
Out of stock

22

GROMMET 214217460000

90480-10091-00

—

$6.45

In stock

23

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

24

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

25

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

26

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
