FRONT WHEEL

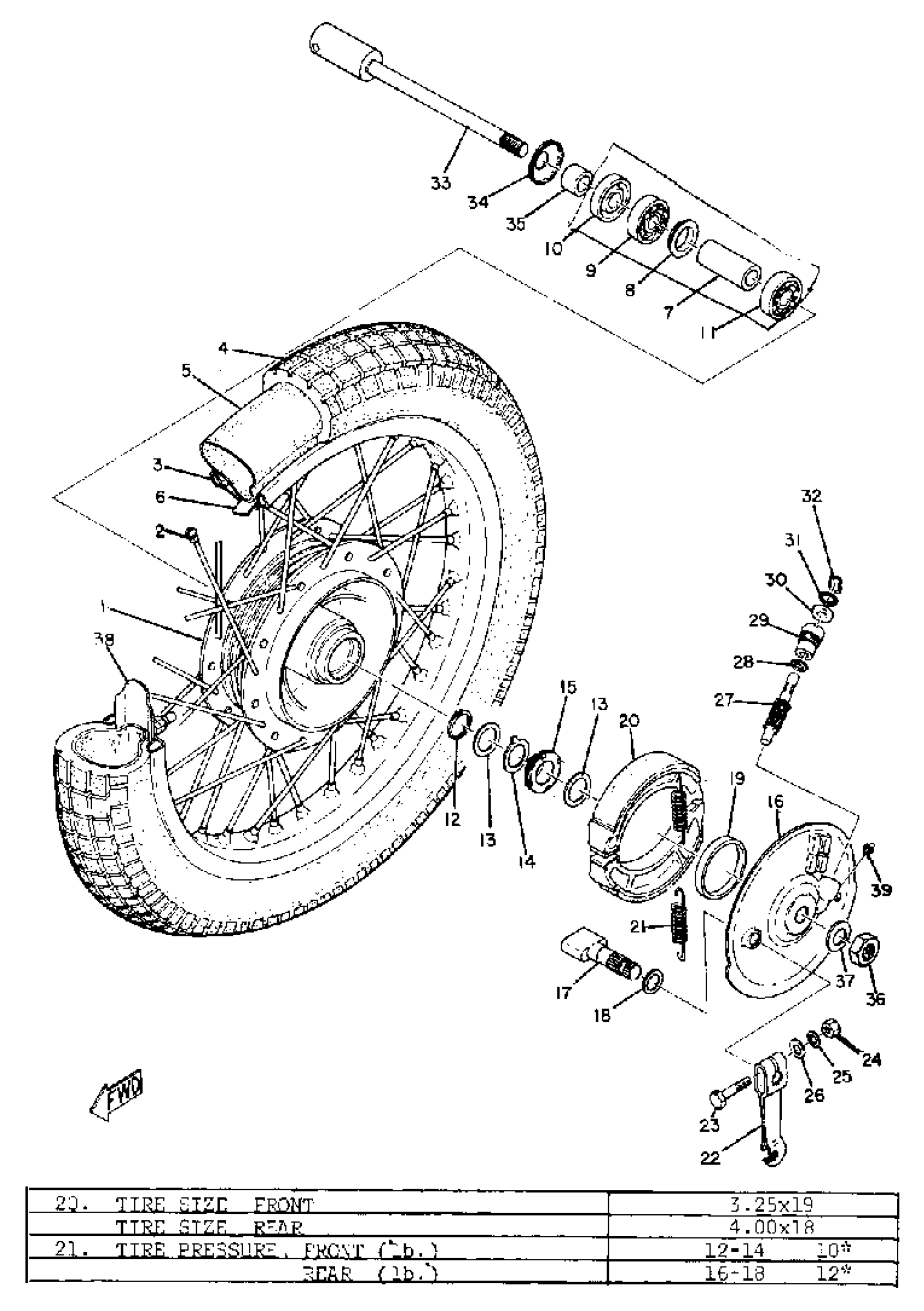

1968 Yamaha DT1 (DT1) Front Wheel Diagram
Find the part on the Front Wheel diagram for your 1968 Yamaha DT1 (DT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT WHL ASSEMBLY 21
(214-25001-10-00)
1
FRONT WHL ASSEMBLY 19
(214-25101-00-00)
1
HUB, FRONT
(227-25111-00-00)
2
SPOKE SET, FRONT
(214-25104-00-00)
2
SPOKE SET, FRONT
(214-25104-10-00)
2
SPOKE SET, INNER 1
(214-25196-80-00)
2
SPOKE SET, INNER 1
(214-25196-90-00)
2
SPOKE SET, OUTER 1
(214-25197-80-00)
2
SPOKE SET, OUTER 1
(214-25197-90-00)
3
RIM 1.60X19
(94416-19035-00)
3
RIM 1.60X21
(94416-21038-00)
4
275X21 BS M7
(94127-21216-00)
4
325X19 DUNLP TRIAL
(94132-19063-00)
5
TUBE (2.75-21)(2YY)
94227-21293-00
5
TUBE
(94232-19064-00)
6
BAND, RIM
(94327-21024-00)
7
SPACER(1EE)
90560-15293-00
8
FLANGE, SPACER
146-25116-00-00
15
GEAR, DRIVE
214-25135-00-00
16
PLATE, BRAKE SHOE
(214-25121-01-00)
17
CAMSHAFT
(214-25151-00-00)
18
WASHER PLATE 341251470000
90201-25286-00
20
BRAKE SHOE KIT
3GW-W253A-00-00
22
LEVER, CAMSHAFT 1
214-25155-01-00
32
RING, STOP
102-25137-00-00
33
AXLE, WHEEL
275-25181-00-00
35
COLLAR
90387-157G5-00
