1968 Yamaha DT1 (DT1) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1968 Yamaha DT1 (DT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

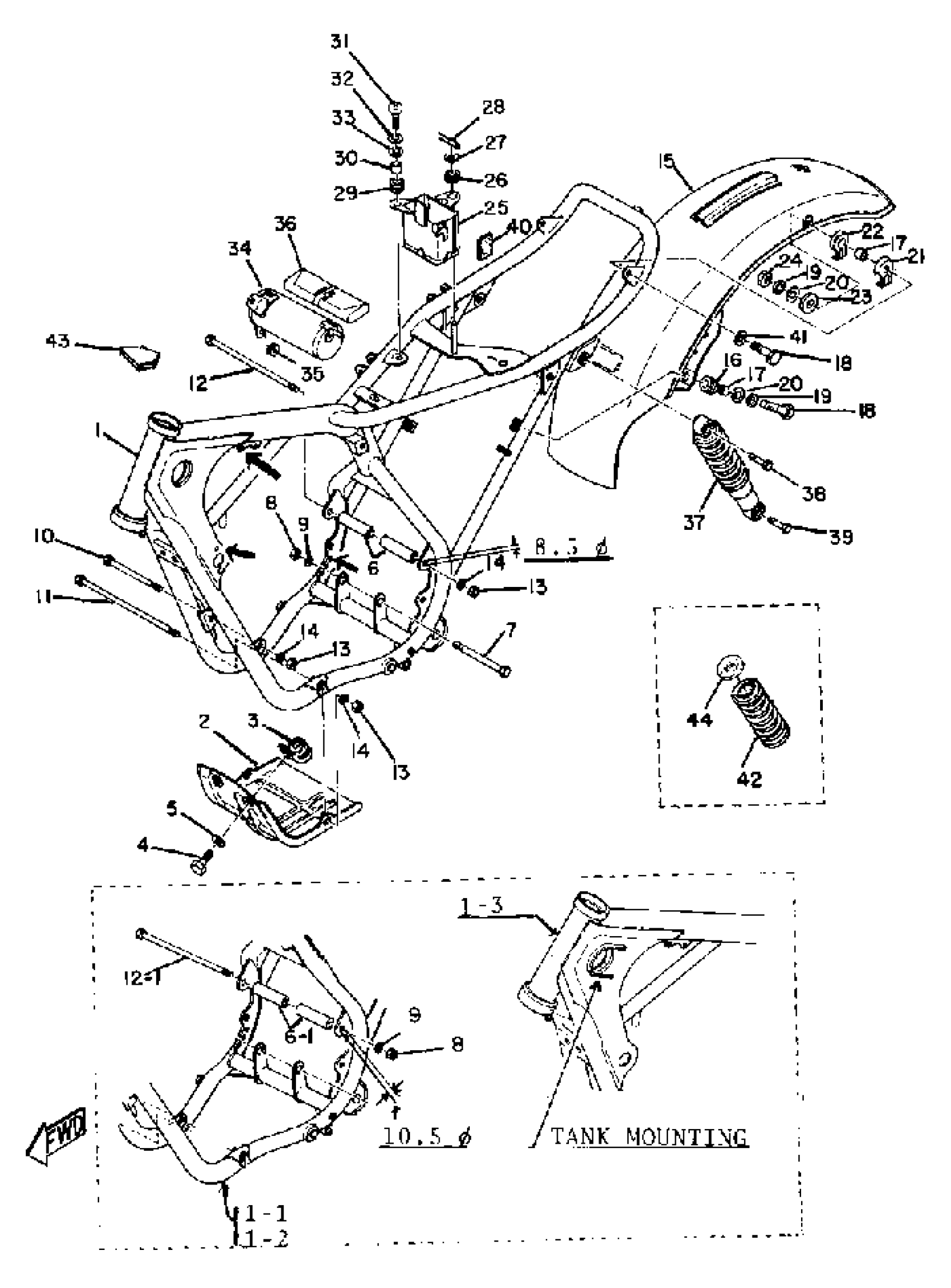

1968 Yamaha DT1 (DT1) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

214-21110-00-00

1
Out of stock

1

SPACER

(214-21459-01-00)

1
Out of stock

1

BOLT, WASHER BASED (3Y1)

90105-10139-00

1
Out of stock

2

FRAME

(214-21110-02-33)

1
Out of stock

2

PROTECTOR, ENGINE

(214-21471-01-00)

1
Out of stock

3

FRAME

(214-21110-03-33)

1
Out of stock

3

BRACKET, PROTC FRT

(214-21433-00-33)

1
Out of stock

4

BOLT (661)

97013-06012-00

1

$4.71

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

SPACER

(214-21459-00-00)

1
Out of stock

7

UNAVAILABLE IN PRICE BOOK (10V-109)

90109-10051-00

1
Out of stock

8

NUT, SELF LOCKING

90185-10031-00

1
Out of stock

9

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

10

BOLT, FLANGE

95817-08115-00

1

$6.57

In stock

11

BOLT (214-21842-00)

90109-08040-00

1
Out of stock

12

BOLT, ENG MNTNG 4

(214-21484-00-00)

1
Out of stock

13

NUT(3BM)

95314-10600-00

—

$1.74

In stock

13

NUT, U

95617-08100-00

—

$6.78

In stock

14

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

15

FENDER, REAR

(214-21610-01-35)

1
Out of stock

16

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

17

COLLAR (J10)

90387-06026-00

—

$6.91

In stock

18

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

21

WASHER, SPECIAL 1

(214-21615-00-00)

1
Out of stock

22

DAMPER 2

(214-21639-00-00)

1
Out of stock

23

DAMPER

(214-21649-00-00)

1
Out of stock

24

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

25

BOX, BATT.

(214-21240-10-33)

1
Out of stock

26

GROMMET 214217470000

90480-14103-00

—

$3.74

In stock

27

WASHER, SPEC''L SHAP

(90209-05025-00)

1
Out of stock

28

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

29

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

30

COLLAR (J10)

90387-06026-00

—

$6.91

In stock

31

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

32

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

34

BOX

(214-21170-00-33)

1
Out of stock

35

GROMMET 214217460000

90480-10091-00

—

$6.45

In stock

36

TOOL KIT

(214-W2810-10-00)

1
Out of stock

37

SHOCK ABS ASSY, REAR

291-22210-71-00

1
Out of stock

38

BOLT ROUND 214222410000

90106-10025-00

—

$4.58

In stock

39

BOLT, DOME HEAD

(90106-10026-00)

1
Out of stock

40

SEAL

(214-21268-00-00)

1
Out of stock

41

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

42

SPRING

(214-22212-10-00)

1
Out of stock

43

SEAL

(214-21269-00-00)

1
Out of stock

44

SEAT, SPRING UPPER

(291-22213-71-00)

1
Out of stock
