1968 Yamaha DT1 (DT1) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1968 Yamaha DT1 (DT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

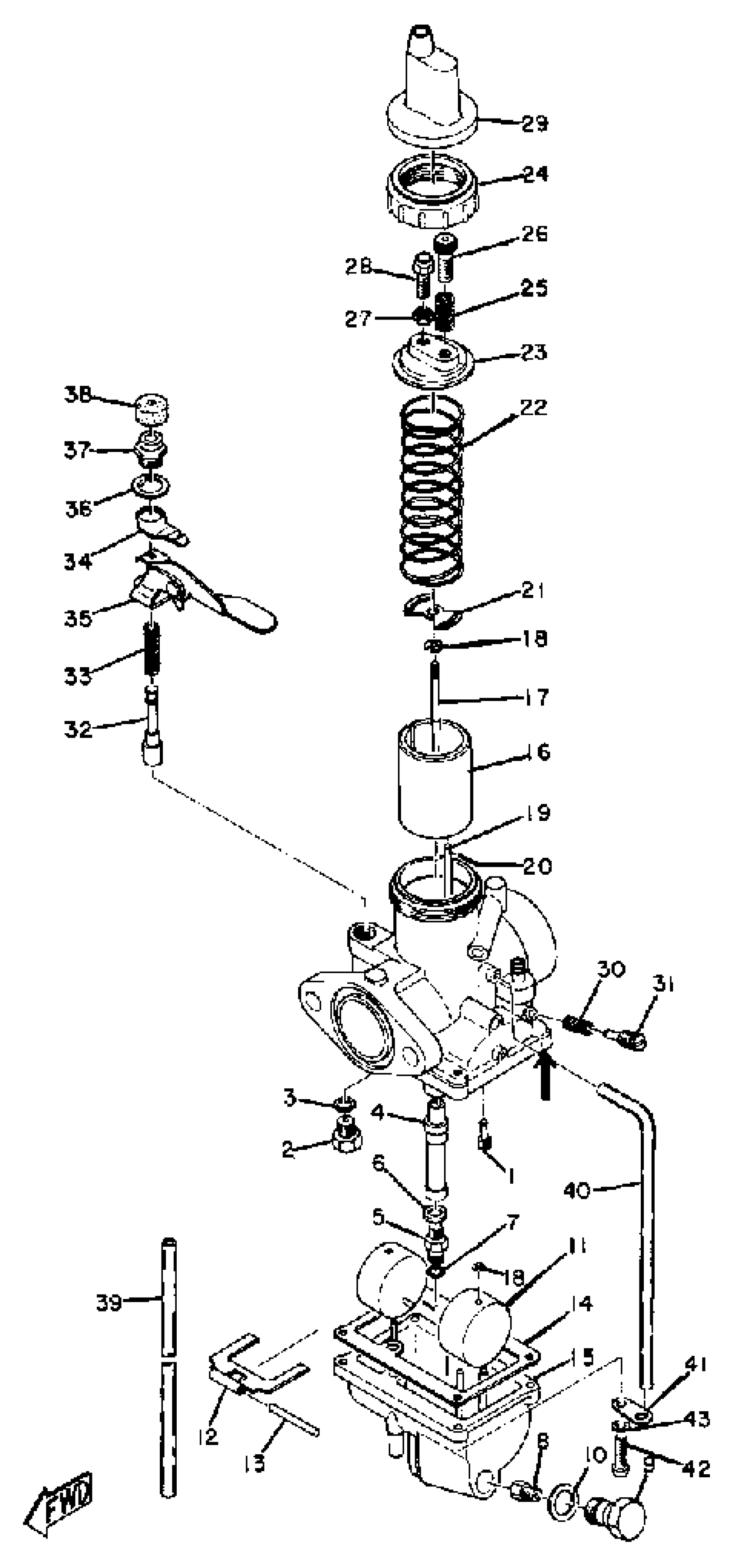

1968 Yamaha DT1 (DT1) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JET, MAIN #140

137-14143-28-A0

—

$8.78

In stock

1

VALVE SEAT ASSY

168-14190-20-00

1

$31.82

In stock

1

JET, PIL0T(# 35)

193-14142-35-00

1

$9.42

In stock

1

CARBURETOR ASSEMBLY 1

(214-14101-61-00)

1
Out of stock

1

WASHER, VALVE SEAT

214-14195-00-00

1

$6.11

In stock

2

JET, MAIN #150

137-14143-30-00

1

$6.32

In stock

2

VALVE SEAT ASSY

620-14190-20-00

—

$36.89

In stock

3

WASHER, VALVE SEAT

127-14195-00-00

1

$6.40

In stock

3

JET, MAIN #160

137-14143-32-00

1

$8.02

In stock

4

JET, MAIN #170

137-14143-34-00

1

$6.51

In stock

4

. NOZZLE, MAIN

(214-14141-32-00)

1
Out of stock

5

. SETTER, NEEDLE JET

214-14145-00-00

1
Out of stock

6

WASHER,MAIN JET

137-14153-00-00

1
Out of stock

7

O-RING

214-14147-00-00

1
Out of stock

8

JET, MAIN #130

137-14143-26-A0

1
Out of stock

9

. BOLT, BANJO

(214-14166-00-00)

1
Out of stock

10

GASKET

286-14198-00-00

—

$7.45

In stock

11

. FLOAT

214-14185-00-00

1
Out of stock

12

. ARM, FLOAT

214-14187-00-00

1
Out of stock

13

PIN, FLOAT

127-14186-00-00

—

$6.23

In stock

14

GASKET, FLOAT CHAMBER

500-14184-00-00

—

$41.80

In stock

15

. BODY, FLOAT CHMBR 1

214-14181-12-00

1
Out of stock

16

. VALVE, THROTTLE 1

(168-14112-25-00)

1
Out of stock

17

. NEEDLE

168-14116-01-00

1
Out of stock

18

CLIP

3FA-14137-00-00

—

$6.80

In stock

19

. BAR, THROTTLE

(214-14114-00-00)

1
Out of stock

20

. PIN, COTTER

91490-12012-00

1

$2.77

In stock

21

SEAT, SPRING

(168-14136-00-00)

1
Out of stock

22

SPRING, THRTL VALVE

(168-14131-00-00)

1
Out of stock

23

. TOP, MIXING CHAMBER

(214-14158-00-00)

1
Out of stock

24

CAP, MIXING CHAMBER

(168-14168-01-00)

1
Out of stock

25

SPRING, THROTTLE STOP

137-14133-00-00

—

$6.15

In stock

26

SCREW, THRTL STOP

(127-14121-00-00)

1
Out of stock

27

NUT, WIRE ADJUSTING

127-14161-00-00

—

$7.20

In stock

28

CABLE ADJUST SCREW SET

12G-14106-00-00

—

$17.66

In stock

29

CAP

(156-14169-00-00)

1
Out of stock

30

SPRING, AIR ADJUSTING

127-14134-00-00

—

$6.37

In stock

31

AIR SCREW SET

23X-14104-00-00

—

$8.52

In stock

32

PLUNGER, STARTER

132-14171-00-00

—

$31.29

In stock

33

SPRING, PLUNGER

156-14135-00-00

—

$7.72

In stock

34

. PLATE, STARTER LEVER

(170-14178-00-00)

1
Out of stock

35

. LEVER, STARTER 1

(248-14175-00-00)

1
Out of stock

36

WASHER, STARTER LVR

(132-14179-00-00)

1
Out of stock

37

CAP, PLUNGER

(132-14174-00-00)

1
Out of stock

38

COVER, PLUNGER CAP

132-14173-00-00

—

$8.70

In stock

39

PIPE, AIR VENT

183-14197-01-00

—
Out of stock

40

HOSE (L200)

90445-05N13-00

—

$6.17

In stock

41

PLATE

132-14146-00-00

—

$6.65

In stock

42

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

43

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock
