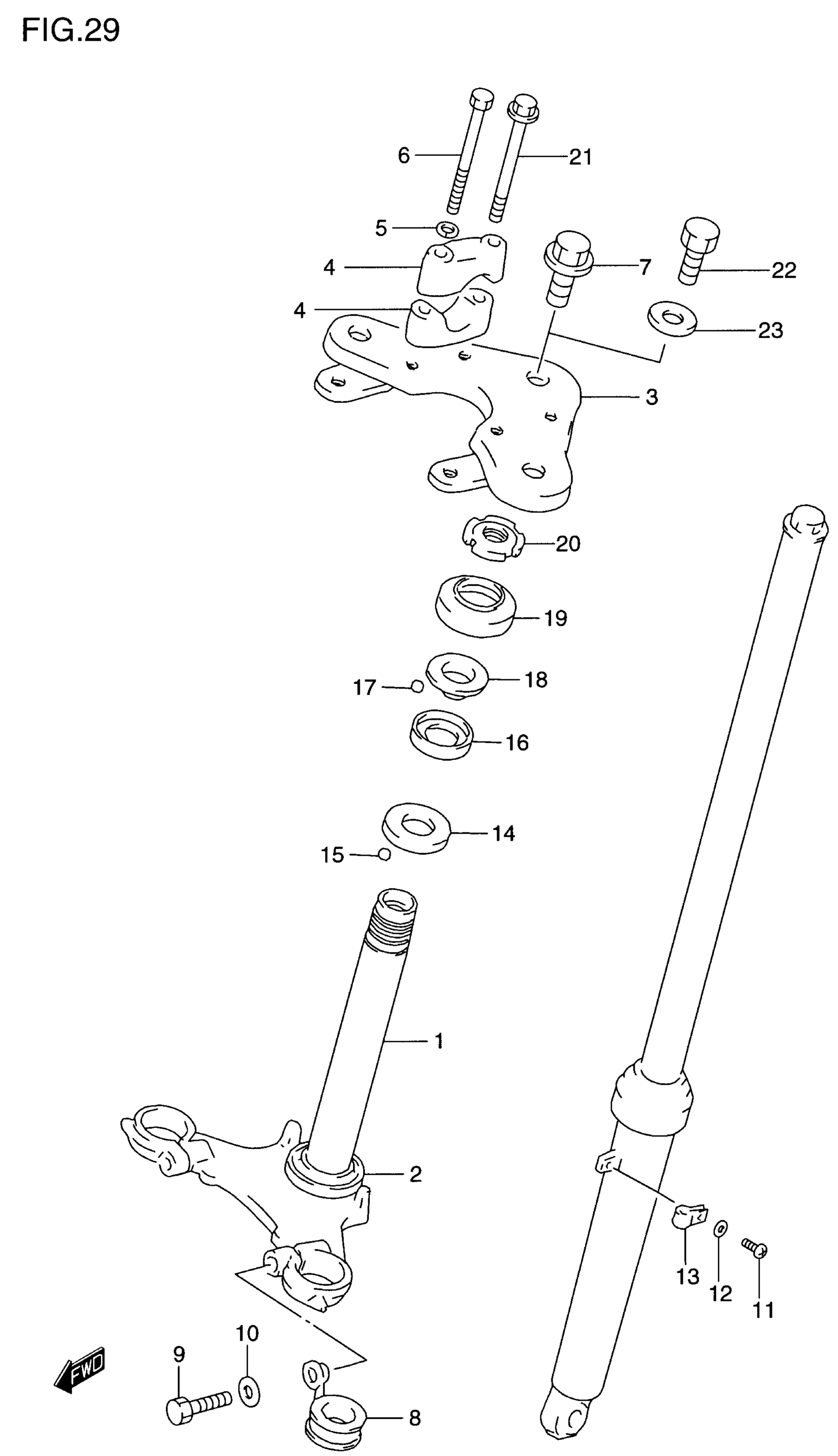

Suzuki DS80 (2000) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2

51410-03440

Unavailable

2

RACE, OUTER LOWER

51621-33001

$18.33

3

HEAD, STEERING STEM

51310-03440

Unavailable

4

HOLDER, HANDLE (BLACK)

56211-27200-291

$20.22

5

LOCK WASHER | MODEL T

08322-01087

$1.86

6

BOLT | MODEL T

01204-08557

$2.80

7

BOLT | MODEL T

51352-46101

$13.35

8

CLIP

51455-03401

Unavailable

9

BOLT This part replaces 01500-10303.

01500-1030A

$2.90

10

LOCK WASHER

08321-01107

$1.83

11

SCREW

02112-04127

$1.46

12

LOCK WASHER This part replaces 08321-01043.

08321-0104A

$1.86

13

CLIP

51452-46040

$7.43

14

RACE, INNER LOWER

51611-33002

$13.02

15

BALL, LOWER

06111-08003

$1.30

16

RACE,STEERING INNER UPPER

51611-20002

$13.50

17

BALL, UPPER

06111-06003

$1.24

18

RACE,STEERING OUTER UPPER

51621-28000

$13.50

19

DUST SEAL,STEERING UPPER

51643-25001

$4.17

20

NUT, STEERING STEM

51631-28000

$19.60

21

.BOLT | MODEL V/W/X/Y This part replaces 01550-08553.

01550-0855A

$2.80

22

BOLT | MODEL V/W/X/Y

51352-46030

$10.35

23

WASHER | MODEL V/W/X/Y

51356-46030

Unavailable
