2000 Suzuki DS80 Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 2000 Suzuki DS80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

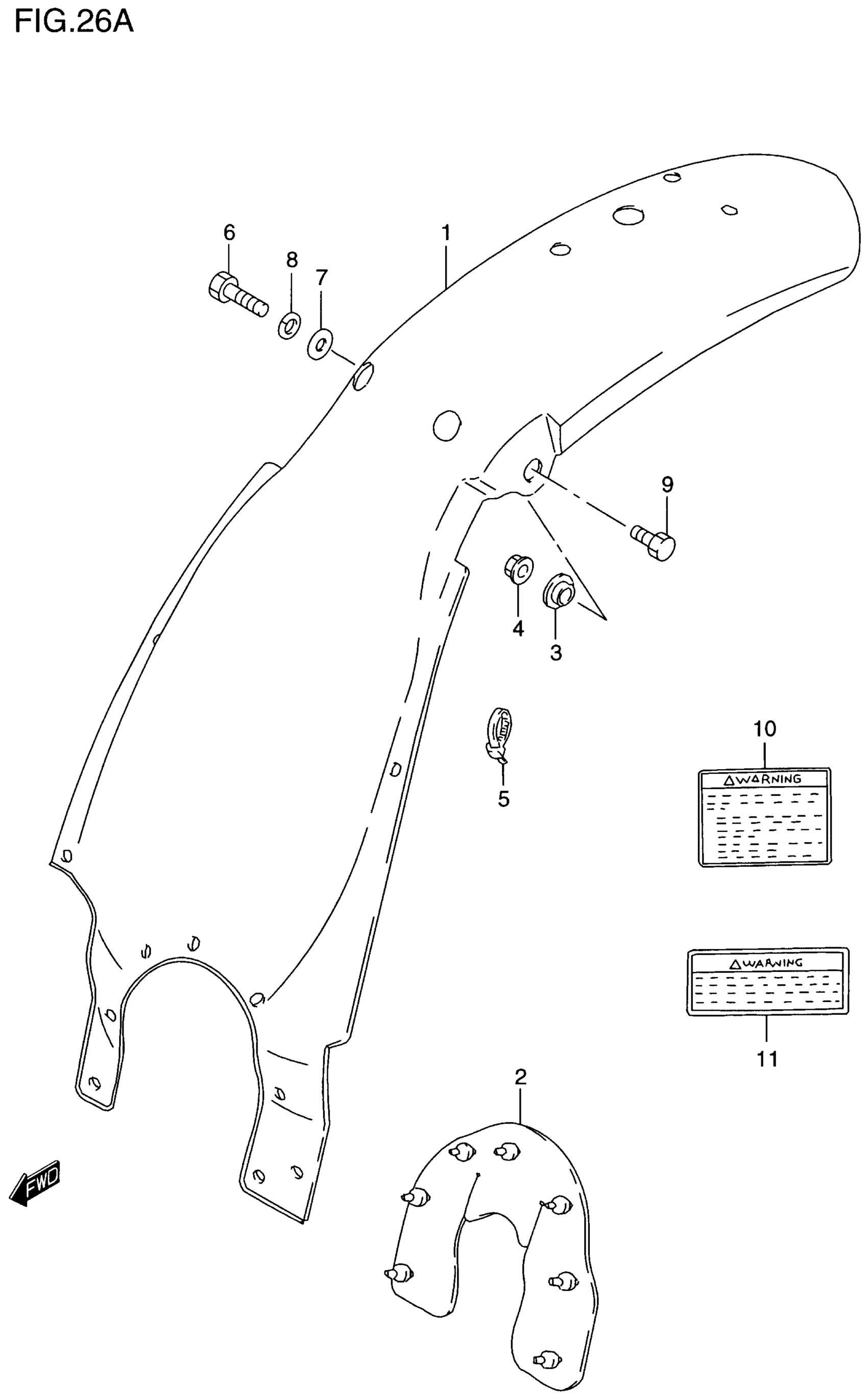

2000 Suzuki DS80 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, REAR (YELLOW)

63111-03400-25Y

1
Out of stock

1

FENDER, REAR (YELLOW) | E28

63111-03410-25Y

1
Out of stock

2

MUD GUARD, REAR FENDER

63411-03400

1
Out of stock

3

NO DESCRIPTION AVAILABLE This part replaces 09169-08026.

09169-08026-XC0

2
Out of stock

4

NUT

08319-31087

2
Out of stock

5

CLAMP

09407-25402

4
Out of stock

6

BOLT This part replaces 01500-08353.

01500-0835B

1
Out of stock

7

WASHER

09160-08135

1
Out of stock

8

1

$1.99

In stock

9

BOLT This part replaces 01580-08253.

01580-0825A

1
Out of stock

10

LABEL, GENERAL WARNING

68921-03400

1
Out of stock

10

LABEL, GENERAL WARNING | E28

68921-03410

—
Out of stock

11

LABEL,MANUAL NOTICE This part replaces 68353-26E01.

68353-26E03

1
Out of stock

12

MANUAL, OWNER'S

99011-03458-03A

1
Out of stock

12

MANUAL, OWNER'S | E28 DRAWING NOT SHOWN

99011-03458-01B

—
Out of stock
