2000 Suzuki DS80 Prop Stand - Brake Pedal Diagram

← All diagrams

Find the part on the Prop Stand - Brake Pedal diagram for your 2000 Suzuki DS80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

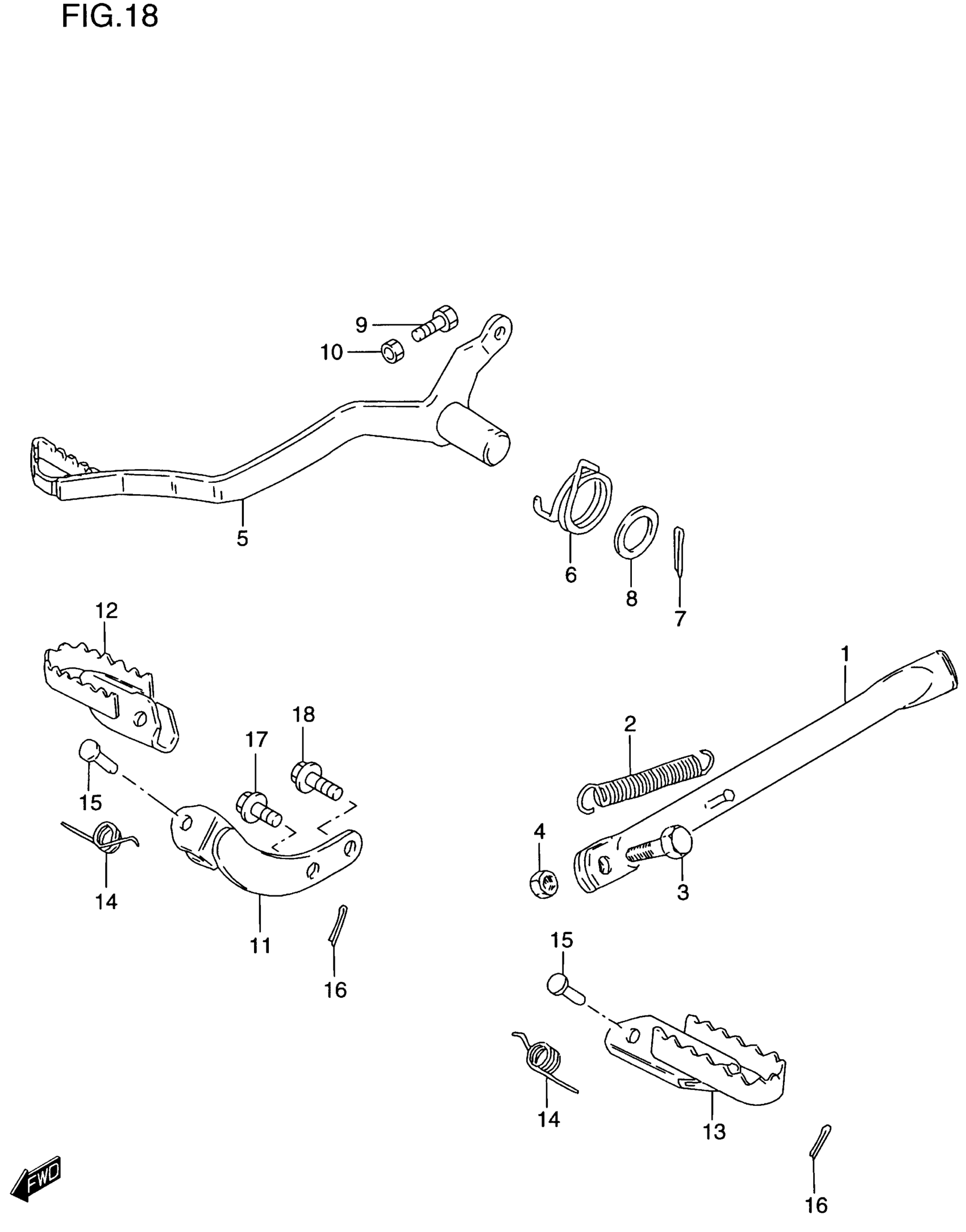

2000 Suzuki DS80 Prop Stand - Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP (BLACK)

42310-03400-019

1
Out of stock

2

SPRING

09443-14017

1
Out of stock

3

BOLT

09100-10287

1
Out of stock

4

NUT

09140-10043

1
Out of stock

5

PEDAL, BRAKE

43110-03401

1
Out of stock

6

SPRING This part replaces 09448-25007.

09448-25007-XC0

1
Out of stock

7

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

8

WASHER

09160-15002

1
Out of stock

9

BOLT

09100-06009

1
Out of stock

10

NUT This part replaces 08310-00063.

08310-0006A

1
Out of stock

11

HOLDER, FRONT FOOTREST (BLACK)

43510-03401-019

1
Out of stock

12

FOOTREST, FRONT RH (BLACK)

43550-46000-019

1
Out of stock

13

FOOTREST, FRONT LH (BLACK)

43560-46000-019

1
Out of stock

14

SPRING

09448-14012

2
Out of stock

15

PIN

09200-08002

2
Out of stock

16

.COTTER PIN This part replaces 04111-20158.

04111-2015A

2
Out of stock

17

BOLT (10X20) This part replaces 01550-10253.

01550-1025A

1
Out of stock

18

BOLT, NO.2

09103-08505

1
Out of stock
