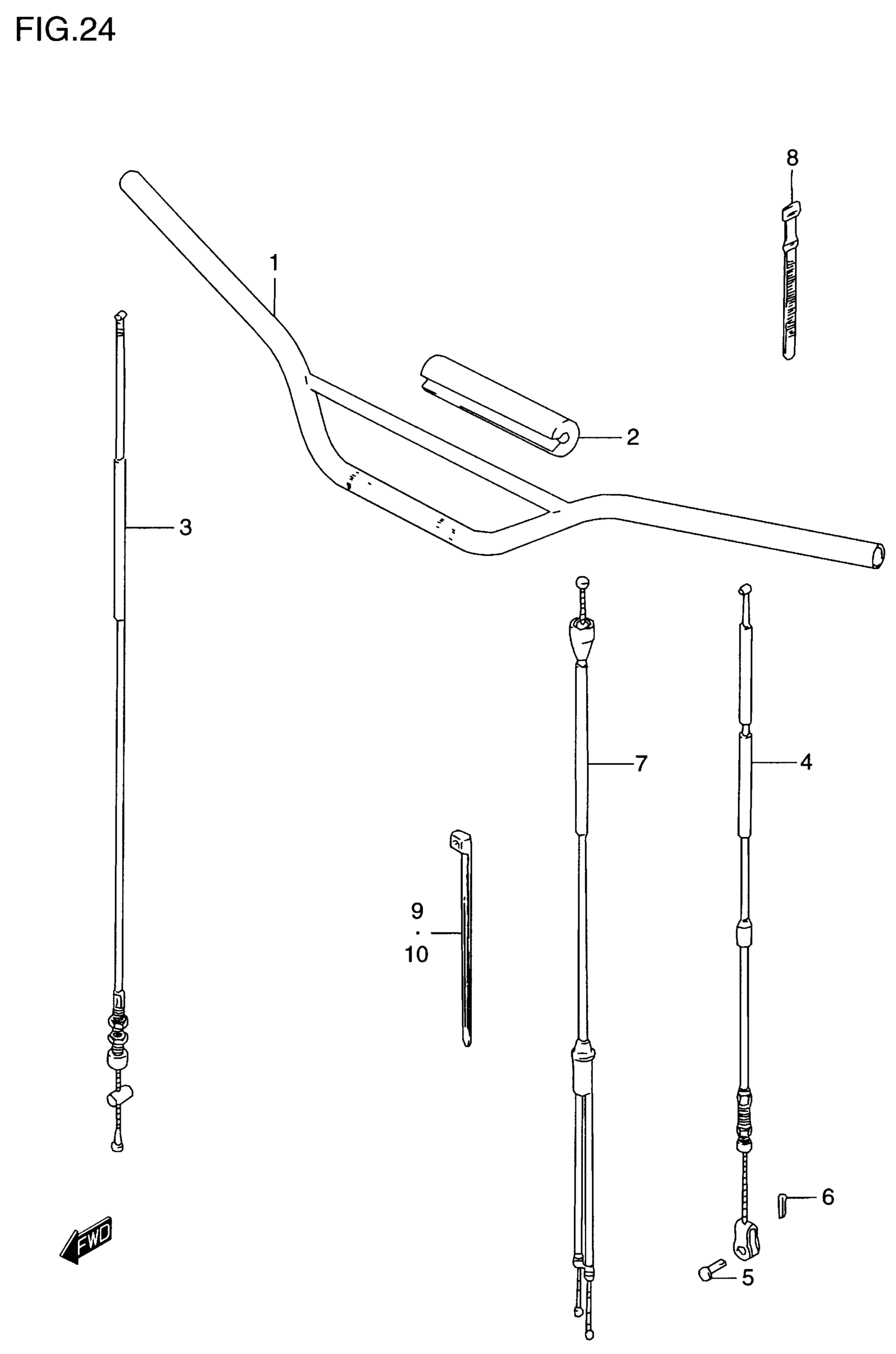

Suzuki DS80 (2000) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR (BLACK)

56110-46402-291

Unavailable

2

PAD, CROSS This part replaces 56172-03401.

56172-24500

$14.97

3

CABLE ASSY, BRAKE

58110-03400

Unavailable

4

CABLE ASSY, CLUTCH

58200-03400

$19.12

5

PIN

09200-06004

$1.68

6

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

7

CABLE ASSY, THROTTLE | MODEL T This part replaces 58300-03402.

58300-03404

Unavailable

7

CABLE ASSY, THROTTLE | MODEL V/W/X This part replaces 58300-03403.

58300-03404

Unavailable

7

CABLE ASSY, THROTTLE | MODEL Y

58300-03404

Unavailable

8

BAND, BAR PAD (L:145)

09407-14407

$2.80

9

CLAMP, CABLE (L:125)

09407-14403

$2.24

10

CLAMP, CABLE (L:165)

09407-18402

$2.21
