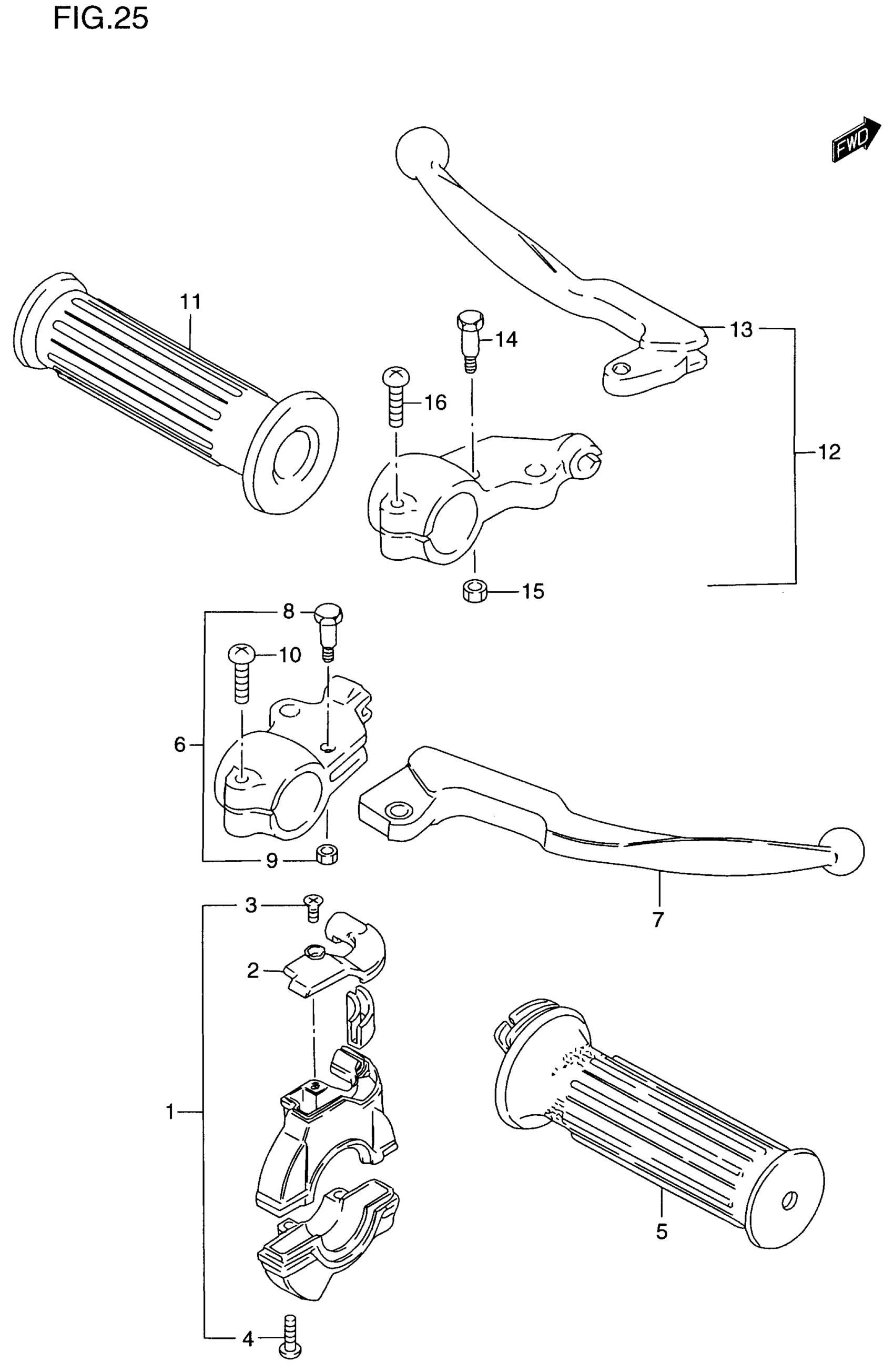

Suzuki DS80 (2000) HANDLE LEVER Diagram

#

Description
Price

1

CASE ASSY, THROTTLE | Includes Item(s) 2 - 4 This part replaces 57100-13601.

57100-13610

$53.61

2

COVER

57129-13601

$13.50

3

SCREW This part replaces 02122-04103.

02122-0410A

$1.25

4

SCREW

02112-05167

$2.01

5

GRIP, THROTTLE

57110-13600

$21.32

6

BRAKE LEVER ASSY | Includes Item(s) 7 - 10

57300-46440

$55.84

7

LEVER, BRAKE (BLACK)

57420-46440

$64.80

8

SCREW

57431-13001

$8.65

9

.NUT This part replaces 08319-21053.

08319-2105A

$2.29

10

SCREW This part replaces 02112-06203.

02112-0620A

$1.49

11

GRIP, LH

57211-46111

$11.96

12

CLUTCH LEVER ASSY | Includes Item(s) 13 - 15

57500-46440

$40.33

13

LEVER, CLUTCH (BLACK)

57620-46440

$24.09

14

SCREW

57431-13001

$8.65

15

.NUT This part replaces 08319-21053.

08319-2105A

$2.29

16

SCREW This part replaces 02112-06203.

02112-0620A

$1.49
