Description

Price

1

CRANK CASE SET | Includes Item(s) 2 - 5 This part replaces 11301-46821.

11301-46822

$598.77

2

PIN

04211-11189

$1.80

3

SCREW This part replaces 02112-06453.

02112-0645B

$2.21

4

SCREW This part replaces 02112-06353.

02112-0635B

$2.21

5

SCREW This part replaces 02112-06253.

02112-0625A

$1.79

6

CAP

11451-46000

$3.80

7

O RING (D:2.4,ID:26.2) This part replaces 09280-26003.

09280-26005

$2.31

8

SCREW This part replaces 02112-05083.

02112-0508A

$1.43

9

BOLT (8X230)

09103-08101

$12.35

10

BOLT (8X100)

09103-08070

$5.09

11

BOLT (8X70)

09103-08099

$5.09

12

NUT

08319-31087

$2.31

13

SPACER (L:46)

11610-03400

$14.73

14

BOLT This part replaces 01500-10203.

01500-1020B

$2.90

15

GASKET

09168-10002

$1.96

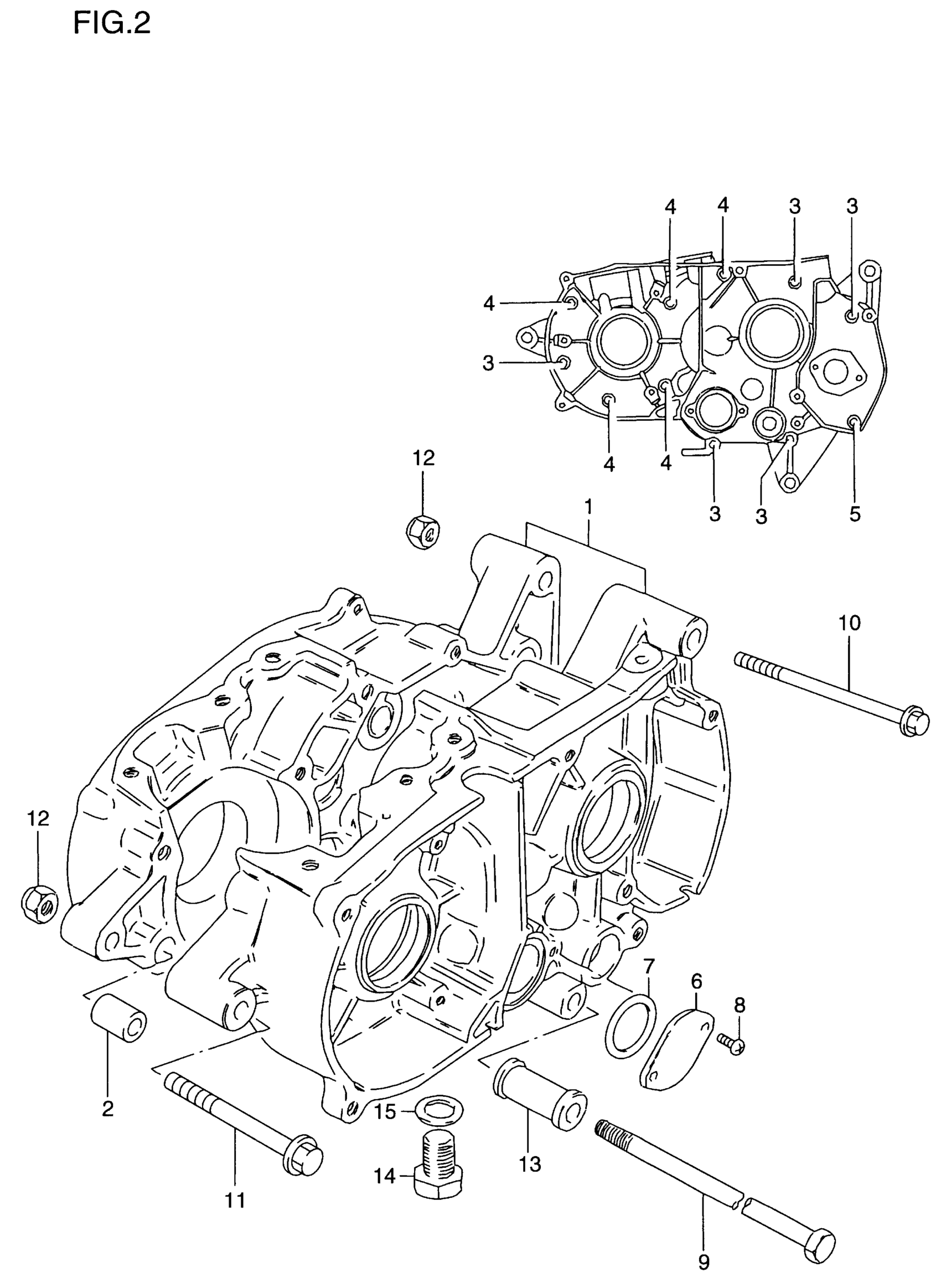

Suzuki DS80 (2000) CRANKCASE Diagram
