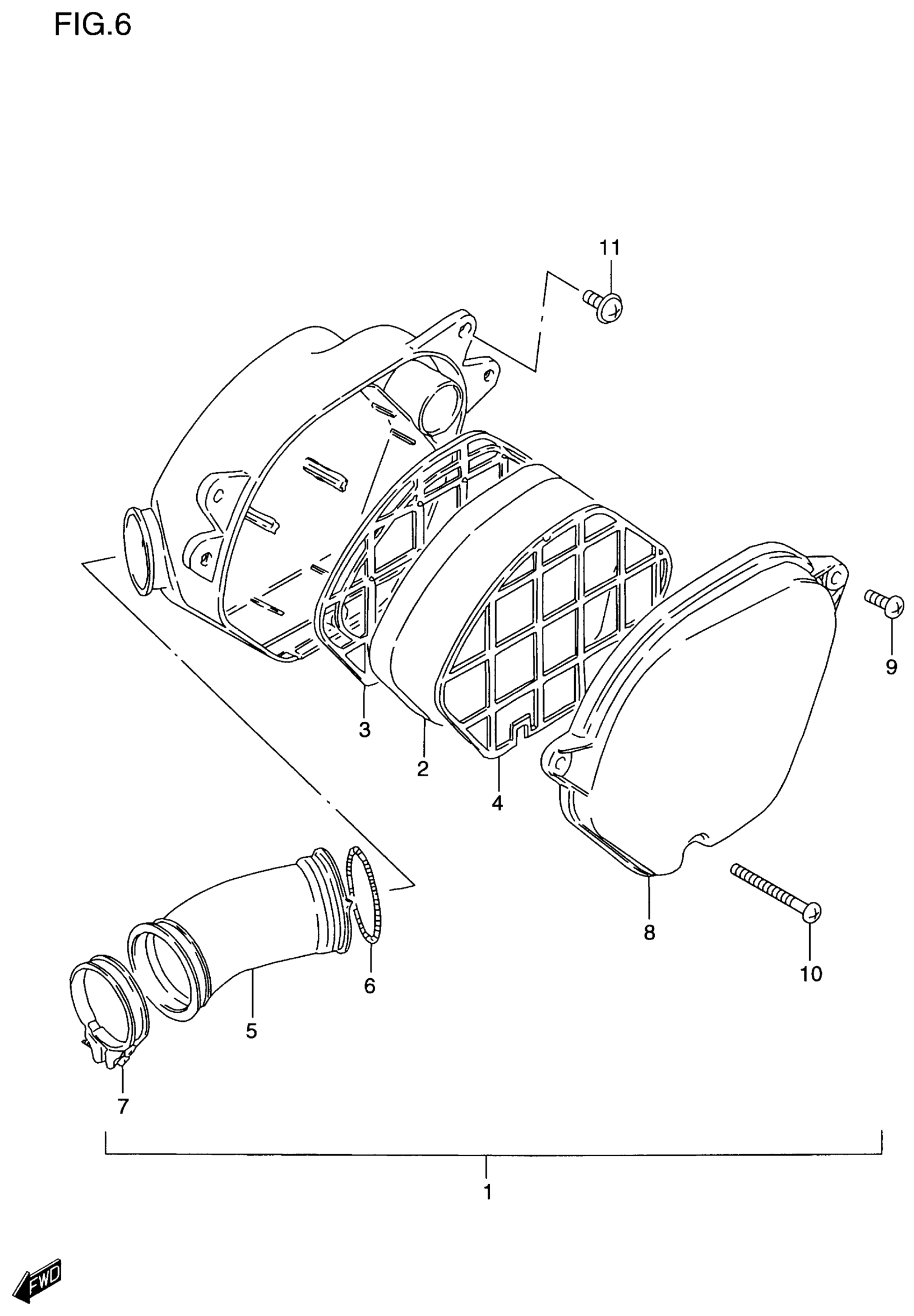

Suzuki DS80 (2000) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 10

13700-03400

$112.88

2

FILTER

13781-03400

$7.32

3

HOLDER, INNER

13791-03400

$6.41

4

HOLDER, OUTER

13792-03400

$5.96

5

TUBE, OUTLET

13881-03400

$17.49

6

CLAMP, CLEANER SIDE

13826-17300

$4.46

7

CLAMP, CARBURETOR SIDE

09402-48208

$4.32

8

CAP

13740-03400

$20.82

9

SCREW

02142-05127

$2.03

10

SCREW This part replaces 02142-05553.

02142-0555B

$2.44

11

SCREW (6X16)

09136-06017

$2.39
